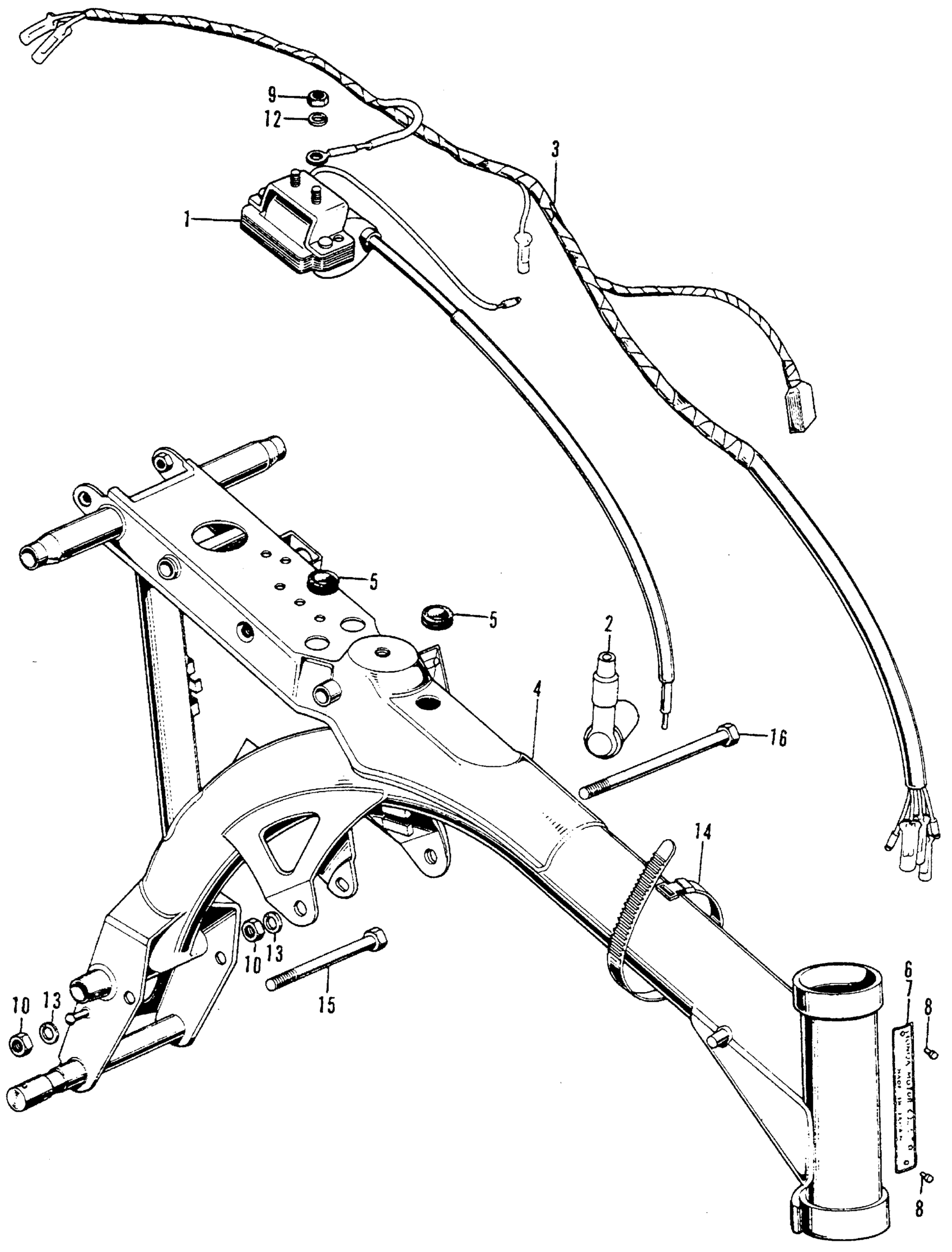

Honda Z50AA (76) MINI TRAIL 50, JPN, VIN# Z50A-6100001 FRAME + WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., IGNITION

30500-120-005

Unavailable

1

COIL ASSY., IGNITION This part replaces 30500-120-003.

30500-120-005

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

Unavailable

3

WIRE HARNESS (NOT AVAILABLE)

32100-130-720

Unavailable

4

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-120-710ZA

Unavailable

5

GROMMET, FEED TUBE

50163-063-000

$3.68

7

PLATE, NAME (NOT AVAILABLE)

87125-395-670

Unavailable

8

SCREW, RIVET (1.5X5) (NOT AVAILABLE)

90841-001-000

$1.40

9

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.31

9

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.31

9

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.31

9

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

9

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.31

9

NUT, HEX. (6MM)

94001-06200-0S

$1.31

9

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.31

10

NUT, HEX. (8MM)

94030-08000

Unavailable

11

WASHER, PLAIN (8MM)

94101-08000

Unavailable

12

WASHER, SPRING (6MM)

94111-06000

$0.87

13

WASHER, SPRING (8MM)

94111-08000

Unavailable

14

BAND B3, CABLE HARNESS

95014-62300

$2.07

15

BOLT, HEX. (8X98) (NOT AVAILABLE) This part replaces 95300-08098.

95300-08098-00

Unavailable

15

BOLT, HEX. (8X98)

95300-08098-00

Unavailable

16

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.80

16

BOLT, HEX. (8X111)

95300-08111-00

$2.80
