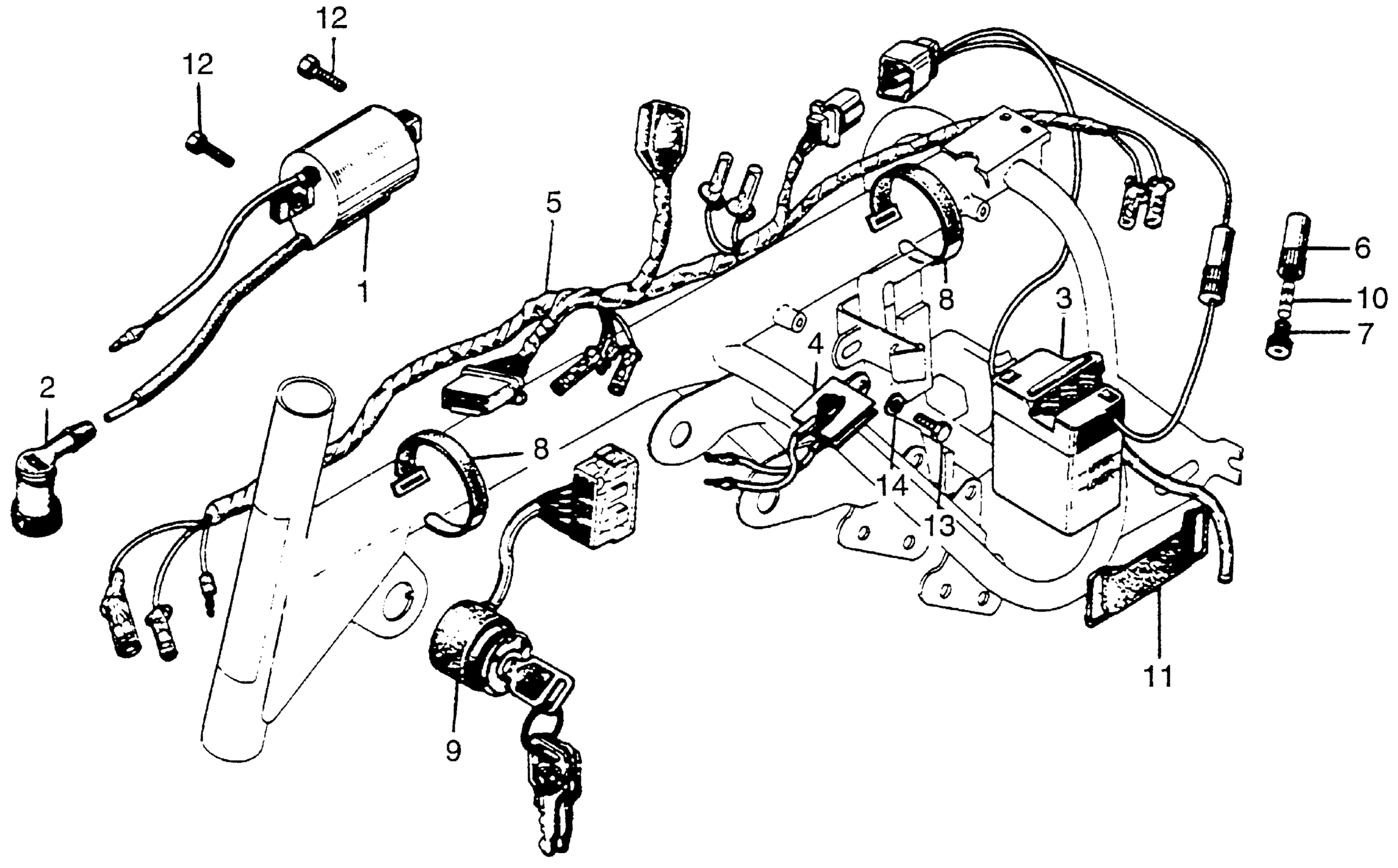

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 WIRE HARNESS@BATTERY Diagram

#

Description

Price

1

COIL ASSY., IGNITION (NOT AVAILABLE) | Use from Frame SN 183603.

30400-045-035

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

Unavailable

8

BAND A3, WIRE | Use up to Frame SN 120087. This part replaces 32161-001-000.

95014-61300

$1.82

8

BAND A3, CABLE | Use up to Frame SN 120087.

95014-61300

$1.82

9

SWITCH ASSY., STARTING (NOT AVAILABLE)

36100-045-671

Unavailable

12

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.18

12

BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

92101-05020-0A

$1.18

12

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.18
