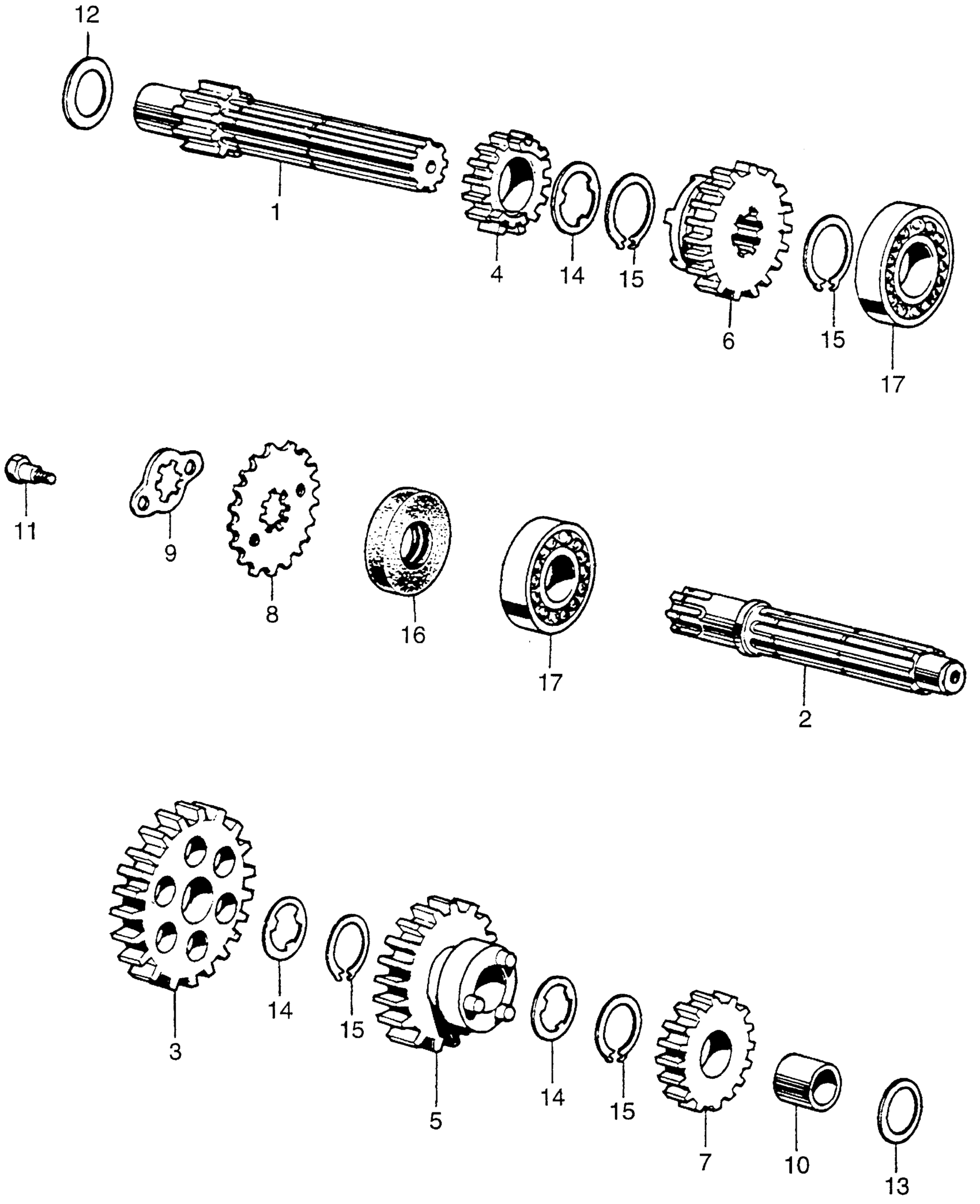

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-041-040.

23221-041-050

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

3

GEAR, COUNTERSHAFT LOW (35T) (NOT AVAILABLE) This part replaces 23421-076-000.

23421-076-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (35T) (NOT AVAILABLE)

23421-076-010

Unavailable

4

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23431-041-040

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-041-060.

23441-086-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-086-000.

23441-086-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)

23441-086-010

Unavailable

6

GEAR, MAINSHAFT TOP (21T) (NOT AVAILABLE)

23471-041-040

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-041-020.

23481-086-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-086-000.

23481-086-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) (NOT AVAILABLE)

23481-086-010

Unavailable

8

SPROCKET, DRIVE (13T) | Use up to Engine SN 106900.

23800-045-000

Unavailable

8

SPROCKET, DRIVE (12T) (NOT AVAILABLE) | Use from Engine SN 106901.

23800-045-670

Unavailable

9

PLATE, DRIVE SPROCKET FIXING | Use up to Engine SN 106900. This part replaces 23802-041-000.

23802-041-010

$2.02

9

PLATE, DRIVE SPROCKET FIXING | Use up to Engine SN 106900.

23802-041-010

$2.02

9

PLATE, DRIVE SPROCKET FIXING | Use from Engine SN 106901.

23802-045-670

$2.33

9

PLATE, DRIVE SPROCKET FIXING | Use from Engine SN 106901. This part replaces 23802-065-305.

23802-045-670

$2.33

10

COLLAR, GEAR This part replaces 23911-041-010.

23911-041-020

Unavailable

10

COLLAR, GEAR (SOURCE: VINTAGE PARTS INC.)

23911-041-020

Unavailable

11

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

12

WASHER, THRUST (14MM)

90451-001-000

$3.67

13

WASHER (13.5MM) (NOT AVAILABLE)

90451-035-000

Unavailable

14

WASHER, SPLINE (17MM) This part replaces 90461-001-000.

90461-035-000

$2.57

14

WASHER, SPLINE (17MM)

90461-035-000

$2.57

15

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

16

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

16

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

17

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

17

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
