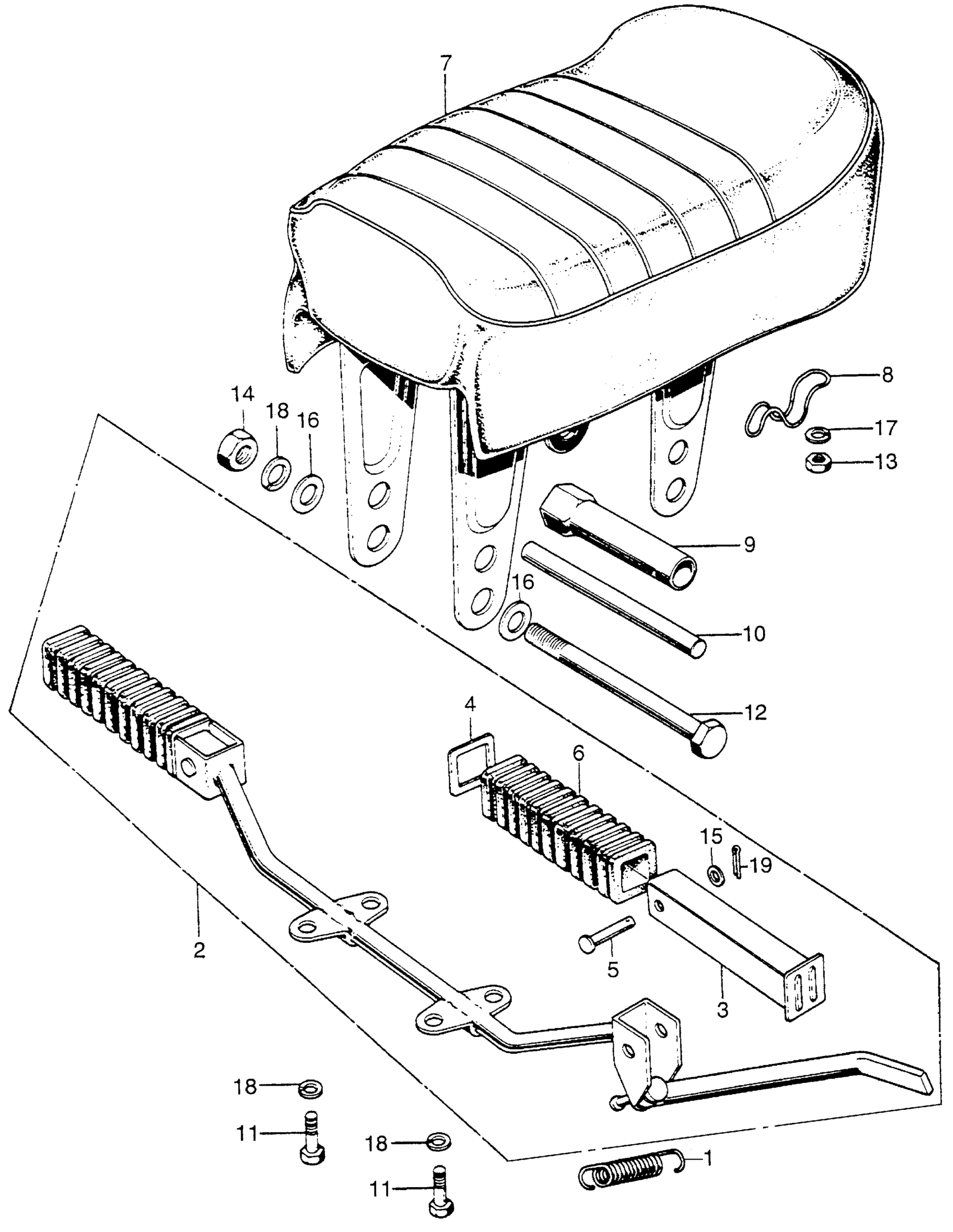

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 SEAT@STEP BAR Diagram

#

Description
Price

1

SPRING, SIDE STAND (NOT AVAILABLE)

50542-045-010

Unavailable

2

BAR, STEP

50610-045-670

$166.92

3

BAR B, PILLION STEP This part replaces 50701-024-010.

95015-62000

$30.68

3

BAR B, PILLION STEP This part replaces 50715-283-000.

95015-62000

$30.68

3

BAR B, PILLION STEP

95015-62000

$30.68

4

WASHER, FOOTPEG This part replaces 50712-024-000.

95015-91000

$1.31

4

WASHER, FOOTPEG

95015-91000

$1.31

5

PIN A, PILLION STEP This part replaces 50715-024-000.

95015-81000

$2.21

5

PIN A, PILLION STEP

95015-81000

$2.21

6

RUBBER, PILLION STEP This part replaces 50731-024-000.

95011-31000

$7.16

6

RUBBER, PILLION STEP

95011-31000

$7.16

7

SEAT ASSY. *NH1L* (BLACK) | Use up to Frame SN 157859. This part replaces 77100-045-670A.

77100-045-671A

$314.31

7

SEAT ASSY. *NH1L* (BLACK) | Use up to Frame SN 157859.

77100-045-671A

$314.31

8

PLATE, PLUG WRENCH SETTING (NOT AVAILABLE) This part replaces 77135-045-671.

77136-170-000

Unavailable

9

WRENCH, SPARK PLUG This part replaces 89216-045-000.

89216-045-010

$6.26

9

WRENCH, SPARK PLUG

89216-045-010

$6.26

9

WRENCH, SPARK PLUG | Use from Frame SN 108296. This part replaces 89216-045-670.

89216-045-010

$6.26

10

BAR, HANDLE | Use from Frame SN 108296.

89217-045-670

$4.94

11

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

11

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

12

BOLT, HEX. (8X112) This part replaces 92000-08112.

92101-08112-0A

Unavailable

12

BOLT, HEX. (8X112) This part replaces 92000-08112-0A.

92101-08112-0A

Unavailable

12

BOLT, HEX. (8X112) This part replaces 92020-08111.

92101-08112-0A

Unavailable

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (8MM) | Use up to Frame SN 108295. This part replaces 94001-08000.

94030-08000

$1.49

14

NUT, HEX. (8MM) | Use up to Frame SN 108295.

94030-08000

$1.49

14

NUT, HEX. (8MM) | Use up to Frame SN 108295. This part replaces 94030-08200.

94030-08000

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49
