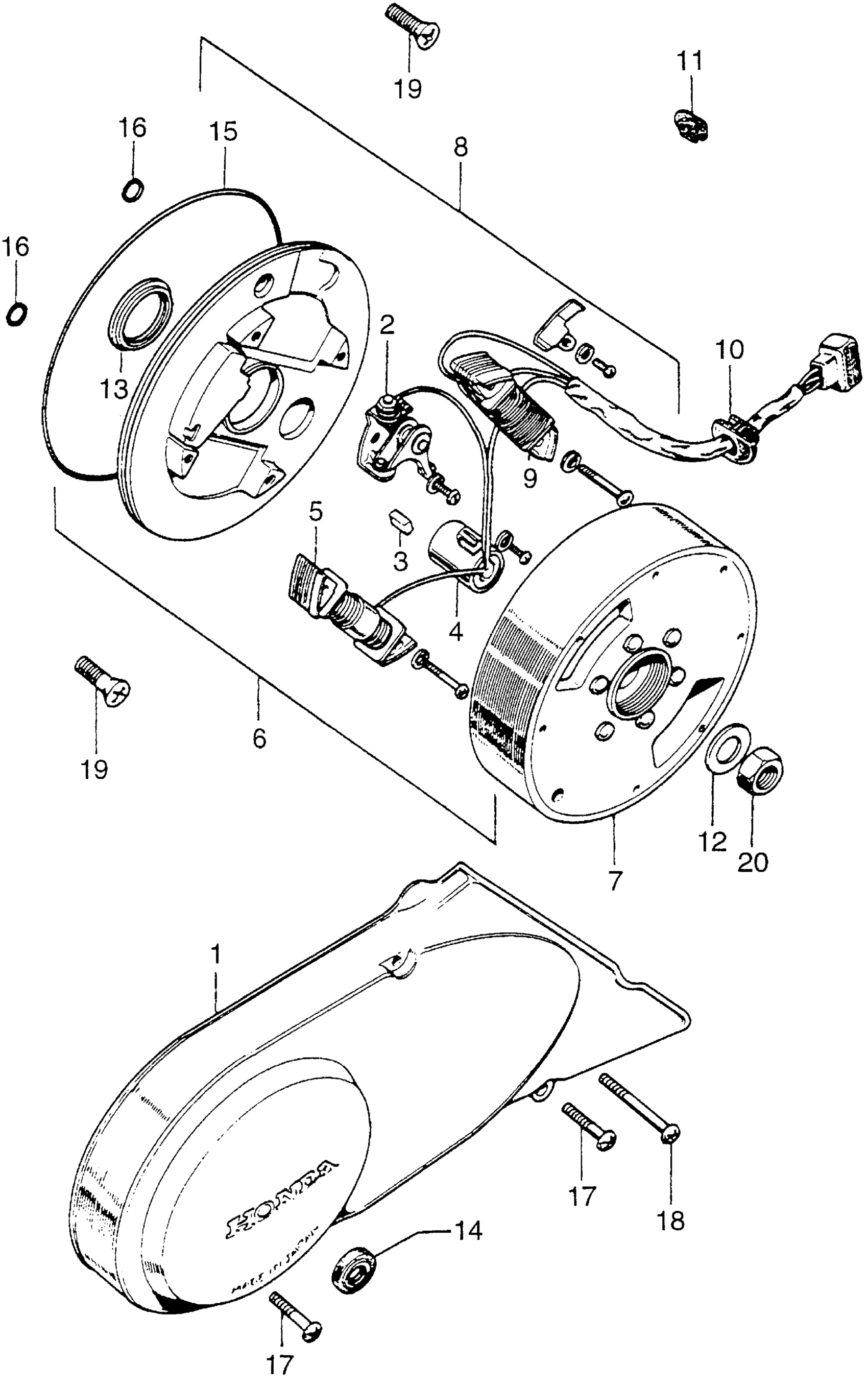

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 LEFT CRANKCASE COVER @ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-045-020.

11341-120-020

$79.12

1

COVER, L. CRANKCASE This part replaces 11341-045-030.

11341-120-020

$79.12

1

COVER, L. CRANKCASE This part replaces 11341-120-010.

11341-120-020

$79.12

1

COVER, L. CRANKCASE

11341-120-020

$79.12

2

POINTS (HITACHI) POINTS (DENSO)

30202-041-015

$29.26

3

FELT, OIL (HITACHI)

30205-041-005

$3.83

4

CONDENSER (HITACHI)

30250-041-005

$24.74

5

COIL, PRIMARY (NOT AVAILABLE)

30540-045-670

Unavailable

6

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-045-670.

31100-045-672

Unavailable

6

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-045-672

Unavailable

7

FLYWHEEL (HITACHI) (NOT AVAILABLE) | Use up to Engine SN 183602. This part replaces 31121-045-005.

31121-045-015

Unavailable

7

FLYWHEEL (HITACHI) (NOT AVAILABLE)

31121-045-015

Unavailable

8

STATOR ASSY. (NOT AVAILABLE)

31141-045-670

Unavailable

10

GROMMET, WIRE (NOT AVAILABLE)

32971-045-670

Unavailable

11

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-035-000

Unavailable

12

WASHER, MAGNET FIXING

90426-035-000

$2.57

13

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5) This part replaces 91202-035-000.

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$6.14

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

15

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

15

O-RING (107X2) (ARAI)

91301-035-003

$7.05

16

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

16

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

17

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

17

SCREW, PAN (6X20) BOLT, HEX. (6X20)

93500-06020-0A

$1.49

18

SCREW, PAN (6X35)

93500-06035-0A

$1.49

18

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

19

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

19

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

20

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

20

NUT, HEX. (10MM)

94030-10000

$1.49

20

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49
