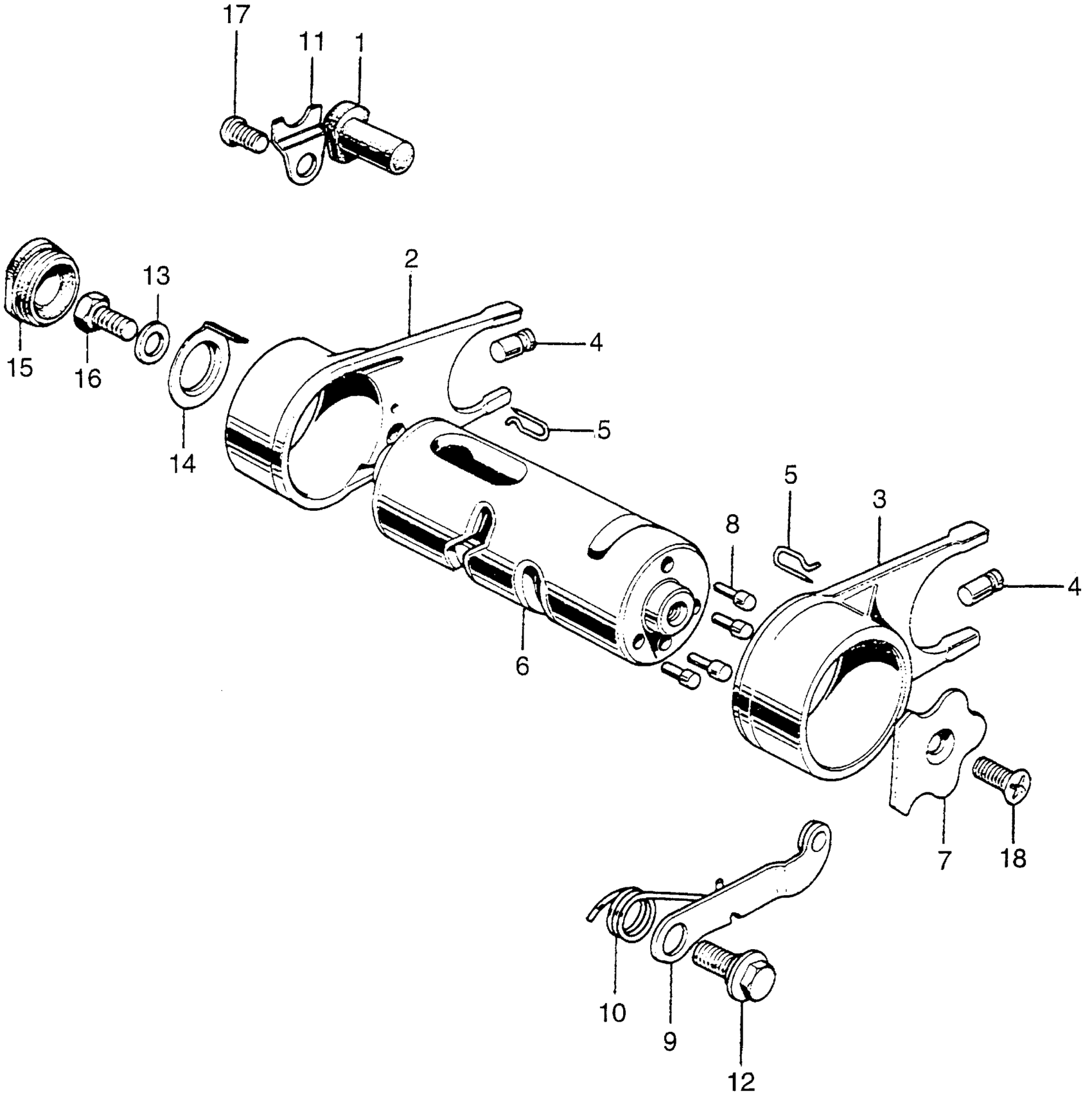

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 GEARSHIFT DRUM Diagram

#

Description
Price

1

PLUG, SEALING (10MM) (NOT AVAILABLE) | Use up to Engine SN 103922.

11926-020-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-041-000.

24211-087-303

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24211-087-303

Unavailable

3

FORK, R. GEARSHIFT This part replaces 24221-041-000.

24221-041-010

$84.39

3

FORK, R. GEARSHIFT

24221-041-010

$84.39

4

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

4

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

5

CLIP, GEARSHIFT FORK GUIDE PIN

24263-028-000

$2.66

6

DRUM, GEARSHIFT This part replaces 24301-045-670.

24301-045-673

Unavailable

6

DRUM, GEARSHIFT This part replaces 24301-045-671.

24301-045-673

Unavailable

6

DRUM, GEARSHIFT This part replaces 24301-045-672.

24301-045-673

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-045-673

Unavailable

7

PLATE, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24411-041-020

Unavailable

8

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

9

STOPPER, GEARSHIFT DRUM This part replaces 24430-041-000.

24430-041-010

Unavailable

9

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-GB2-000.

24435-GB2-710

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24435-GB2-710

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-040-000.

24435-GB2-710

Unavailable

11

PLATE, CONTACT FIXING | Use up to Engine SN 103922.

35755-001-020

Unavailable

12

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

12

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

13

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

14

WASHER (13.2MM)

90484-045-010

$4.00

15

PLUG, RUBBER (19MM)

90801-035-000

$2.92

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

SCREW, PAN (6X12) | Use up to Engine SN 103922. This part replaces 93500-06012.

93500-06012-0A

$1.49

17

SCREW, PAN (6X12) | Use up to Engine SN 103922.

93500-06012-0A

$1.49

17

SCREW, PAN (6X12) | Use up to Engine SN 103922. This part replaces 93500-06012-00.

93500-06012-0A

$1.49

18

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

18

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49
