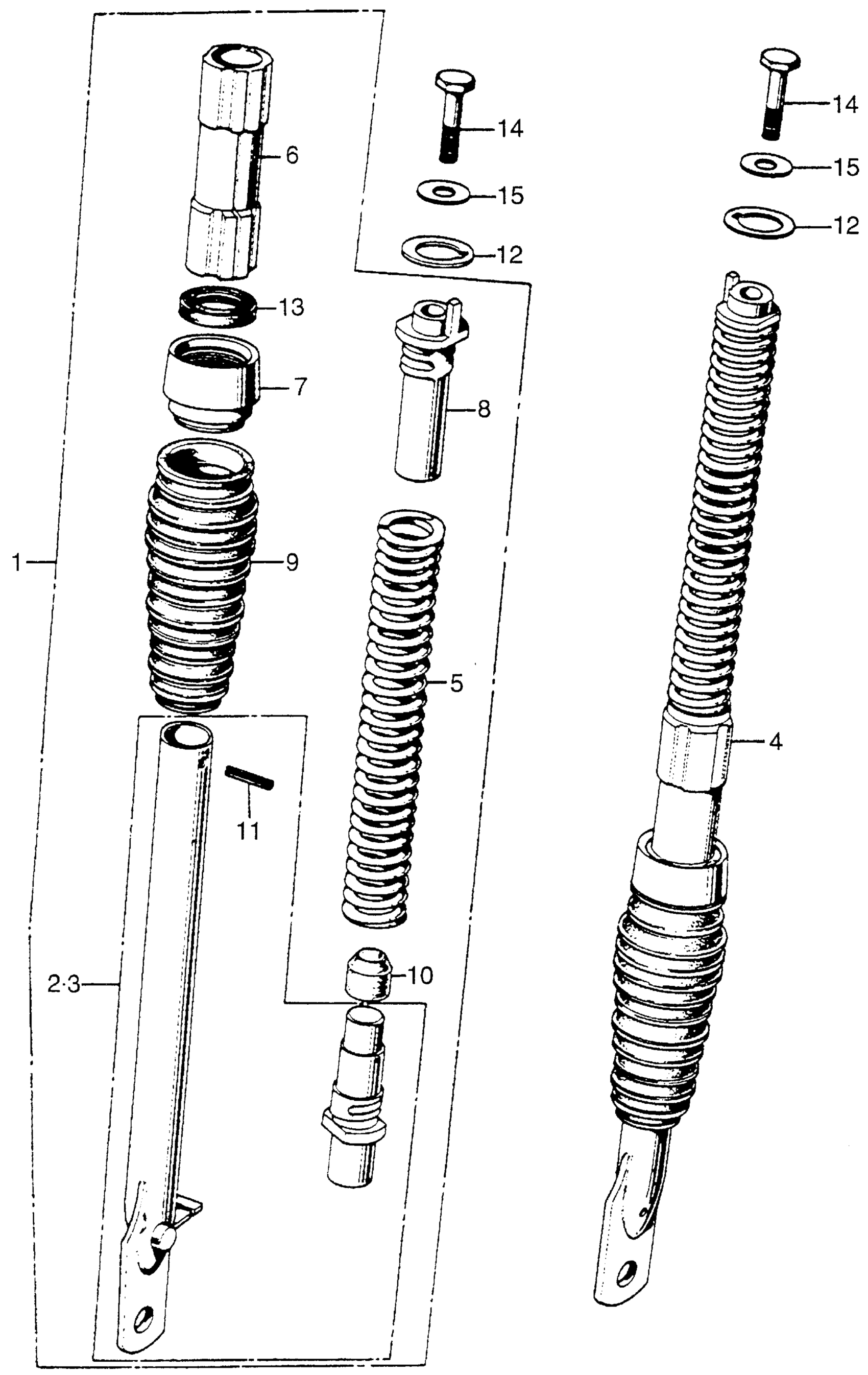

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-045-670

Unavailable

2

PIPE, R. FR. FORK SLIDE HALF (NOT AVAILABLE)

51450-045-670

Unavailable

3

PIPE, L. FR. FORK SLIDE HALF (NOT AVAILABLE)

51460-045-670

Unavailable

4

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-045-670

Unavailable

5

SPRING, FR. FORK (NOT AVAILABLE)

51501-045-670

Unavailable

6

GUIDE, FR. FORK PIPE

51502-045-670

$16.83

7

CAP, FORK PIPE GUIDE This part replaces 51503-064-010.

51503-098-000

Unavailable

7

CAP, FORK PIPE GUIDE

51503-098-000

Unavailable

8

HOLDER (UPPER) (NOT AVAILABLE)

51504-064-020

Unavailable

9

BOOT, FR. FORK *NH1* (BLACK)

51505-064-010B

$26.44

10

RUBBER, FR. FORK STOPPER

51506-064-020

$2.92

11

PIN, SPRING

51526-064-000

Unavailable

12

WASHER, SEAT (NOT AVAILABLE) | Use up to Frame SN 174447.

51620-045-670

Unavailable

13

OIL SEAL (20.7X30X7)

90755-064-013

$6.34

14

BOLT, HEX. (10X40) | Use up to Frame SN 108295. This part replaces 92000-10040-0A.

92101-10040-0A

$2.84

14

BOLT, HEX. (10X40) | Use up to Frame SN 108295.

92101-10040-0A

$2.84

14

BOLT, HEX. (10X40) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 108296. This part replaces 93000-10040-0A.

93101-10040-0A

Unavailable

15

WASHER, PLAIN (10MM)

94101-10000

$1.49
