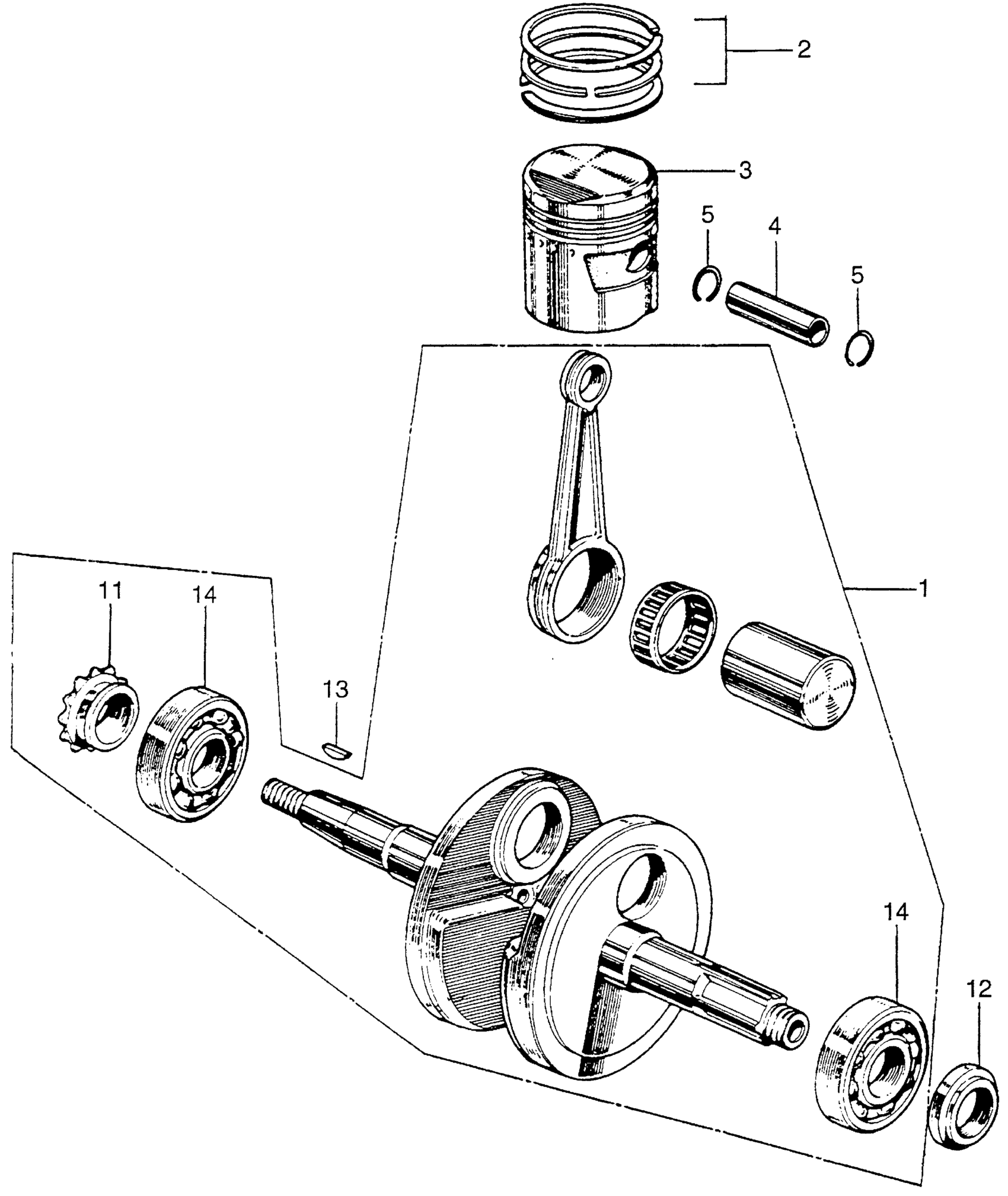

Honda Z50AA (69) MOTORCYCLE, JPN, VIN# Z50A-100001 TO Z50A-120087 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE) This part replaces 13000-041-030.

13000-098-000

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13010-036-000.

13010-036-014

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13010-036-013.

13010-036-014

Unavailable

2

RING SET, PISTON (STD) (RIKEN)

13010-036-014

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13010-036-015.

13010-036-014

Unavailable

2

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional). This part replaces 13020-036-000.

13020-036-014

Unavailable

2

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional). This part replaces 13020-036-013.

13020-036-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) (NOT AVAILABLE) | (Optional).

13020-036-014

Unavailable

2

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional). This part replaces 13020-036-015.

13020-036-014

Unavailable

2

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional). This part replaces 13030-036-000.

13030-036-014

Unavailable

2

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional). This part replaces 13030-036-013.

13030-036-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) (NOT AVAILABLE) | (Optional).

13030-036-014

Unavailable

2

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional). This part replaces 13030-036-015.

13030-036-014

Unavailable

2

RING SET, PISTON (0.75) (RIKEN) (NOT AVAILABLE) | (Optional). This part replaces 13040-036-000.

13040-036-014

Unavailable

2

RING SET, PISTON (0.75) (RIKEN) (NOT AVAILABLE) | (Optional). This part replaces 13040-036-013.

13040-036-014

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (RIKEN) (NOT AVAILABLE) | (Optional).

13040-036-014

Unavailable

2

RING SET, PISTON (0.75) (RIKEN) (NOT AVAILABLE) | (Optional). This part replaces 13040-036-015.

13040-036-014

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-036-000.

13050-036-014

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) (NOT AVAILABLE) | (Optional).

13050-036-014

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-036-015.

13050-036-014

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-036-010

Unavailable

3

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-036-010

Unavailable

3

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-036-010

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-036-010

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-036-010

Unavailable

4

PIN, PISTON

13111-GB2-000

$9.19

4

PIN, PISTON This part replaces 13111-036-000.

13111-GB2-000

$9.19

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

7

BEARING, CONNECTING ROD

13211-035-000

Unavailable

9

CRANKSHAFT, L. (NOT AVAILABLE)

13321-041-020

Unavailable

10

PIN, CRANK This part replaces 13381-035-010.

13381-GB1-900

Unavailable

11

SPROCKET, TIMING (14T)

14311-035-000

$19.28

12

COLLAR (17MM)

22911-GB4-680

$6.74

12

COLLAR (17MM) This part replaces 22911-035-010.

22911-GB4-680

$6.74

13

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

14

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

14

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

14

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
