2025 Kawasaki Z500 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

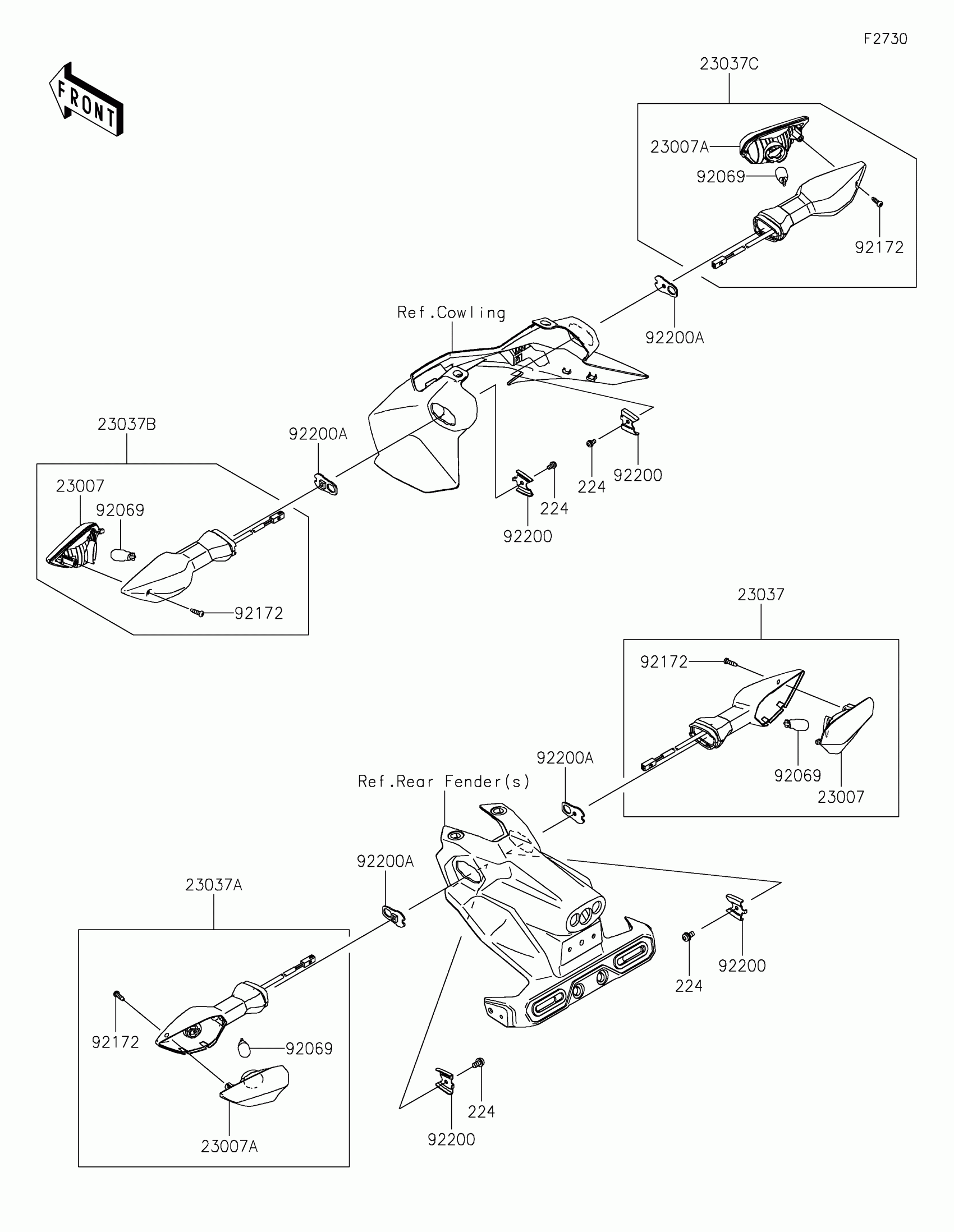

2025 Kawasaki Z500 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP

23007-0228

1

$24.02

In stock

23007A

LENS-COMP

23007-0229

1

$23.32

In stock

23037

1

$53.59

In stock

23037A

1

$53.59

In stock

23037B

1

$53.59

In stock

23037C

1

$53.59

In stock

92069

BULB,12V 10W

92069-0090

1

$4.56

In stock

92172

SCREW,4X14

92172-1117

1

$3.20

In stock

92200

WASHER

92200-0855

1
Out of stock

92200A

WASHER,NUT,4MM

92200-2222

1

$2.68

In stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
