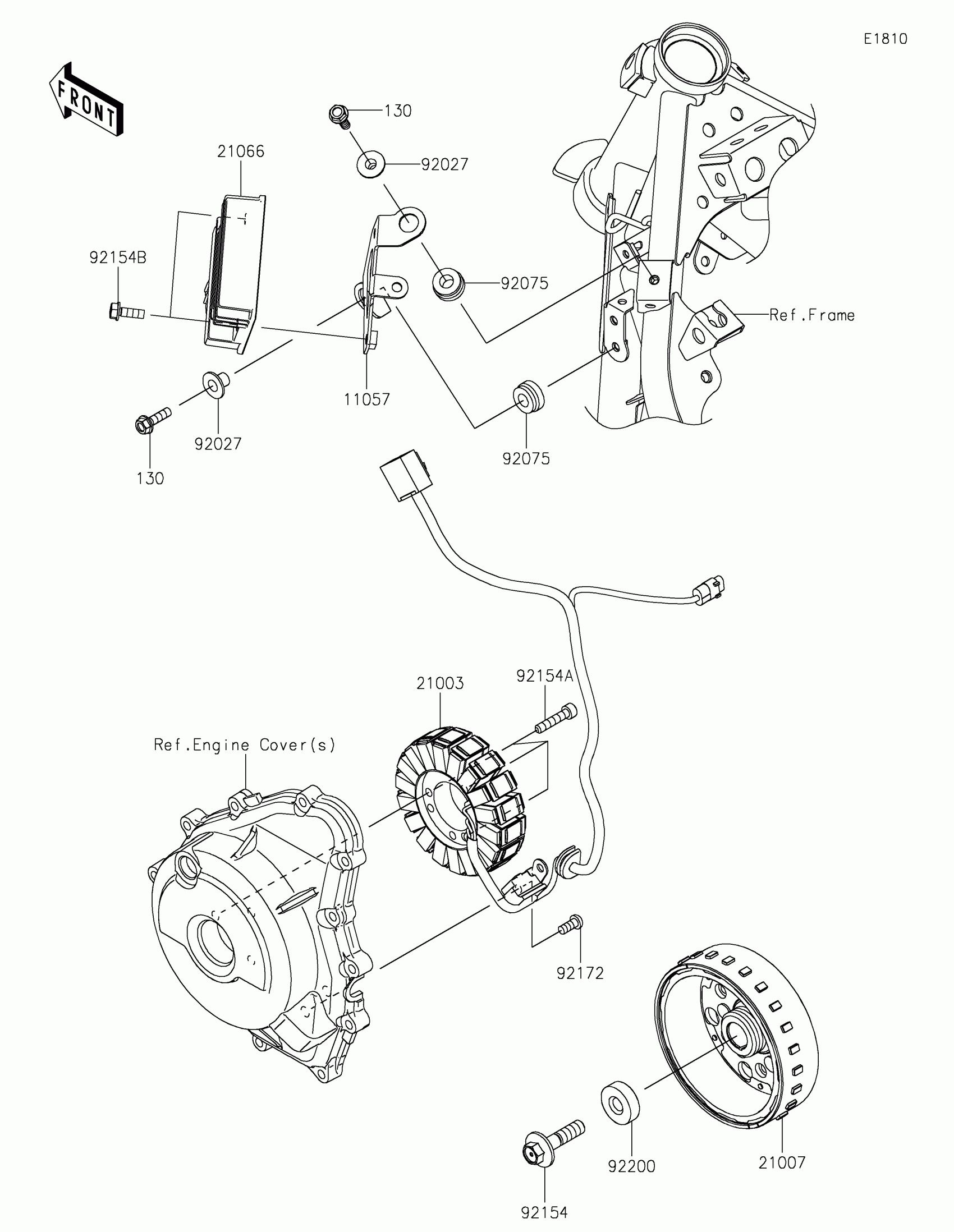

Find the part on the Generator diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,REGULATOR

11057-1977

1

$9.44

In stock

21003

STATOR

21003-0178

1

$518.75

In stock

21007

ROTOR

21007-0736

1

$555.30

In stock

21066

REGULATOR-VOLTAGE

21066-0761

1

$203.88

In stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92154

BOLT,FLANGED,10X40

92154-2341

1

$20.00

In stock

92154A

BOLT,SOCKET,6X30

92154-2820

1

$1.81

In stock

92154B

BOLT,FLANGED,6X18

92154-2896

1

$0.69

In stock

92172

SCREW,6X14

92172-1212

1

$1.27

In stock

92200

WASHER,10X30X9

92200-0790

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock
