Description

Price

13272

PLATE

13272-2558

$22.51

16014

SCREW-PILOT AIR

16014-0022

$25.16

16073

INSULATOR

16073-0866

$6.00

16126

VALVE,ISC

16126-0748

$116.43

16163

THROTTLE-ASSY

16163-1267

$713.26

21176

SENSOR,PRESSURE

21176-0906

$222.28

49033

NOZZLE-INJECTION

49033-0047

$132.97

49056

PIPE-INJECTION

49056-0050

$88.03

92005

FITTING

92005-1380

$16.65

92037

CLAMP,TUBE

92037-1124

$6.11

92055

RING-O

92055-0907

$8.58

92055A

RING-O,REGULATOR-FUEL

92055-2187

$3.00

92145

SPRING

92145-1826

$5.74

92161

DAMPER

92161-2438

$1.72

92172

SCREW

92172-1257

$2.80

92192

TUBE,3.5X7.5X55

92192-1349

$13.73

92192A

TUBE

92192-1906

$27.48

92200

WASHER

92200-3807

$6.00

220

SCREW-PAN-CROS,6X12

220AA0612

$1.19

11065

CAP

11065-0072

$7.20

16163A

THROTTLE-ASSY

16163-1295

$713.26

92037

CLAMP,TUBE

92037-1124

$6.11

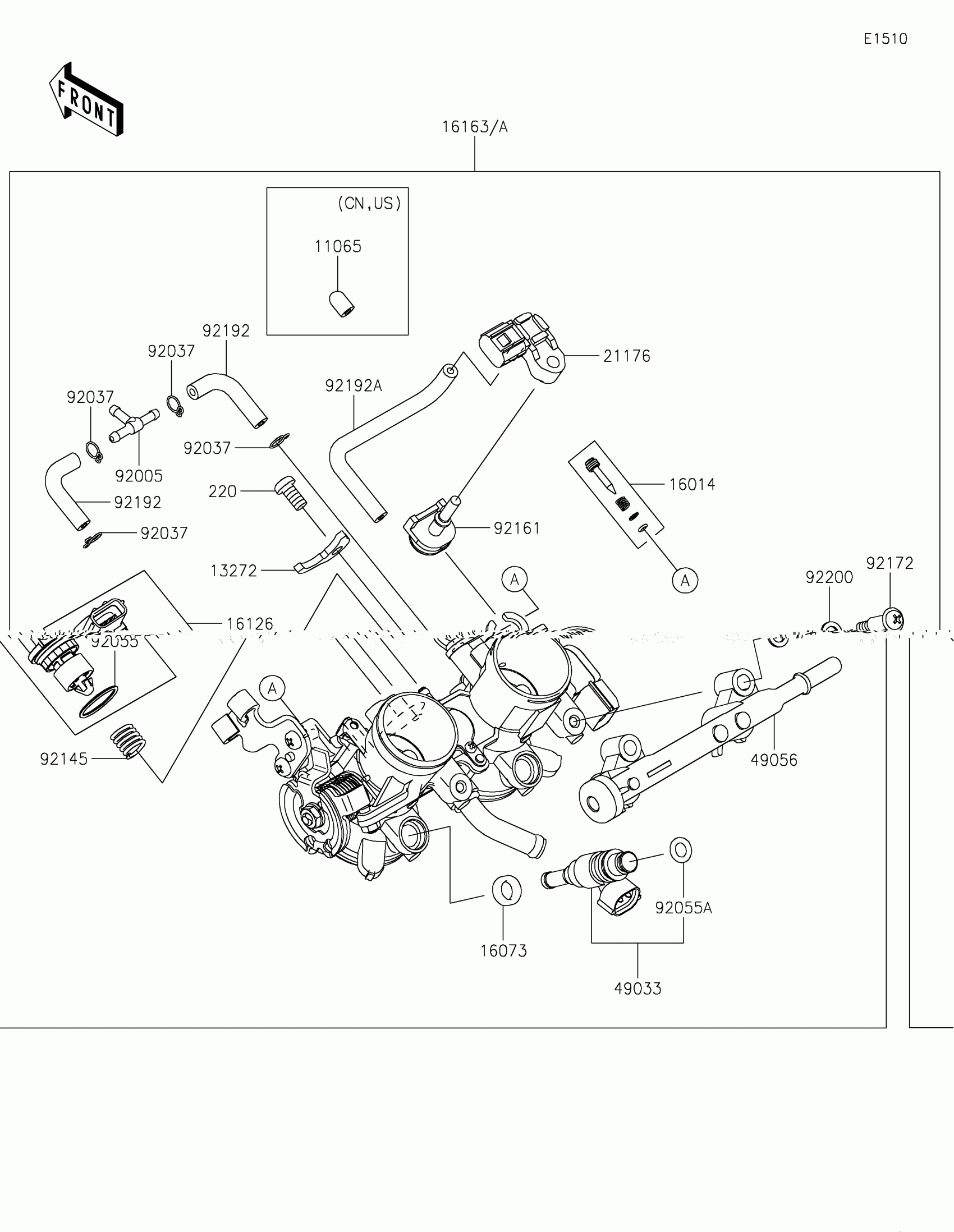

Kawasaki Z500 Throttle Diagram

PLATE

SCREW-PILOT AIR

INSULATOR

VALVE,ISC

THROTTLE-ASSY

SENSOR,PRESSURE

NOZZLE-INJECTION

PIPE-INJECTION

FITTING

CLAMP,TUBE

RING-O

RING-O,REGULATOR-FUEL

SPRING

DAMPER

SCREW

TUBE,3.5X7.5X55

TUBE

WASHER

SCREW-PAN-CROS,6X12

CAP

THROTTLE-ASSY

CLAMP,TUBE
