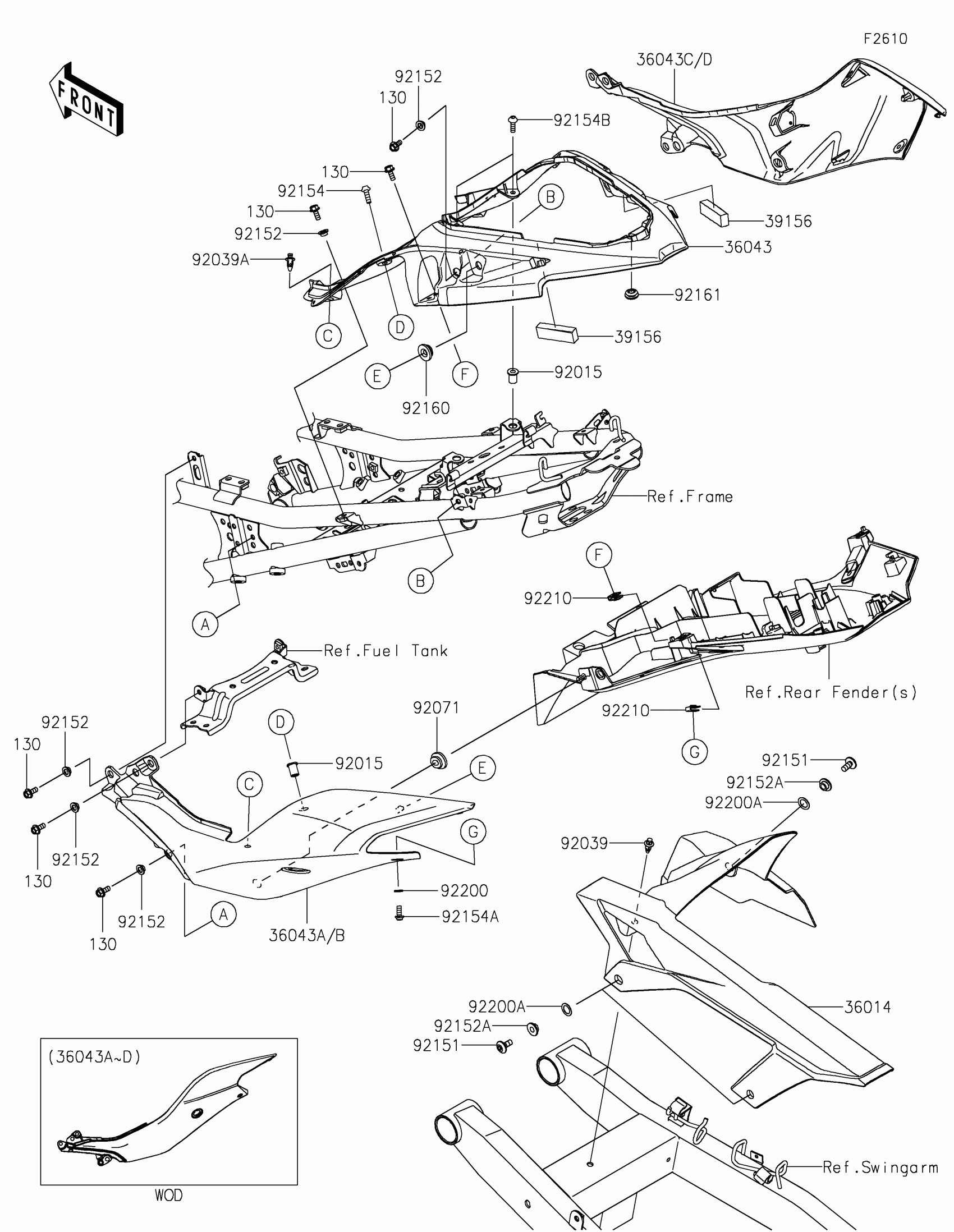

Kawasaki Z500 Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0571

$36.70

36043

COVER-TAIL,CNT

36043-0001

$101.44

36043B

COVER-TAIL,LH,M.M.G.GRAY

36043-0002-68P

$190.44

36043D

COVER-TAIL,RH,M.M.G.GRAY

36043-0003-68P

$189.72

39156

PAD,50X10X15

39156-2932

$1.32

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0060

$3.39

92039A

RIVET

92039-0709

$2.67

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,6X8X4.5

92152-2395

$1.17

92152A

COLLAR,6.5X10X5.9

92152-2486

$3.44

92154

BOLT,SOCKET,5X16

92154-1701

$1.19

92154A

BOLT,SOCKET,5X12

92154-4289

$0.95

92154B

BOLT,SOCKET,5X16

92154-4294

$2.75

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0631

$7.37

92200

WASHER,5.2X10X1

92200-2286

$0.39

92200A

WASHER,10.4X15.9X0.5

92200-2525

$0.76

92210

NUT

92210-0571

$3.52

130

BOLT-FLANGED,5X12

130BA0512

$2.22
