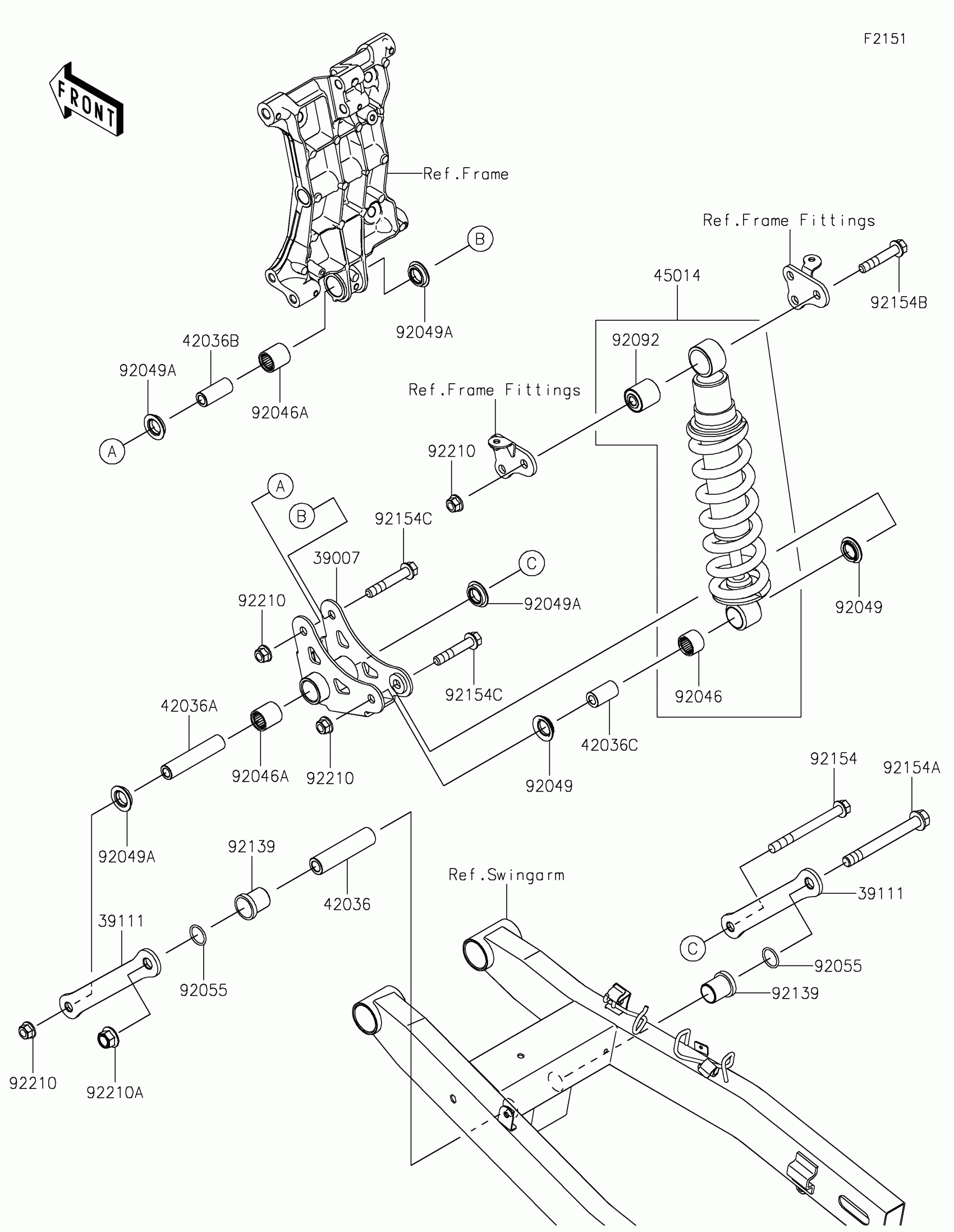

Kawasaki Z500 SE Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0512

$113.19

39111

ROD-TIE,SUSPENSION

39111-0365

$43.03

42036

SLEEVE,12.1X20X83

42036-0807

$32.76

42036A

SLEEVE,10.1X17X83

42036-0808

$31.28

42036B

SLEEVE,10.1X17X40.5

42036-0809

$17.98

42036C

SLEEVE,10.1X18X32

42036-1344

$10.83

45014

SHOCKABSORBER,BLACK+BLK

45014-0619-37S

$476.88

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL

92049-0133

$9.71

92049A

SEAL-OIL,MHA17245.7F

92049-0850

$8.61

92055

RING-O,19.8X2.2

92055-1215

$3.29

92092

BUSHING-RUBBER

92092-1058

$30.46

92139

BUSHING,20X23X29

92139-0890

$7.27

92154

BOLT,FLANGED,10X105

92154-2810

$9.90

92154A

BOLT,FLANGED,12X110

92154-2811

$14.34

92154B

BOLT,FLANGED,10X54

92154-2813

$5.34

92154C

BOLT,FLANGED,10X60

92154-3771

$4.80

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$4.67
