2025 Kawasaki Z500 Se Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

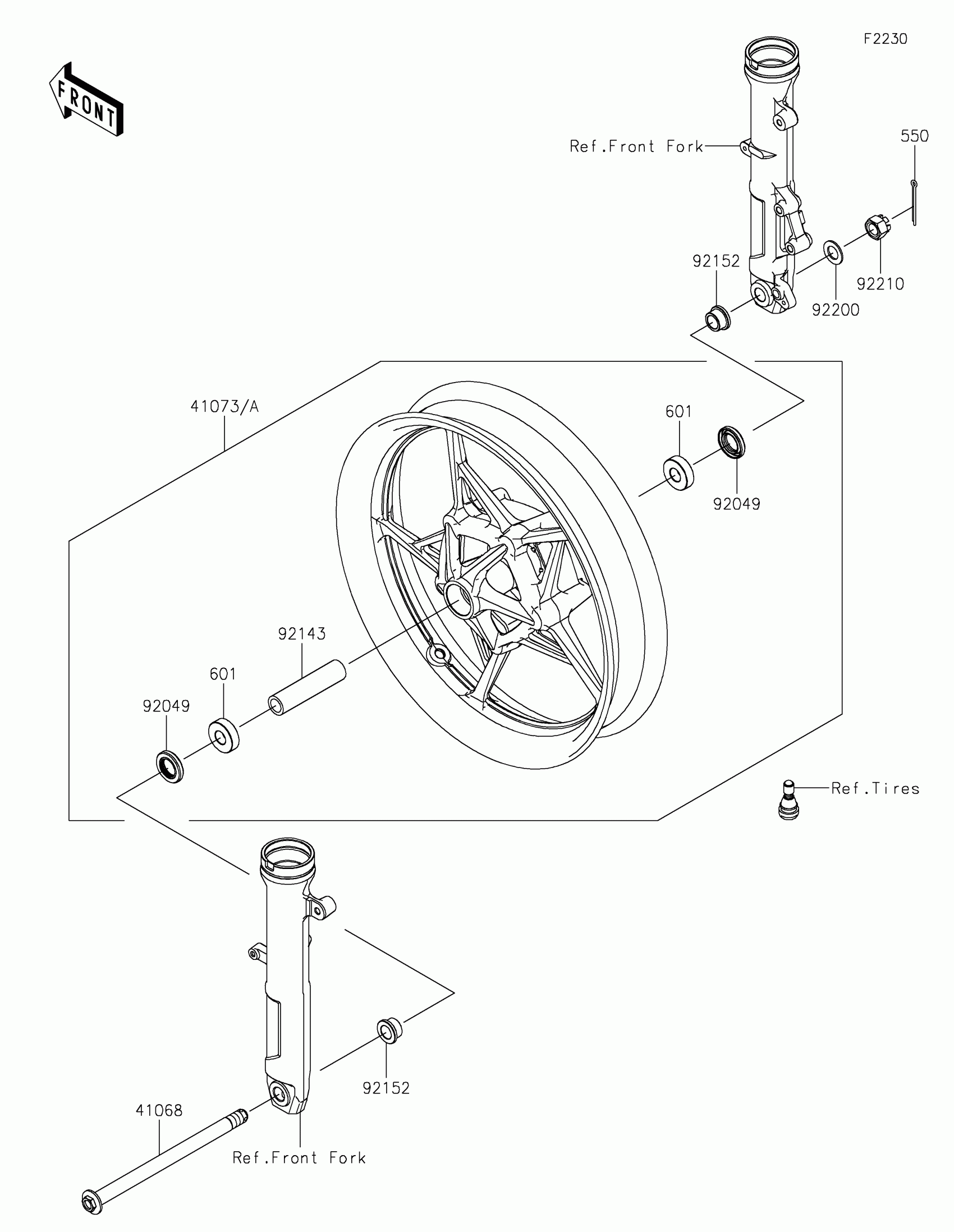

2025 Kawasaki Z500 Se Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR

41068-0643

1

$72.51

In stock

41073A

WHEEL-ASSY,FR,N.F.M.RED

41073-0752-63D

1

$791.16

In stock

92049

SEAL-OIL,23X40X7

92049-0801

1

$5.11

In stock

92143

COLLAR,17.2X25X105

92143-1124

1

$15.20

In stock

92152

COLLAR,17X30X15.5

92152-2386

1

$11.76

In stock

92200

WASHER,17.3X30X2

92200-1916

1

$1.10

In stock

92210

NUT,CASTLE,16X19

92210-1585

1

$5.25

In stock

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

601

1

$17.81

In stock
