Description

Price

11057

BRACKET,COVER FIX

11057-1241

$17.04

11058

BRACKET,SEAT COVER

11058-1212

$2.08

32046

BRACKET-SEAT

32046-0423

$12.32

39156

PAD,35X75X1

39156-2383

$3.89

39156A

PAD,36X21X2

39156-2882

$1.46

39156B

PAD,18X10X2

39156-2952

$1.06

53003

LEATHER,BLACK

53003-0682-MA

$123.20

53003A

LEATHER,BLACK

53003-0686-MA

$88.94

53044

TRIM,L=20

53044-0021

$3.39

53065

COVER SEAT,M.F.S.BLACK

53065-0080-739

$159.07

53066

SEAT-ASSY,FR,BLACK

53066-0896-MA

$312.02

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0898-12Y

$223.14

92161

DAMPER,15X21X5.5

92161-1472

$3.02

92161A

DAMPER,9.5X18X6

92161-1473

$1.63

92161B

DAMPER,COVER SEAT

92161-2525

$39.36

92161C

DAMPER

92161-2640

$9.23

92172

SCREW,5X12

92172-0821

$0.85

92210

NUT,FLANGED,6MM

92210-0368

$1.34

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X25

130CC0625

$1.42

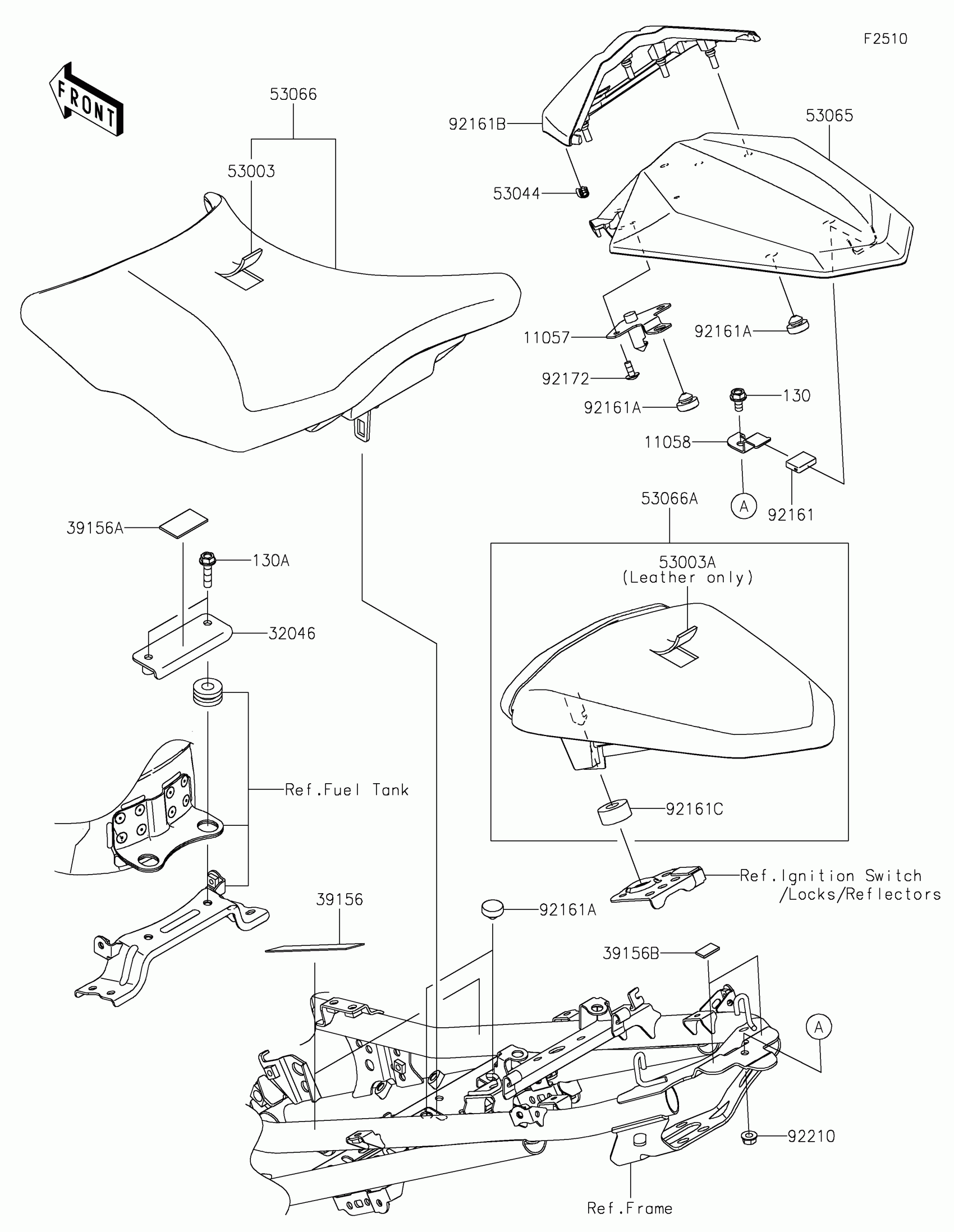

Kawasaki Z500 SE Seat Diagram

BRACKET,COVER FIX

BRACKET,SEAT COVER

BRACKET-SEAT

PAD,35X75X1

PAD,36X21X2

PAD,18X10X2

LEATHER,BLACK

LEATHER,BLACK

TRIM,L=20

COVER SEAT,M.F.S.BLACK

SEAT-ASSY,FR,BLACK

SEAT-ASSY,RR,BLACK+BLK

DAMPER,15X21X5.5

DAMPER,9.5X18X6

DAMPER,COVER SEAT

DAMPER

SCREW,5X12

NUT,FLANGED,6MM

BOLT-FLANGED,6X12

BOLT-FLANGED,6X25
