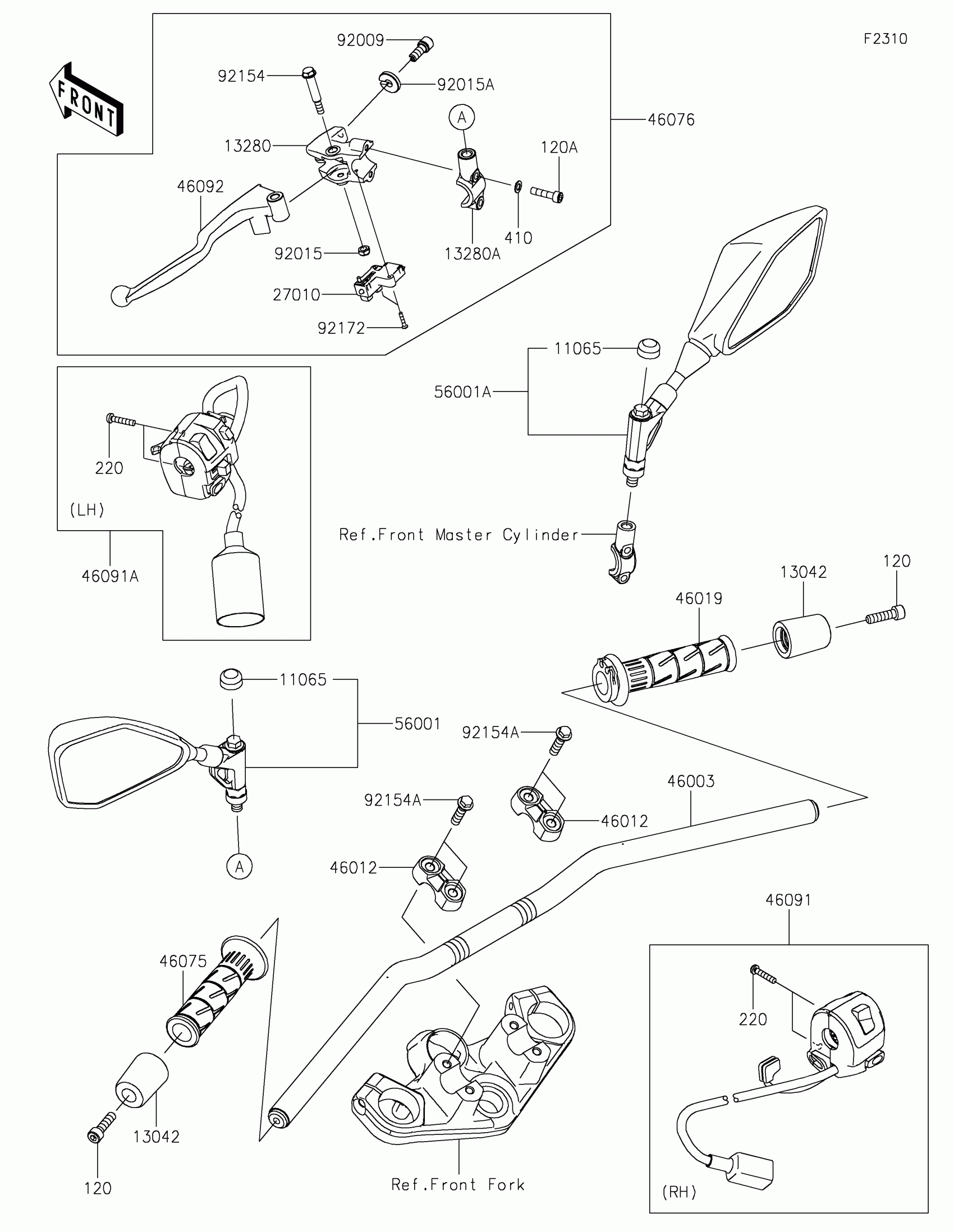

Kawasaki Z500 SE Handlebar Diagram
#
Description
Price
11065
CAP,MIRROR
11065-1488
$1.70
13042
WEIGHT,HANDLE
13042-5002
$51.69
13280
HOLDER,LEVER
13280-0929
$40.04
13280A
HOLDER,MIRROR
13280-0930
$21.13
27010
SWITCH,CLUTCH
27010-0729
$32.97
46003
HANDLE
46003-0772
$126.58
46012
HOLDER-HANDLE,UPP
46012-0391
$17.30
46019
GRIP-ASSY,THROTTLE
46019-0060
$32.34
46075
GRIP,HANDLE,LH
46075-0564
$20.01
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0193
$67.67
46091
HOUSING-ASSY-CONTROL,RH
46091-0432
$143.70
46091A
HOUSING-ASSY-CONTROL,LH
46091-0650
$184.27
46092
LEVER-GRIP,CLUTCH
46092-0583
$27.16
56001
MIRROR-ASSY,LH
56001-0453
$105.96
56001A
MIRROR-ASSY,RH
56001-0454
$105.96
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92154
BOLT,FLANGED,6X44
92154-2331
$7.59
92154A
BOLT,FLANGED,8X30
92154-3840
$2.95
92172
SCREW,3X16
92172-0183
$2.15
120
BOLT-SOCKET,8X30
120CA0830
$2.80
120A
BOLT-SOCKET,6X25
120CB0625
$2.62
220
SCREW-PAN-CROS,5X25
220AB0525
$3.52
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
