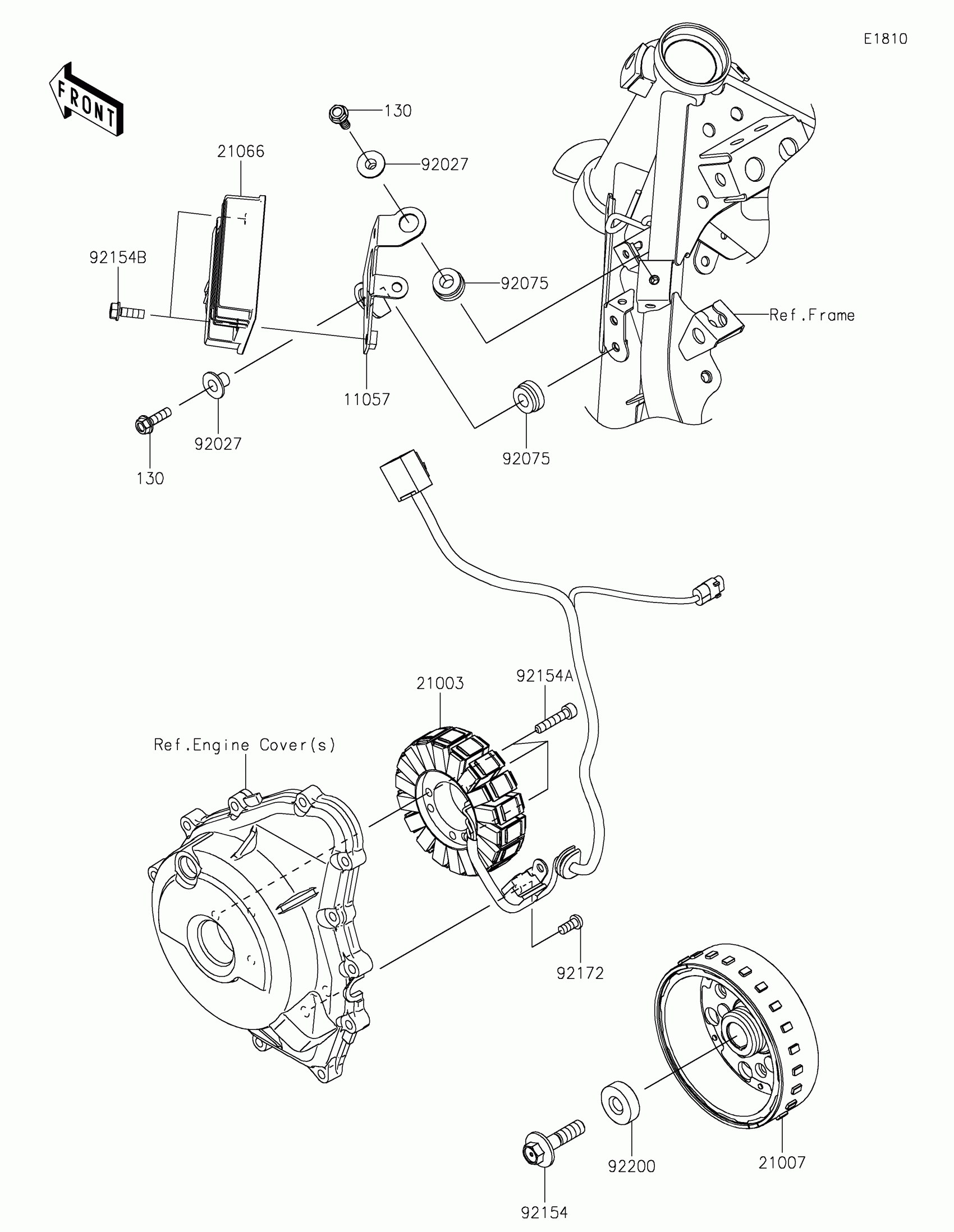

Kawasaki Z500 SE Generator Diagram

Description

Price

11057

BRACKET,REGULATOR

11057-1977

$9.75

21003

STATOR

21003-0178

$507.11

21007

ROTOR

21007-0736

$543.02

21066

REGULATOR-VOLTAGE

21066-0761

$199.67

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92154

BOLT,FLANGED,10X40

92154-2341

$21.33

92154A

BOLT,SOCKET,6X30

92154-2820

$2.17

92154B

BOLT,FLANGED,6X18

92154-2896

$0.64

92172

SCREW,6X14

92172-1212

$1.42

92200

WASHER,10X30X9

92200-0790

$7.85

130

BOLT-FLANGED,6X22

130BA0622

$1.29
