Description

Price

32052

BRACKET-TANK

32052-0809

$32.18

39085

PAD-TANK

39085-0021

$30.13

51049

CAP-TANK,FUEL

51049-0756

$136.31

51061

PAD-KNEE,LH

51061-0020

$30.91

51061A

PAD-KNEE,RH

51061-0021

$30.91

51093

TANK-COMP-FUEL,M.F.S.BLACK

51093-5331-739

$908.18

92075

DAMPER

92075-015

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92154

BOLT,SOCKET,6X14

92154-0932

$1.97

92161

DAMPER,10X24X12

92161-0927

$6.00

92161A

DAMPER,10X32X17

92161-1980

$3.74

92171

CLAMP,8X0.7

92171-1973

$1.34

92173

CLAMP

92173-0833

$3.74

92173A

CLAMP,HOLDER CLIP

92173-0868

$3.02

92192A

TUBE,DRAIN,6X9X810

92192-1860

$6.84

120

BOLT-SOCKET,5X12

120CA0512

$1.57

14069

BREATHER,FUEL TANK

14069-1004

$10.19

92037

CLAMP,TUBE

92037-147

$7.34

92171

CLAMP,8X0.7

92171-1973

$1.34

92192

TUBE,6X9X200

92192-1824

$5.83

702

TUBE-RUBBER,6X9X450

702A06450

$1.50

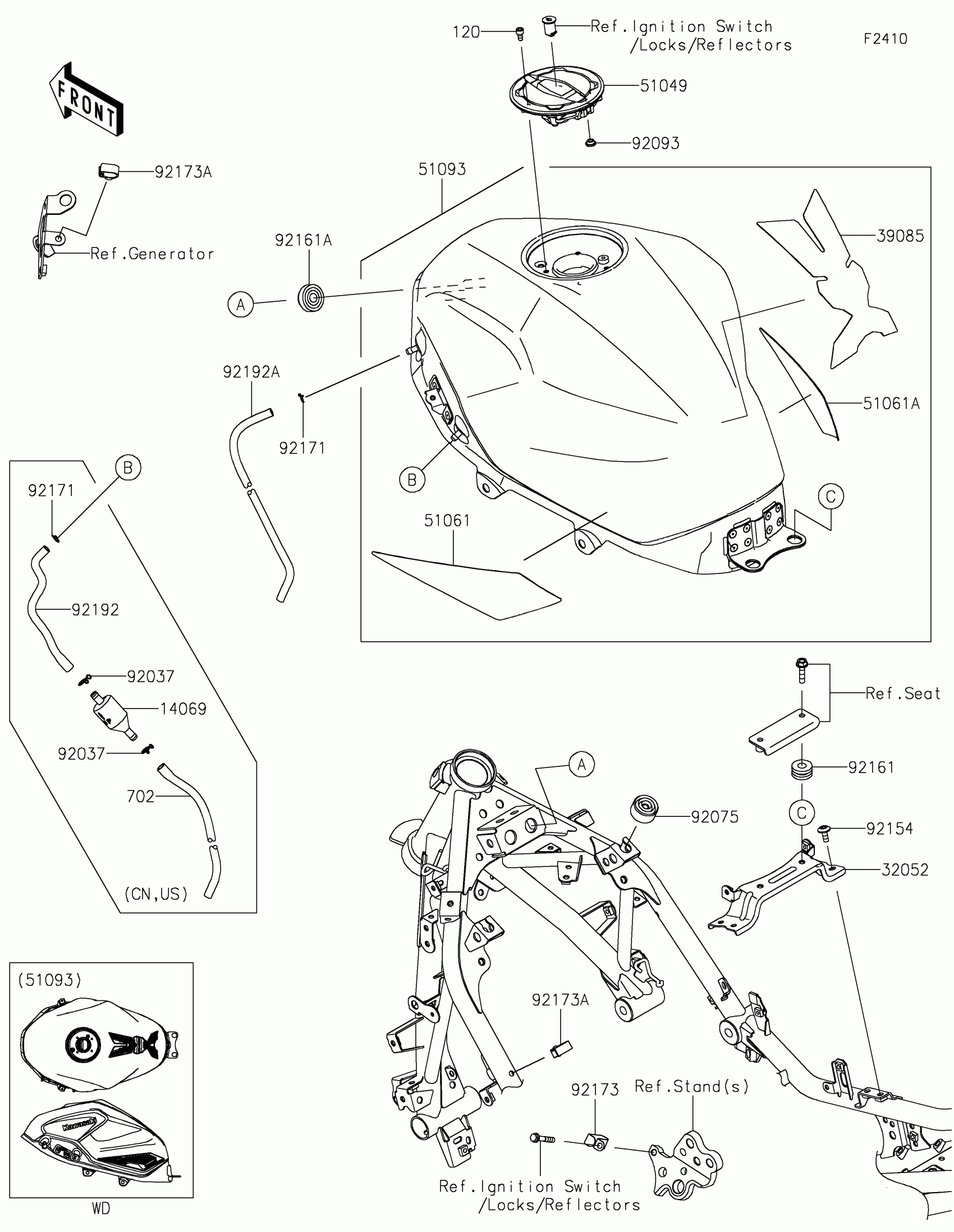

Kawasaki Z500 SE Fuel Tank Diagram

BRACKET-TANK

PAD-TANK

CAP-TANK,FUEL

PAD-KNEE,LH

PAD-KNEE,RH

TANK-COMP-FUEL,M.F.S.BLACK

DAMPER

SEAL,FUEL TANK CAP

BOLT,SOCKET,6X14

DAMPER,10X24X12

DAMPER,10X32X17

CLAMP,8X0.7

CLAMP

CLAMP,HOLDER CLIP

TUBE,DRAIN,6X9X810

BOLT-SOCKET,5X12

BREATHER,FUEL TANK

CLAMP,TUBE

CLAMP,8X0.7

TUBE,6X9X200

TUBE-RUBBER,6X9X450
