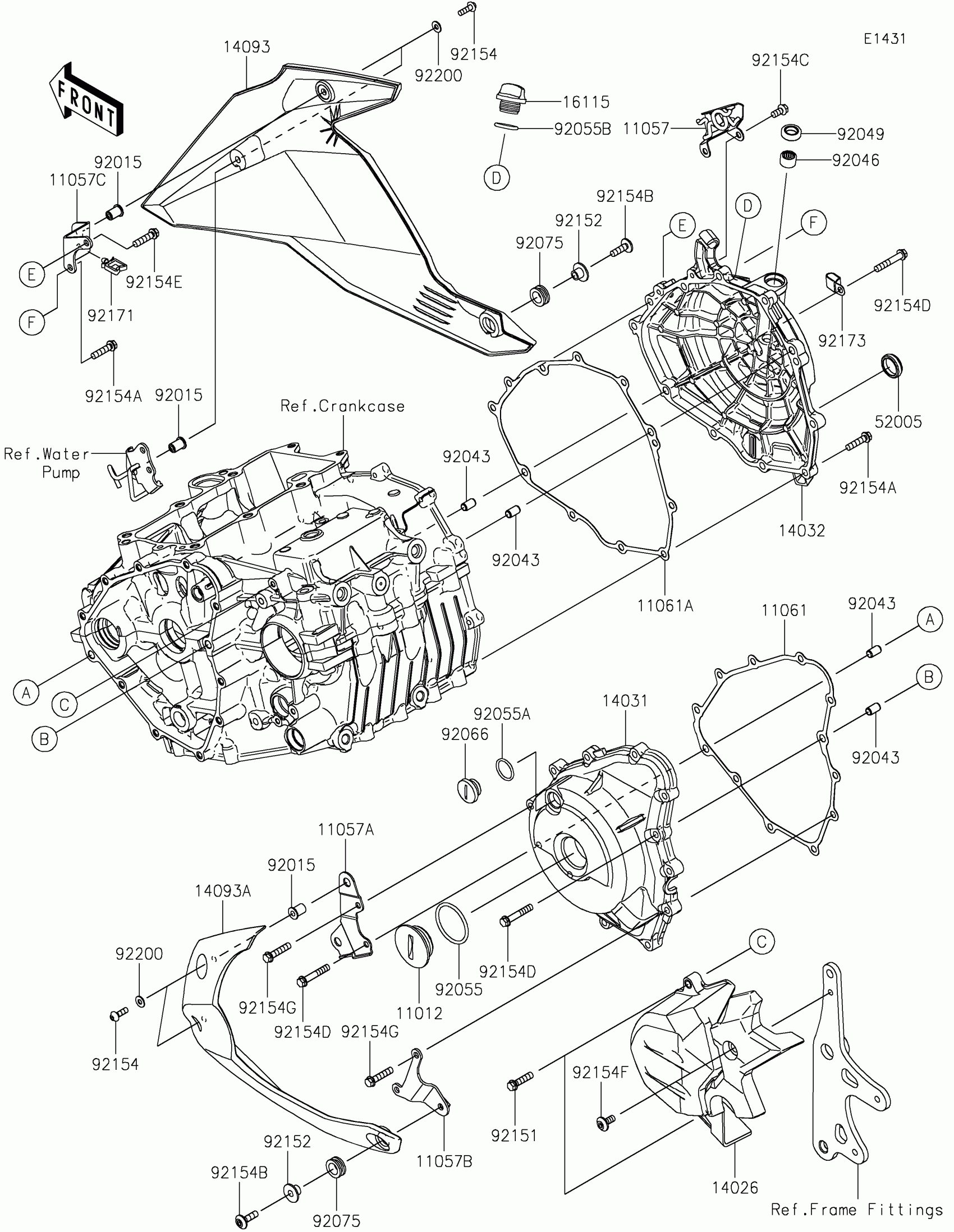

Kawasaki Z500 SE Engine Cover(s) Diagram
#
11012
CAP
11012-1362
$8.79
11057
BRACKET
11057-1231
$18.06
11057A
BRACKET,LH,FR
11057-1831
$29.41
11057B
BRACKET,LH,RR
11057-1832
$29.41
11057C
BRACKET,RH,UPP
11057-1833
$29.41
11061
GASKET,GENERATOR COVER
11061-1252
$40.76
11061A
GASKET,CLUTCH COVER
11061-1253
$40.76
14026
COVER-CHAIN
14026-0141
$70.48
14031
COVER-GENERATOR
14031-0618
$121.53
14032
COVER-CLUTCH
14032-0656
$183.93
14093
COVER,LWR,RH,M.M.G.GRAY
14093-0768-68P
$235.18
14093A
COVER,LWR,LH,M.M.G.GRAY
14093-0981-68P
$235.18
16115
CAP-OIL FILLER
16115-1053
$12.20
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92015
NUT,WELL,5MM
92015-1757
$7.29
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL
92049-1560
$9.28
92055
RING-O,39.4X3.1
92055-0734
$1.97
92055A
RING-O,20X2
92055-1146
$8.58
92055B
RING-O
92055-1777
$1.08
92066
PLUG
92066-0748
$15.64
92075
DAMPER
92075-1634
$4.69
92151
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92152
COLLAR,6.8X20X9.6
92152-2908
$6.22
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,FLANGED,6X25
92154-0819
$2.32
92154B
BOLT,SOCKET,6X20
92154-0918
$6.26
92154C
BOLT,FLANGED,6X12
92154-1777
$0.95
92154D
BOLT,FLANGED,6X35
92154-1779
$1.71
92154E
BOLT,FLANGED,6X25
92154-2734
$2.17
92154F
BOLT,SOCKET,6X14
92154-2735
$1.69
92154G
BOLT,FLANGED,6X28
92154-2788
$1.42
92171
CLAMP
92171-0290
$3.73
92173
CLAMP
92173-1828
$2.95
92200
WASHER,5.2X12X1.0
92200-0784
$0.85
