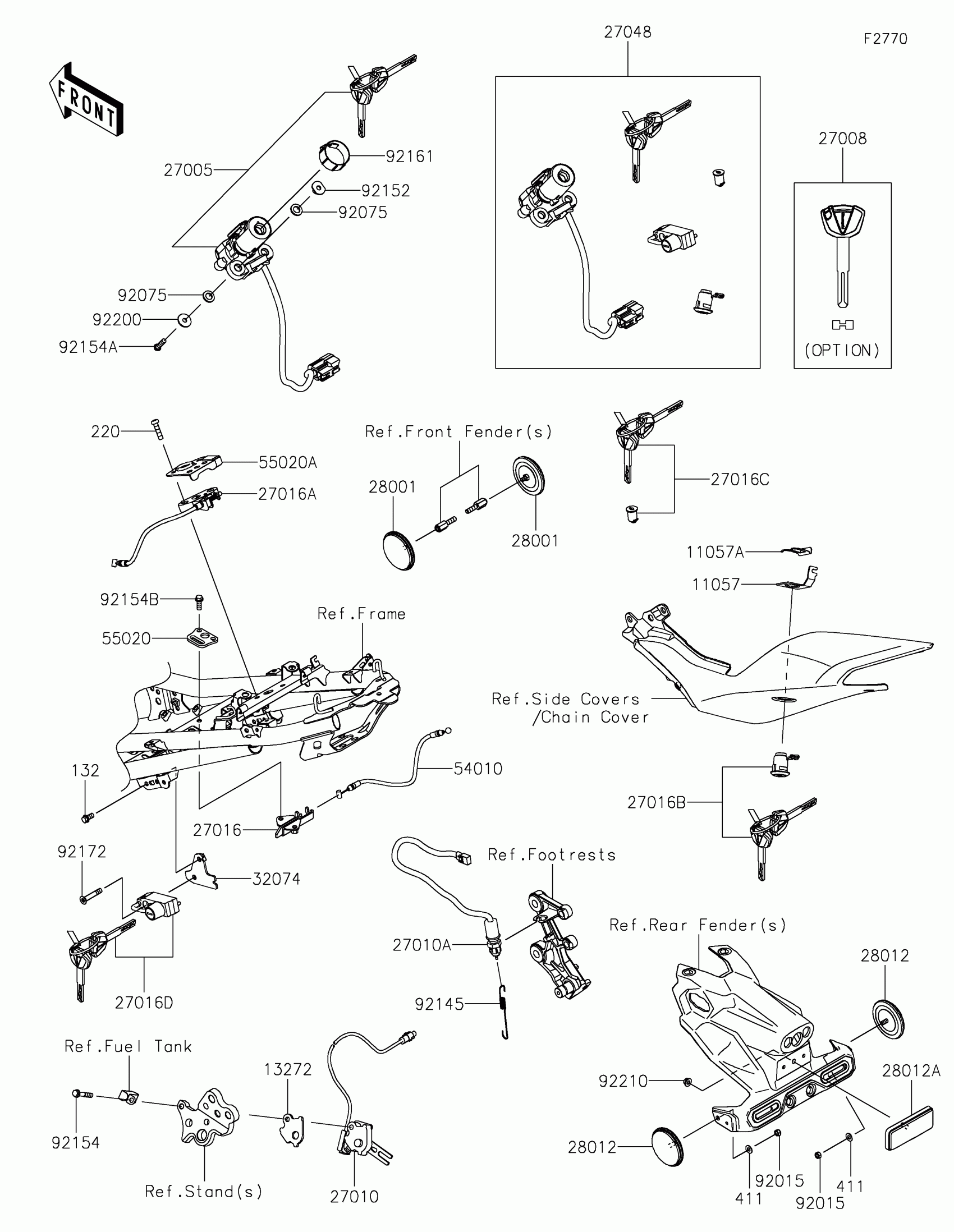

Kawasaki Z500 Ignition Switch/Locks/Reflectors Diagram
#
Description
Price
11057
BRACKET,SEAT LOCK
11057-7033
$4.40
11057A
BRACKET,SEAT LOCK,UPP
11057-7740
$2.08
13272
PLATE
13272-1330
$3.71
27005
SWITCH-ASSY-IGNITION
27005-0718
$174.88
27008
KEY-LOCK,BLANK
27008-0662
$28.86
27010
SWITCH,SIDE STAND
27010-0845
$117.80
27010A
SWITCH,STOP
27010-0863
$29.07
27016
LOCK-ASSY,SEAT STRIKER
27016-0008
$14.90
27016A
LOCK-ASSY,SEAT STRIKER
27016-0025
$28.71
27016B
LOCK-ASSY,SEAT
27016-5430
$134.28
27016C
LOCK-ASSY,TANK CAP
27016-5431
$121.51
27016D
LOCK-ASSY,HELMET
27016-5432
$110.14
27048
SWITCH-ASSY
27048-5276
$511.97
28001
REFLECTOR-ASSY-REFLEX,FR
28001-0033
$12.59
28012
REFLECTOR-REFLEX,RR,SIDE
28012-0063
$24.14
28012A
REFLECTOR-REFLEX,RR,FLAP
28012-0064
$23.25
32074
BRACKET-LOCK,HELMET
32074-0039
$6.75
54010
CABLE,SEAT LOCK
54010-0661
$9.45
55020
GUARD,SEAT STRIKER
55020-2246
$10.17
55020A
GUARD,SEAT STRIKER
55020-2477
$7.71
92015
NUT,LOCK,5MM
92015-1221
$6.22
92075
DAMPER
92075-1564
$5.48
92145
SPRING,BRAKE LAMP SWITCH
92145-0683
$3.67
92152
COLLAR,6X9X10.6
92152-1971
$11.95
92154
BOLT,FLANGED,6X35
92154-1009
$3.35
92154A
BOLT,TORX,6X22
92154-1858
$3.94
92154B
BOLT,FLANGED-SMALL,6X16,TB2468
92154-3869
$2.17
92161
DAMPER
92161-1506
$6.63
92172
SCREW,HEXLOBE,6X35
92172-0835
$3.02
92200
WASHER,6X20X1.6
92200-0780
$1.19
92210
NUT,FLANGED,5MM
92210-0007
$2.70
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
220
SCREW-PAN-CROS,6X25
220AC0625
$1.17
411
WASHER-PLAIN,5MM
411AB0500
$0.84
