2025 Kawasaki Z500 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

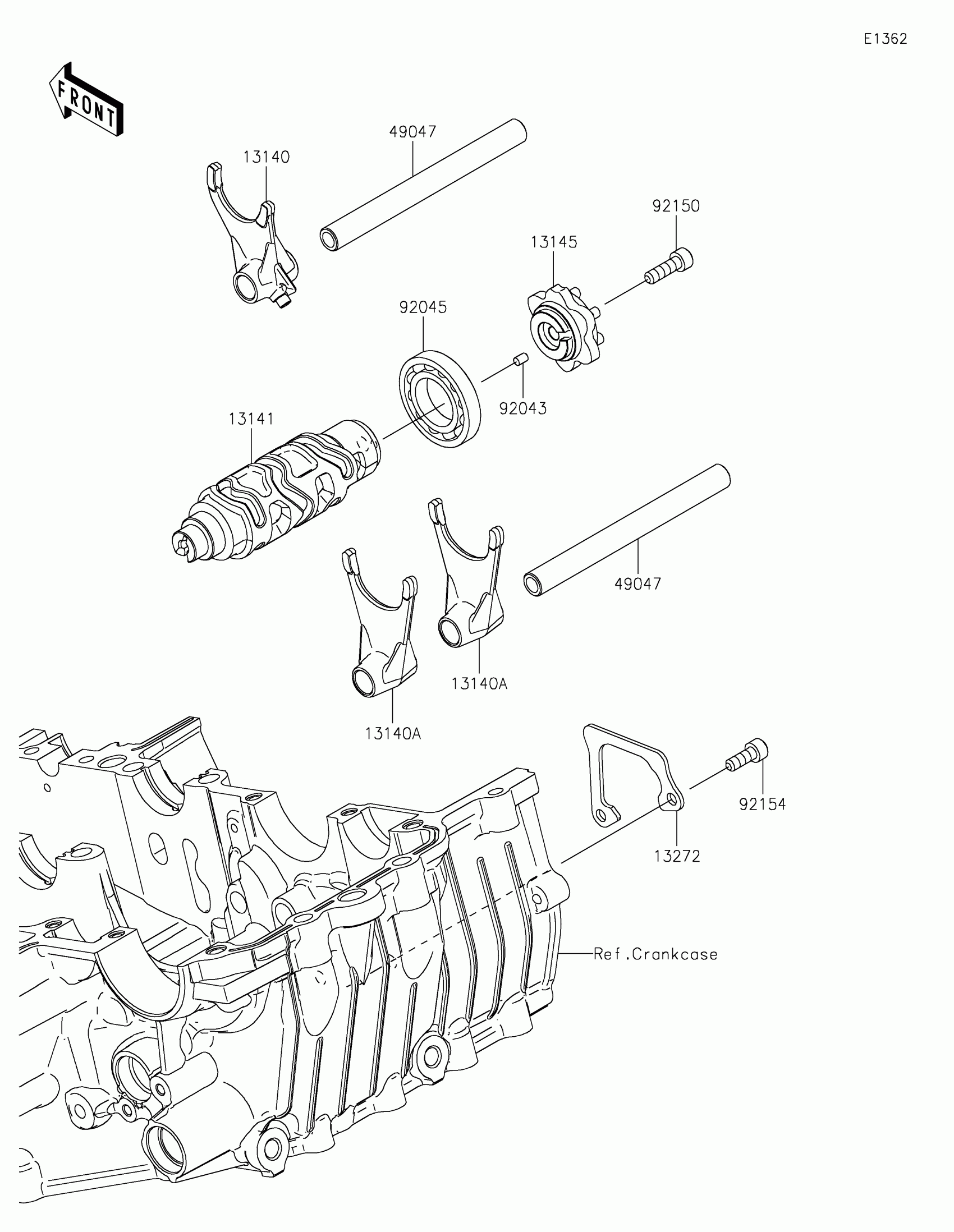

2025 Kawasaki Z500 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,IN

13140-0662

1

$86.34

In stock

13140A

FORK-SHIFT,OUT

13140-0663

1

$86.34

In stock

13141

DRUM-CHANGE

13141-0597

1

$86.21

In stock

13145

CAM-CHANGE DRUM

13145-0570

1

$55.65

In stock

13272

PLATE

13272-2374

1

$9.68

In stock

49047

ROD-SHIFT

49047-0634

1

$14.78

In stock

92043

PIN,4X6

92043-1744

1

$0.86

In stock

92045

BEARING-BALL,16005

92045-1045

1

$28.80

In stock

92150

BOLT,SOCKET,6X20

92150-1880

1

$3.56

In stock

92154

BOLT,SOCKET,6X16

92154-0235

1

$2.41

In stock
