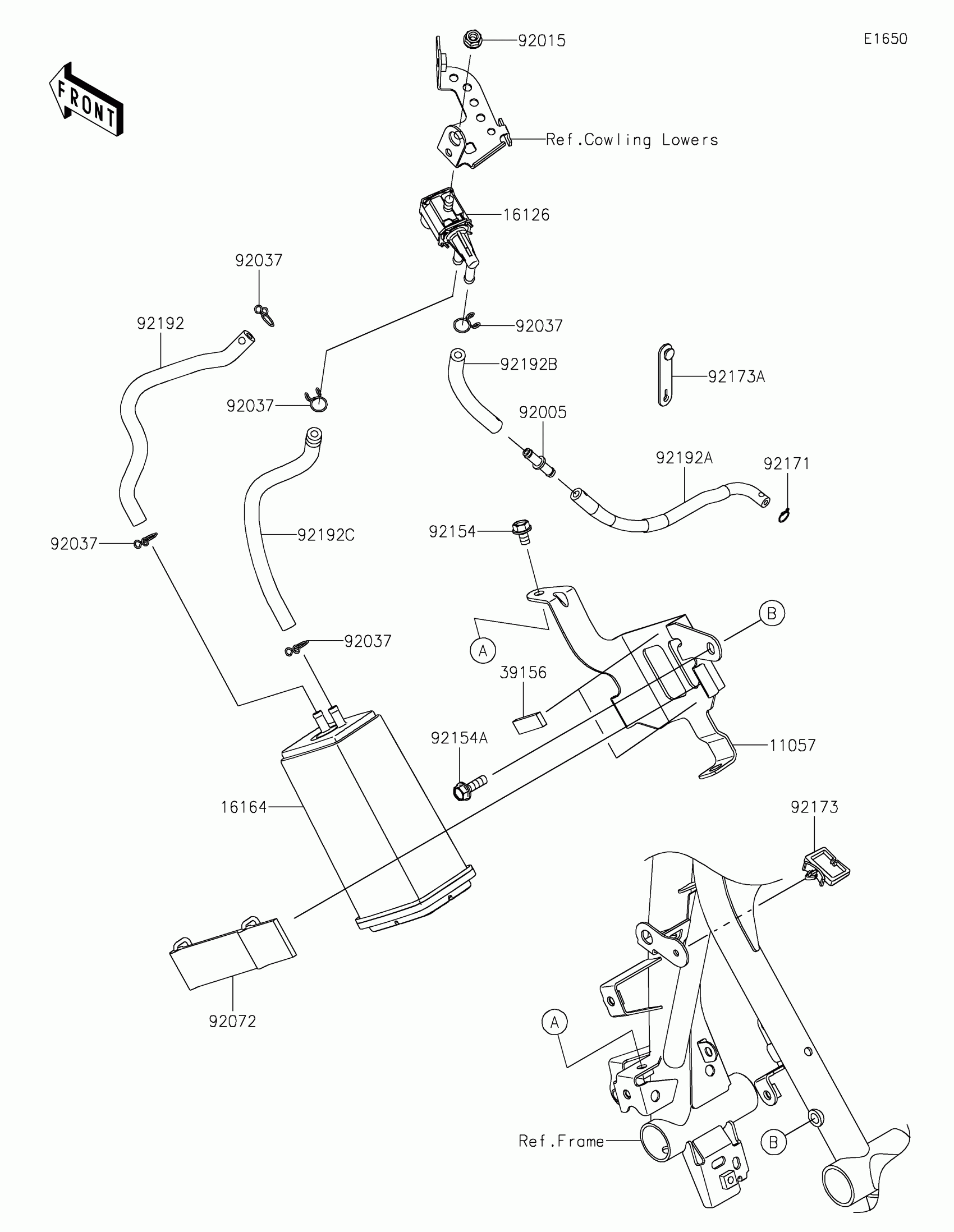

Kawasaki Z500 Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2143

$19.08

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

39156

PAD,10X30X4

39156-0927

$0.84

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-147

$7.34

92072

BAND,CANISTER

92072-0815

$10.76

92154

BOLT,FLANGED,6X10

92154-2939

$0.90

92154A

BOLT-FLANGED,6X20

92154-3812

$1.42

92171

CLAMP

92171-0573

$1.34

92173

CLAMP,CABLE CLIP

92173-1242

$1.71

92173A

CLAMP

92173-2198

$1.48

92192

TUBE,FUEL TANK-CANISTER

92192-1806

$30.45

92192A

TUBE,FITTING-THROTTLE BODY

92192-1920

$45.89

92192B

TUBE,5X10.4X92

92192-1923

$19.92

92192C

TUBE,5X10.4X220

92192-2537

$34.06
