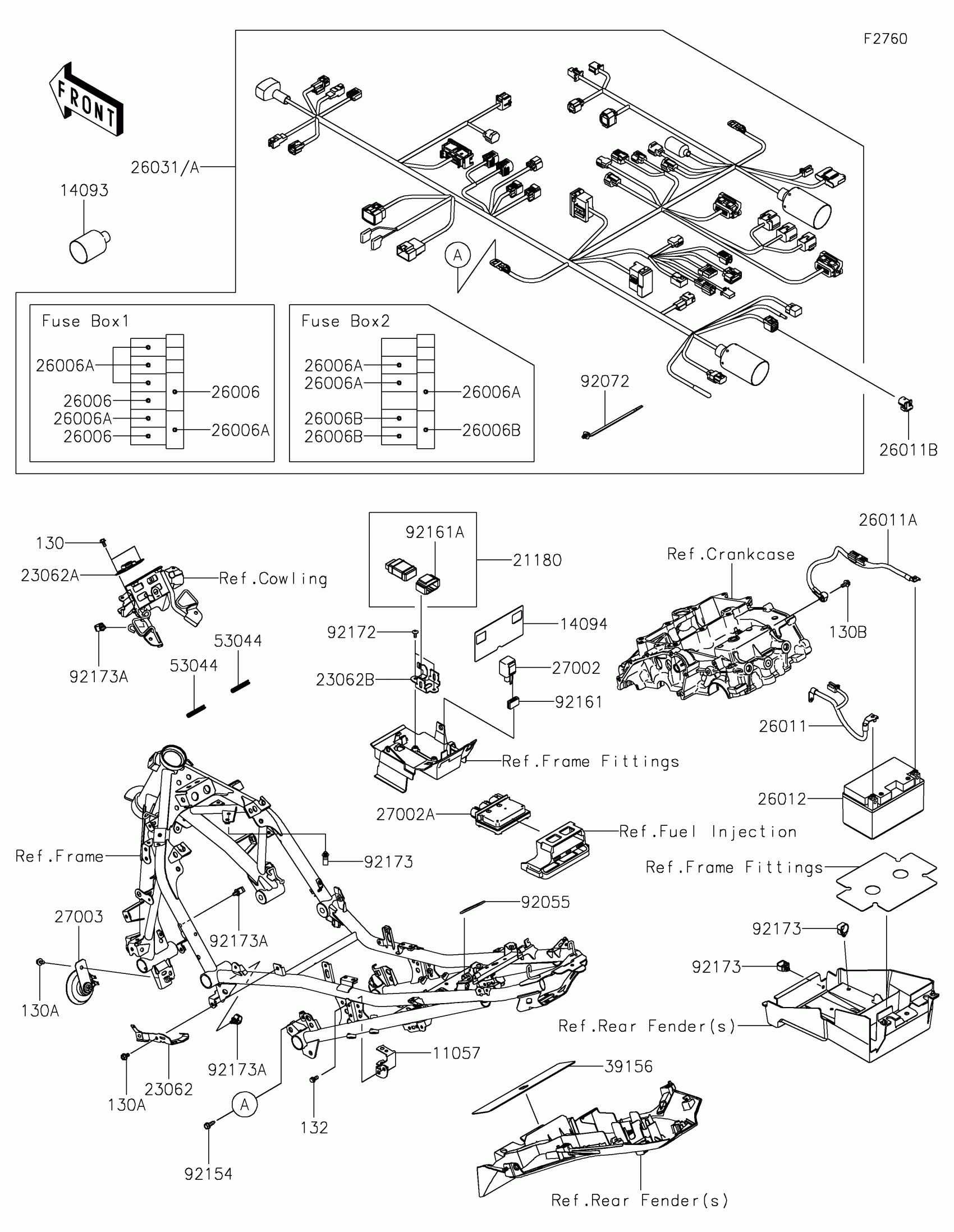

Kawasaki Z500 Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,MAGNETIC SW.

11057-1225

$6.38

14093

COVER,HARNESS

14093-0720

$4.55

14094

COVER,RELAY

14094-0256

$4.12

21180

TRANSCEIVER,BLUETOOTH

21180-0007

$175.30

23062

BRACKET-COMP,FUSE BOX

23062-1193

$3.74

23062A

BRACKET-COMP,SIGNAL LAMP

23062-1231

$4.85

23062B

BRACKET-COMP,TRANSCEIVER

23062-1491

$7.75

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0974

$45.50

26011A

WIRE-LEAD,BATTERY(-)

26011-0975

$30.38

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26012

BATTERY,YTZ10,12V 8.6AH

26012-1606

$236.49

26031A

HARNESS,MAIN

26031-4316

$758.54

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$54.81

27002A

RELAY-ASSY

27002-0061

$167.87

27003

HORN

27003-0065

$68.06

39156

PAD,60X250X1

39156-2219

$10.58

53044

TRIM,45MM

53044-0644

$5.59

92055

RING-O,50MM

92055-0954

$3.92

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X18

92154-4008

$1.37

92161

DAMPER,15X25X8.5

92161-1443

$1.94

92161A

DAMPER

92161-2516

$15.38

92172

SCREW,5X12

92172-0821

$0.85

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173A

CLAMP

92173-1951

$1.42

130

BOLT-FLANGED,5X10

130BA0510

$1.71

130A

BOLT-FLANGED,6X10

130BA0610

$1.20

130B

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

26031

HARNESS,MAIN

26031-4313

$758.54
