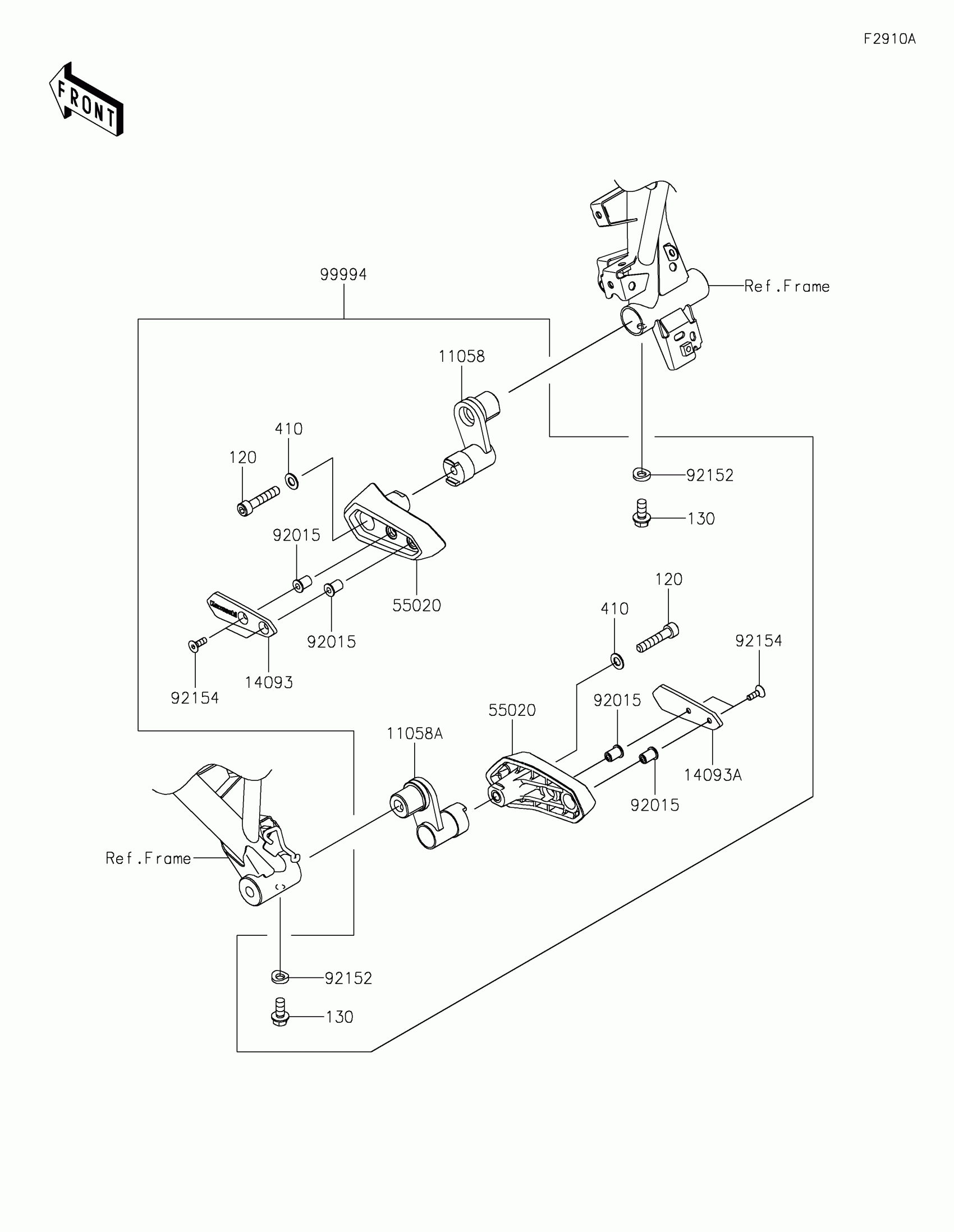

Kawasaki Z500 Accessory(Slider) Diagram

Description

Price

11058

BRACKET,SLIDER,LH

11058-1213

$76.43

11058A

BRACKET,SLIDER,RH

11058-1214

$76.43

14093

COVER,SLIDER,LH

14093-0971

$59.34

14093A

COVER,SLIDER,RH

14093-0972

$59.34

55020

GUARD

55020-2411

$103.03

92015

NUT,WELL,5MM

92015-1757

$7.29

92152

COLLAR,8.3X16

92152-2423

$3.74

92154

BOLT,SOCKET,5X16

92154-4048

$0.88

99994

FRAME SLIDER

99994-2006

$259.66

120

BOLT-SOCKET,8X40

120CA0840

$2.80

130

BOLT-FLANGED,8X18

130BB0818

$1.71

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96
