Description

Price

41068

AXLE,RR

41068-0644

$69.43

41073

WHEEL-ASSY,RR,G.BLACK

41073-0753-QT

$927.62

42033

COUPLING-ASSY,RR HUB

42033-0574

$239.48

42036

SLEEVE,RR HUB,L=30

42036-1055

$27.73

42041

SPROCKET-HUB,41T

42041-0162

$85.02

92004

STUD,10X19

92004-0048

$8.51

92049

SEAL-OIL,35X52X7

92049-0730

$10.90

92049A

SEAL-OIL,27X47X7

92049-0802

$7.29

92057

CHAIN,DRIVE,EK520SR-O2X106L

92057-0019

$224.21

92058

JOINT-CHAIN,DRIVE

92058-1102

$15.06

92152

COLLAR,17X35X13

92152-0843

$27.50

92152A

COLLAR,17X28(38)X15

92152-0844

$30.68

92152B

COLLAR,17.2X25X121

92152-2387

$18.06

92161

DAMPER,RR HUB SHOCK

92161-0700

$85.61

92200

WASHER,17.3X30X2

92200-1916

$1.17

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,CASTLE,16X19

92210-1585

$6.63

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,#6203UUC3

601B6203UU

$22.99

601A

BEARING-BALL,#6205G

601B6205G

$19.08

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

$33.26

671

O RING

671B2550

$2.29

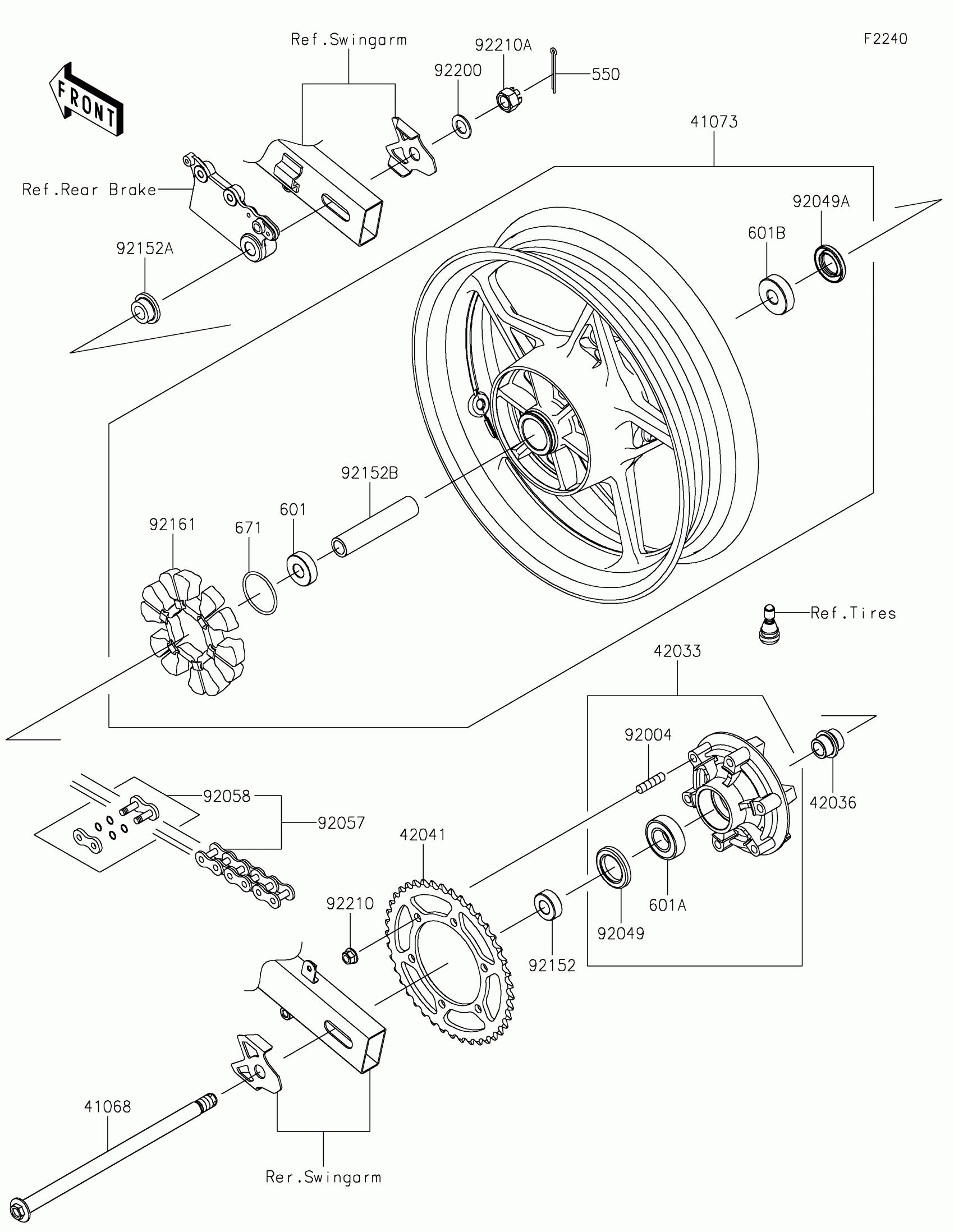

Kawasaki Z400 ABS Rear Wheel/Chain Diagram
