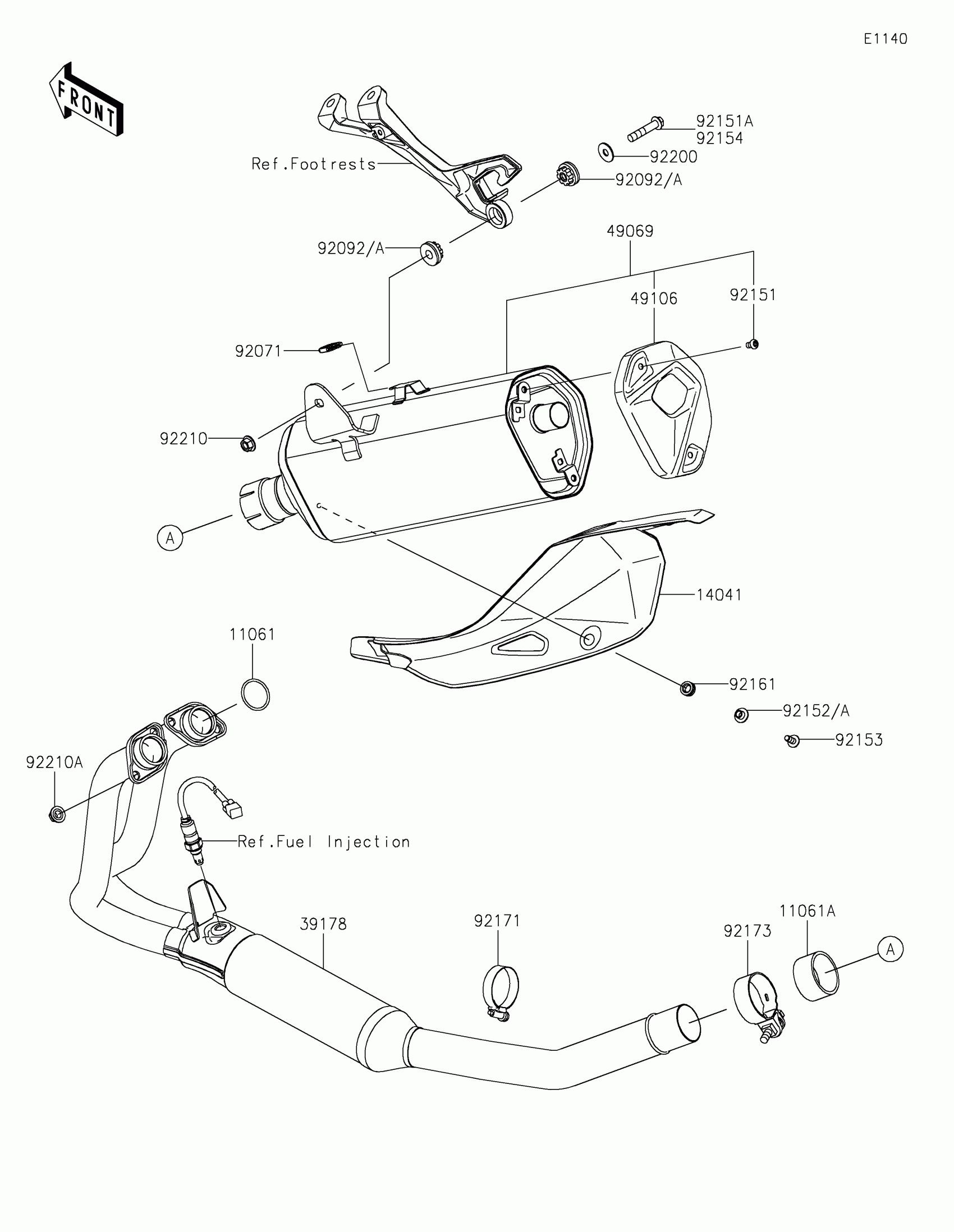

Kawasaki Z400 ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE

11061-1249

$7.60

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1266

$26.35

14041

COVER-COMP,MUFFLER

14041-0630

$225.18

39178

MANIFOLD-COMP-EXHAUST

39178-0348

$1,153.92

49069

MUFFLER-ASSY

49069-0846

$900.17

49106

COVER-MUFFLER,END

49106-0827

$75.51

92071

GROMMET

92071-0786

$9.40

92092A

BUSHING-RUBBER

92092-0044

$5.84

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92152A

COLLAR,6.3X8.3X16

92152-2850

$1.72

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92154

BOLT,FLANGED,8X40

92154-4399

$2.44

92161

DAMPER

92161-2152

$3.57

92171

CLAMP

92171-0058

$9.73

92173

CLAMP

92173-1931

$21.33

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT,8MM

92210-0121

$2.26

92210A

NUT,8MM

92210-1114

$2.46
