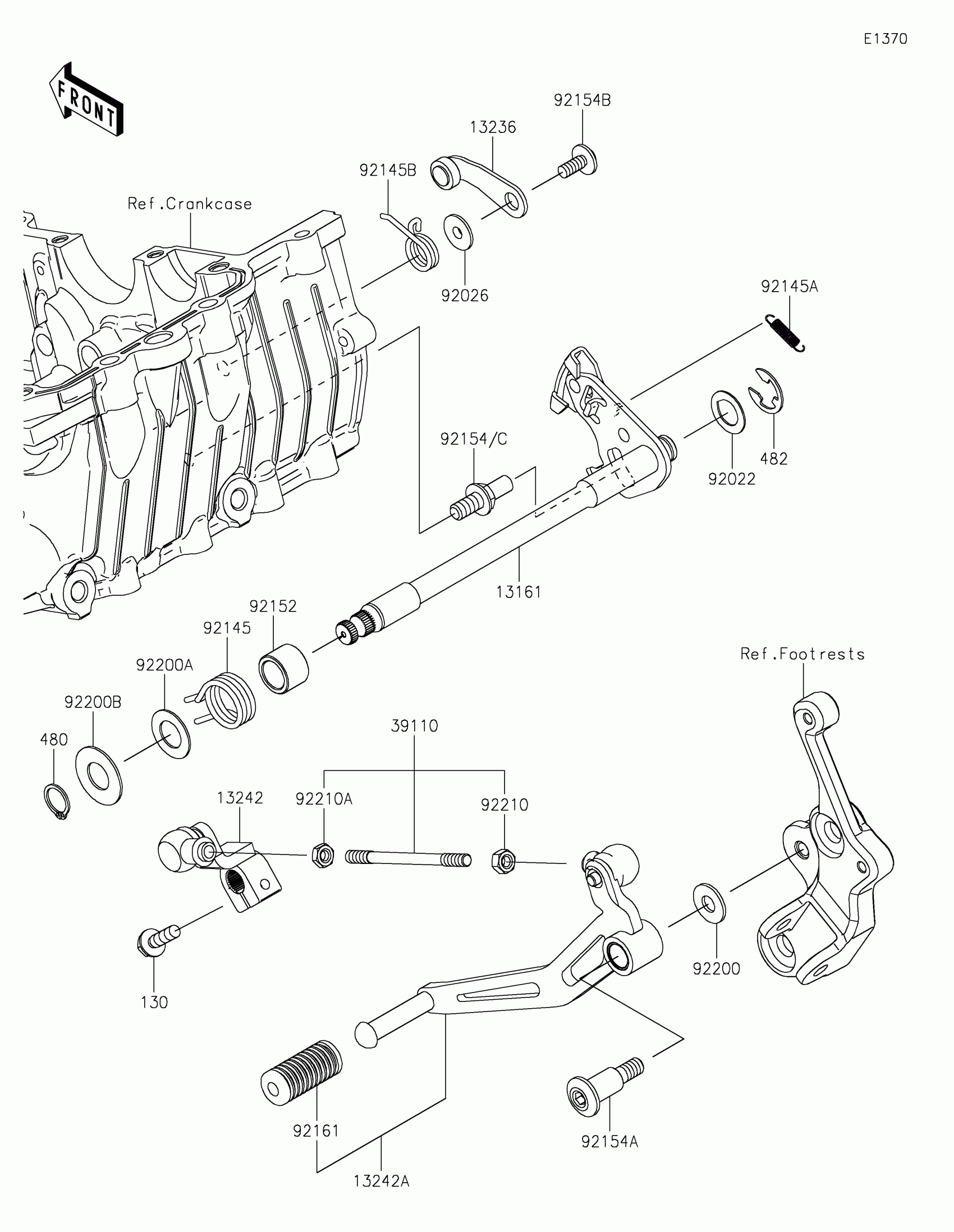

Kawasaki Z400 ABS Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0610

$93.54

13236

LEVER-COMP,POSITION

13236-0794

$10.00

13242

LEVER-ASSY-CHANGE

13242-0145

$30.88

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-0146

$46.83

39110

ROD-ASSY-TIE

39110-0045

$11.31

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92026

SPACER

92026-1217

$4.18

92145

SPRING,RETURN

92145-1783

$2.19

92145A

SPRING,PAWL RETURN

92145-1813

$0.88

92145B

SPRING,DRUM POSITION

92145-1814

$0.88

92152

COLLAR,14.2X19.9X14.3

92152-2370

$4.08

92154A

BOLT

92154-2730

$6.85

92154B

BOLT,SOCKET,6X14

92154-2731

$1.81

92154C

BOLT,RETURN SPRING

92154-4400

$2.71

92161

DAMPER,CHANGE PEDAL

92161-1466

$2.31

92200

WASHER,8.5X20X1.6

92200-0490

$2.28

92200A

WASHER,14.2X25X1

92200-1933

$0.69

92200B

WASHER,14.3X30X1.2

92200-2295

$2.12

92210

NUT,6MM

92210-1596

$1.93

92210A

NUT,LEFT HANDED,6MM

92210-1597

$2.44

130

BOLT-FLANGED,6X20

130CB0620

$5.84

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53
