2023 Kawasaki Z400 ABS Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2023 Kawasaki Z400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

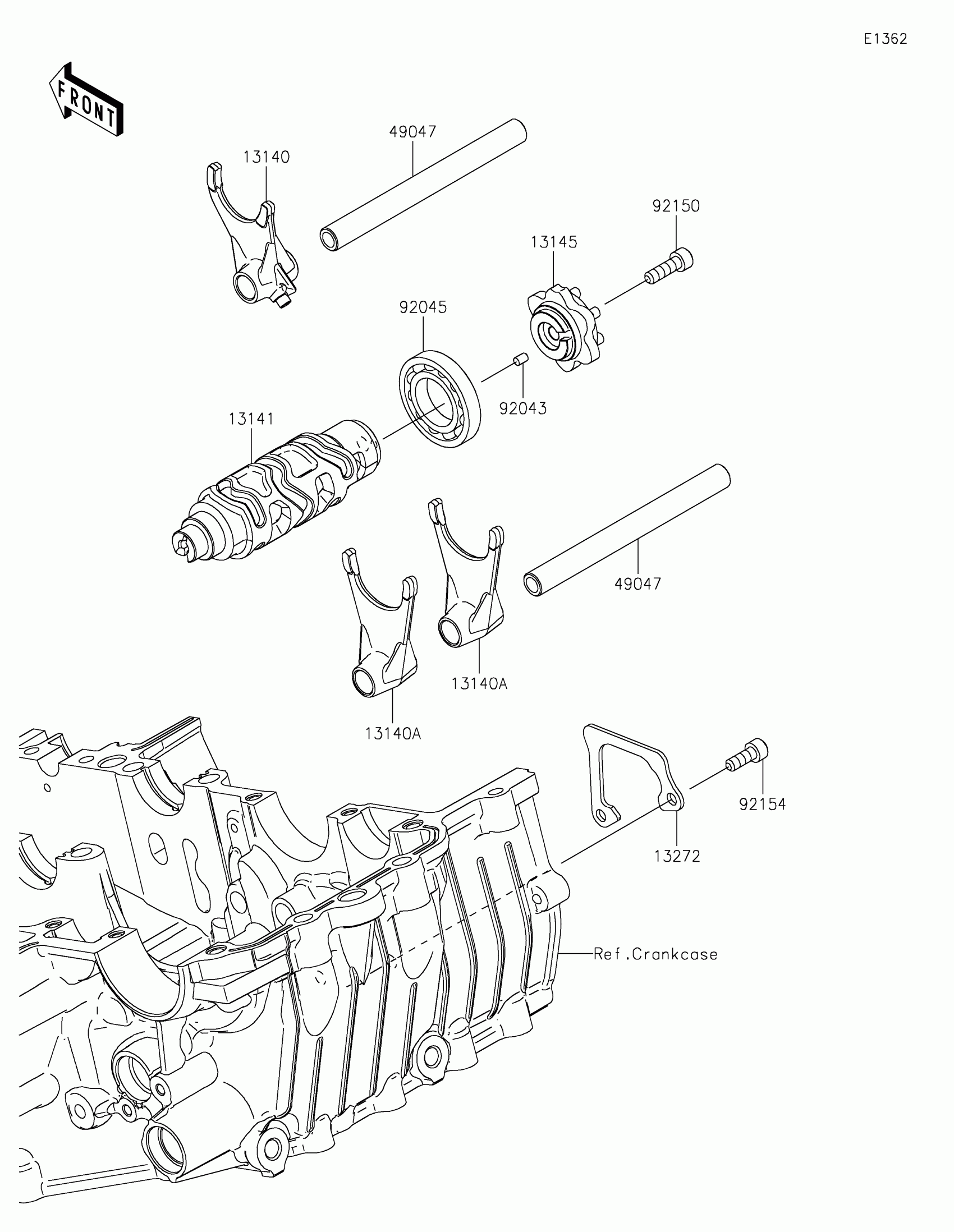

2023 Kawasaki Z400 ABS Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,IN

13140-0662

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-0663

1
Out of stock

13141

DRUM-CHANGE

13141-0597

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0570

1
Out of stock

13272

PLATE

13272-2374

1
Out of stock

49047

ROD-SHIFT

49047-0634

1
Out of stock

92043

PIN,4X6

92043-1744

1
Out of stock

92045

BEARING-BALL,16005

92045-0972

1
Out of stock

92150

BOLT,SOCKET,6X20

92150-1880

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0235

1
Out of stock
