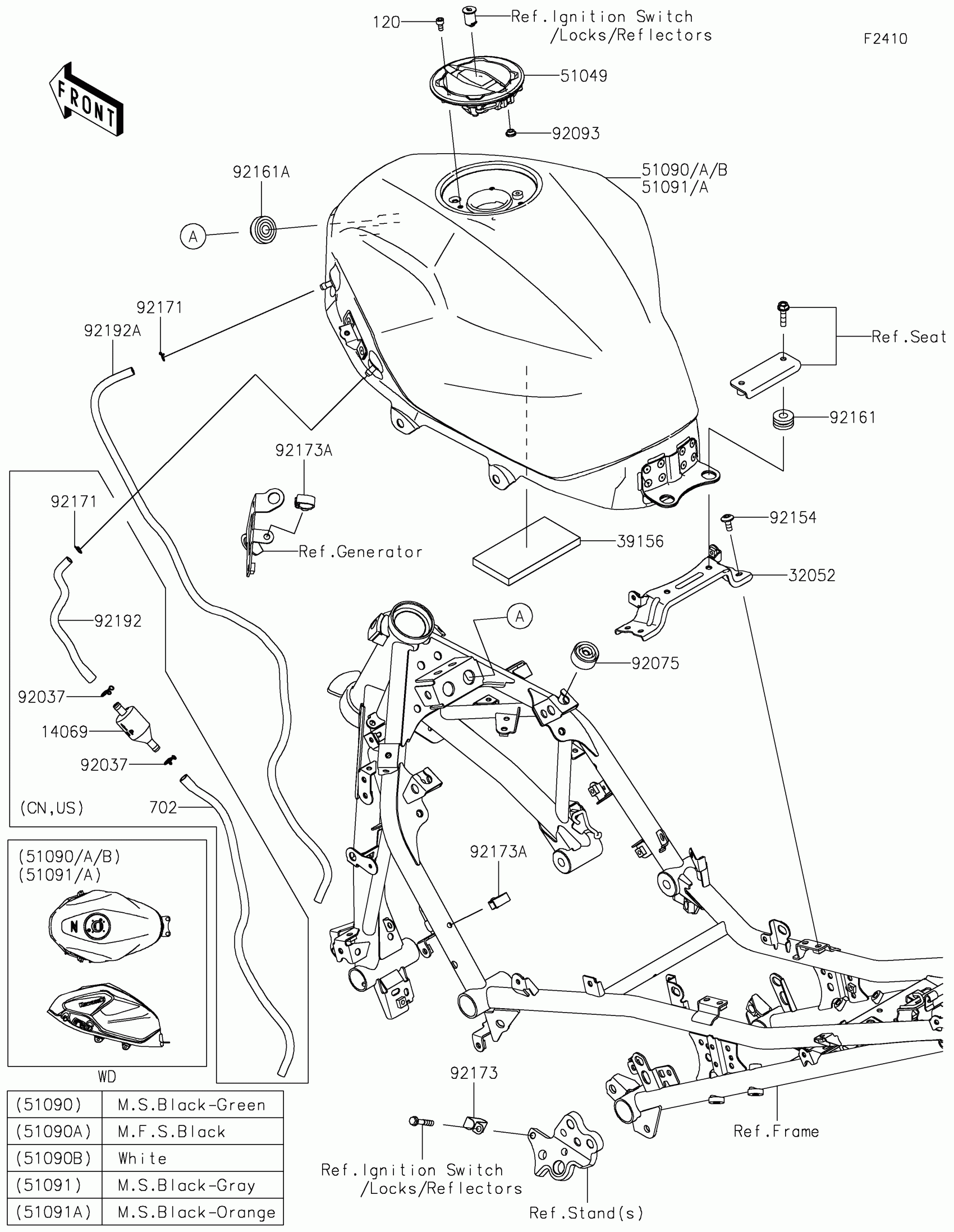

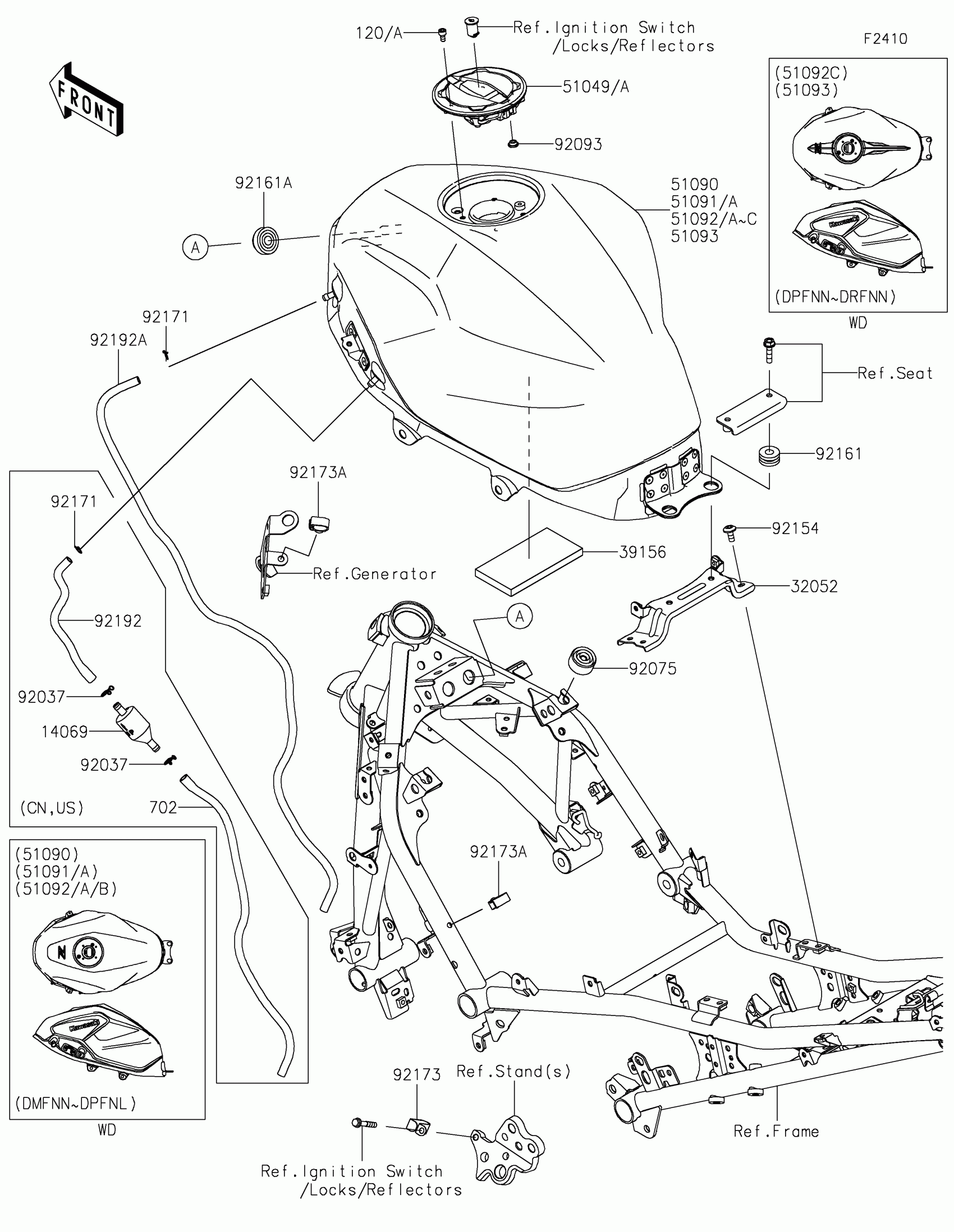

Kawasaki Z400 ABS Fuel Tank Diagram

Description

Price

32052

BRACKET-TANK

32052-0809

$32.18

39156

PAD,60X120X10

39156-2388

$10.58

51049A

CAP-TANK,FUEL

51049-0756

$136.31

51092A

TANK-COMP-FUEL,M.S.BLACK

51092-5162-660

Unavailable

51092B

TANK-COMP-FUEL,C.L.GREEN

51092-5242-51P

Unavailable

51092C

TANK-COMP-FUEL,M.M.G.GRAY

51092-5308-68P

$990.50

92075

DAMPER

92075-015

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92154

BOLT,SOCKET,6X14

92154-0932

$1.97

92161

DAMPER,10X24X12

92161-0927

$6.00

92161A

DAMPER,10X32X17

92161-1980

$3.74

92173

CLAMP

92173-0833

$3.74

92173A

CLAMP,HOLDER CLIP

92173-0868

$3.02

92192A

TUBE,DRAIN,6X9X810

92192-1860

$6.84

120

BOLT-SOCKET,5X12

120CA0512

$1.57
