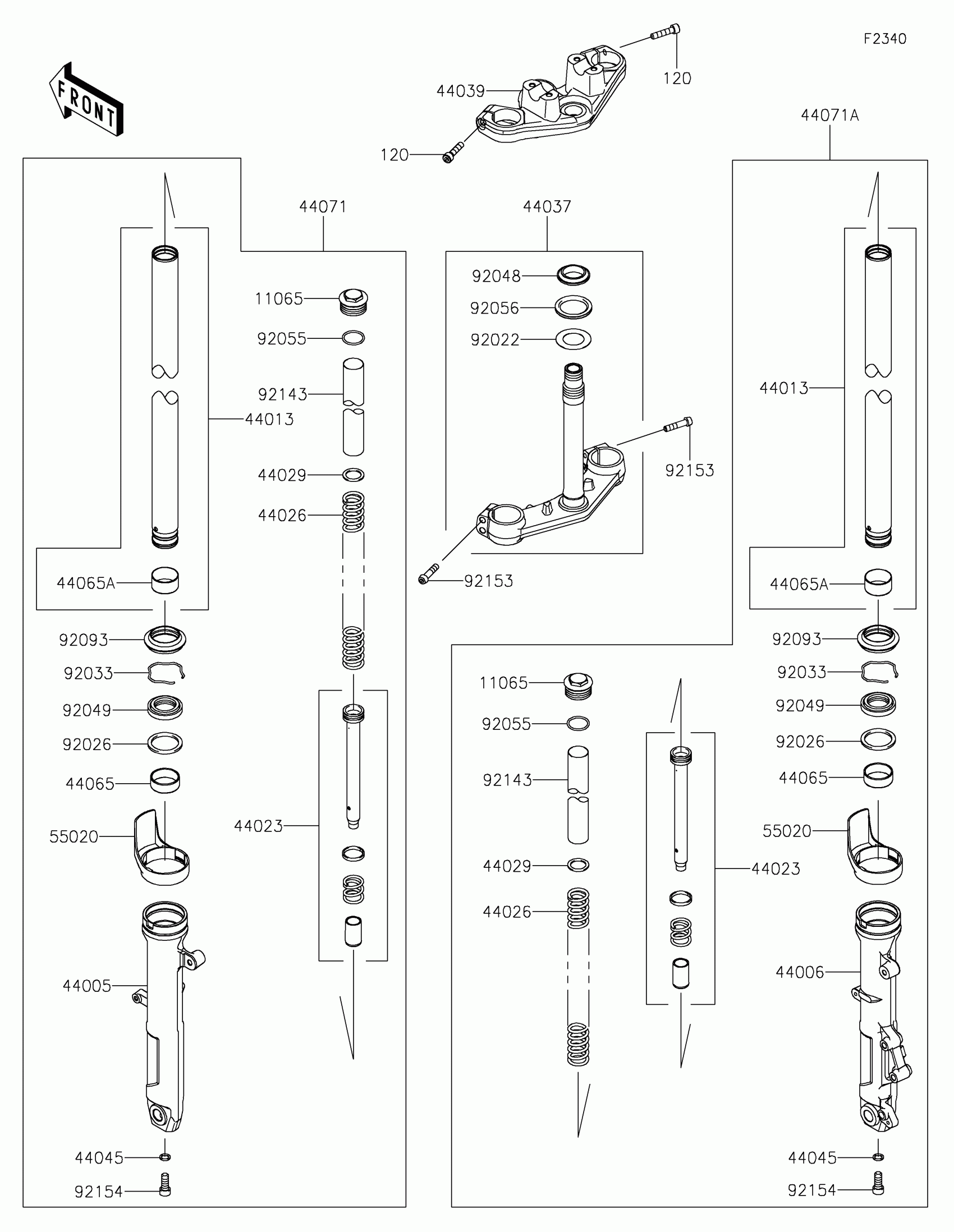

Kawasaki Z400 ABS Front Fork Diagram
#
Description
Price
11065
CAP
11065-1286
$44.62
44005
PIPE-LEFT FORK OUTER,F.S.BLACK
44005-0119-18R
$397.45
44006
PIPE-RIGHT FORK OUTER,F.S.BLK
44006-0116-18R
$397.45
44013
PIPE-FORK INNER
44013-0338
$459.67
44023
CYLINDER-SET-FORK
44023-0149
$112.23
44026
SPRING-FRONT FORK
44026-0231
$55.61
44029
SEAT-FORK SPRING
44029-1131
$10.36
44037
HOLDER-FORK UNDER,F.BLACK
44037-0178-21
$377.28
44039
HOLDER-FORK UPPER
44039-0183
$291.05
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK,GUIDE
44065-0030
$20.55
44065A
BUSHING-FRONT FORK
44065-0036
$20.83
44071
DAMPER-ASSY,LH,F.S.BLACK
44071-1331-22Q
$707.88
44071A
DAMPER-ASSY,RH,F.S.BLACK
44071-1332-22Q
$707.88
55020
GUARD,FORK
55020-0872
$11.66
92022
WASHER,30.5X50X0.6
92022-231
$4.69
92026
SPACER,FORK OUTER
92026-1276
$9.51
92033
RING-SNAP
92033-1222
$6.51
92048
RACE,STEERING STEM BEARING
92048-0048
$14.60
92049
SEAL-OIL
92049-0807
$22.70
92055
RING-O,FORK TOP
92055-1420
$5.52
92056
SEAL-OIL,STEERING STEM
92056-003
$8.86
92093
SEAL,DUST
92093-0717
$23.76
92143
COLLAR,FORK,L=200
92143-1611
$17.42
92153
BOLT,SOCKET,8X35
92153-0854
$7.83
92154
BOLT
92154-2551
$9.91
120
BOLT-SOCKET,8X35
120CC0835
$2.70
