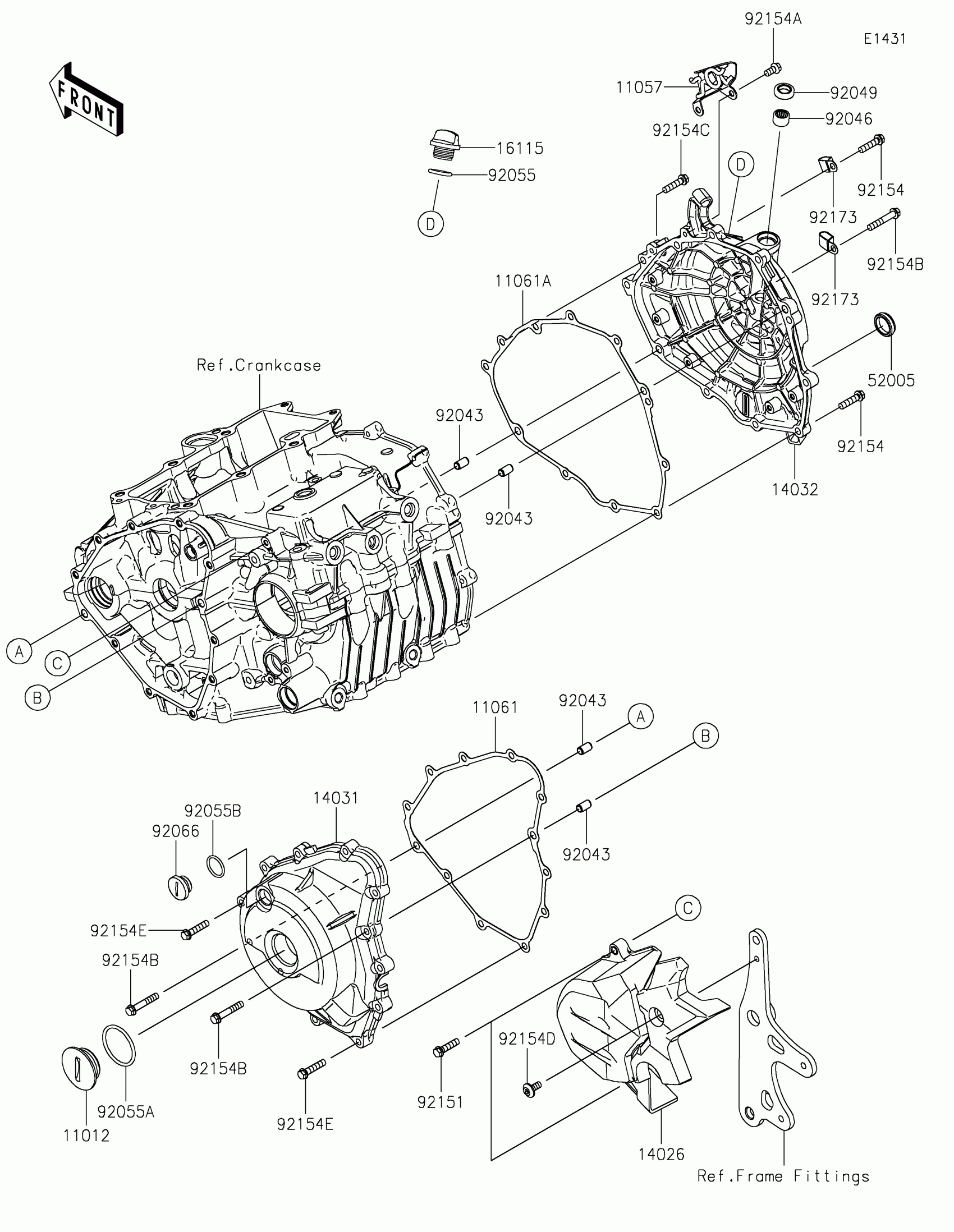

Kawasaki Z400 ABS Engine Cover(s) Diagram
#
Description
Price
11012
CAP
11012-1362
$8.79
11057
BRACKET
11057-1231
$18.06
11061
GASKET,GENERATOR COVER
11061-1252
$40.76
11061A
GASKET,CLUTCH COVER
11061-1253
$40.76
14026
COVER-CHAIN
14026-0141
$70.48
14031
COVER-GENERATOR
14031-0618
$121.53
14032
COVER-CLUTCH
14032-0656
$183.93
16115
CAP-OIL FILLER
16115-1053
$12.20
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL
92049-1560
$9.28
92055
RING-O
92055-012
$1.01
92055A
RING-O,39.4X3.1
92055-0734
$1.97
92055B
RING-O,20X2
92055-1146
$8.58
92066
PLUG
92066-0748
$15.64
92151
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92154
BOLT,FLANGED,6X25
92154-0819
$2.32
92154A
BOLT,FLANGED,6X12
92154-1777
$0.95
92154B
BOLT,FLANGED,6X35
92154-1779
$1.71
92154C
BOLT,FLANGED,6X25
92154-2734
$2.17
92154D
BOLT,SOCKET,6X14
92154-2735
$1.69
92154E
BOLT,FLANGED,6X28
92154-2788
$1.42
92173
CLAMP
92173-1828
$2.95
