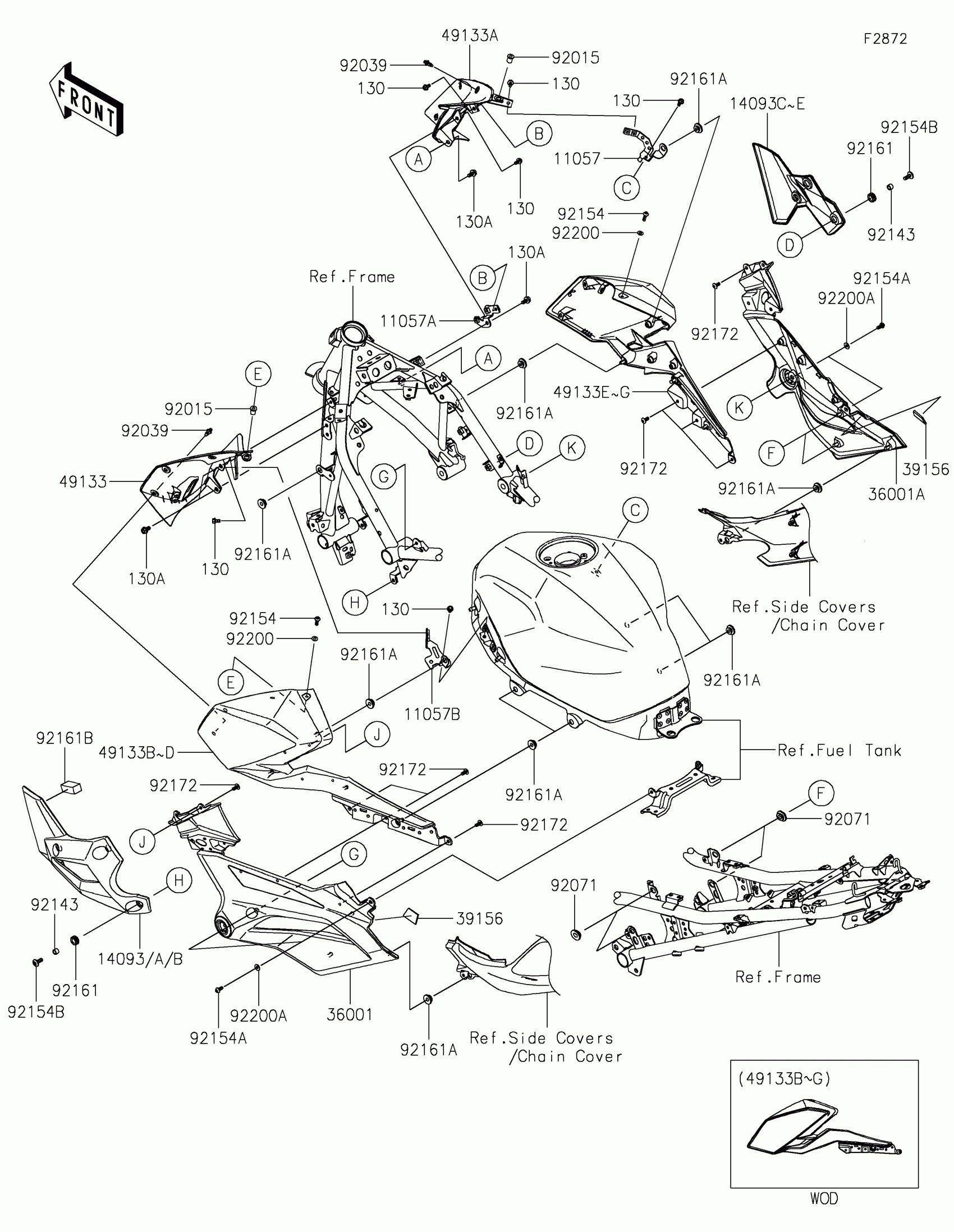

Kawasaki Z400 ABS Cowling Lowers Diagram
#
Description
Price
11057
BRACKET,SHROUD,INNER,RH,UPP
11057-1720
$5.88
11057A
BRACKET,SHROUD,INNER,RH,LWR
11057-1721
$5.61
11057B
BRACKET,SHROUD,INNER,LH
11057-2971
$6.13
14093
COVER,RADIATOR,LH,M.S.BLACK
14093-0746-660
$89.11
14093A
COVER,RADIATOR,LH,M.M.G.GRAY
14093-0746-68P
$89.11
14093D
COVER,RADIATOR,RH,M.S.BLACK
14093-0747-660
$73.68
14093E
COVER,RADIATOR,RH,M.M.G.GRAY
14093-0747-68P
$73.68
36001
COVER-SIDE,LH
36001-0670
$88.17
36001A
COVER-SIDE,RH
36001-0671
$88.17
39156
PAD
39156-2469
$0.98
49133
SHROUD,INNER,LH
49133-0029
$46.49
49133A
SHROUD,INNER,RH
49133-0030
$46.49
49133C
SHROUD,OUTER,LH,C.L.GREEN
49133-0031-51P
Unavailable
49133D
SHROUD,OUTER,LH,M.S.BLACK
49133-0031-660
$147.57
49133H
SHROUD,OUTER,RH,C.L.GREEN
49133-0032-51P
Unavailable
49133I
SHROUD,OUTER,RH,M.S.BLACK
49133-0032-660
$147.57
92015
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0060
$3.39
92071
GROMMET,20X24X7.5
92071-0766
$1.41
92143
COLLAR,6.8X10X7
92143-1407
$1.28
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X12
92154-1421
$0.95
92154B
BOLT,SOCKET,6X16
92154-3838
$2.17
92161
DAMPER
92161-0266
$1.78
92161A
DAMPER
92161-1531
$3.02
92161B
DAMPER,15X40X20
92161-2260
$2.70
92172
SCREW,5X12
92172-0821
$0.85
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
92200A
WASHER,5.3X13X1.2
92200-2211
$0.64
130
BOLT-FLANGED,5X10
130BA0510
$1.71
130A
BOLT-FLANGED,6X12
130BB0612
$2.34
