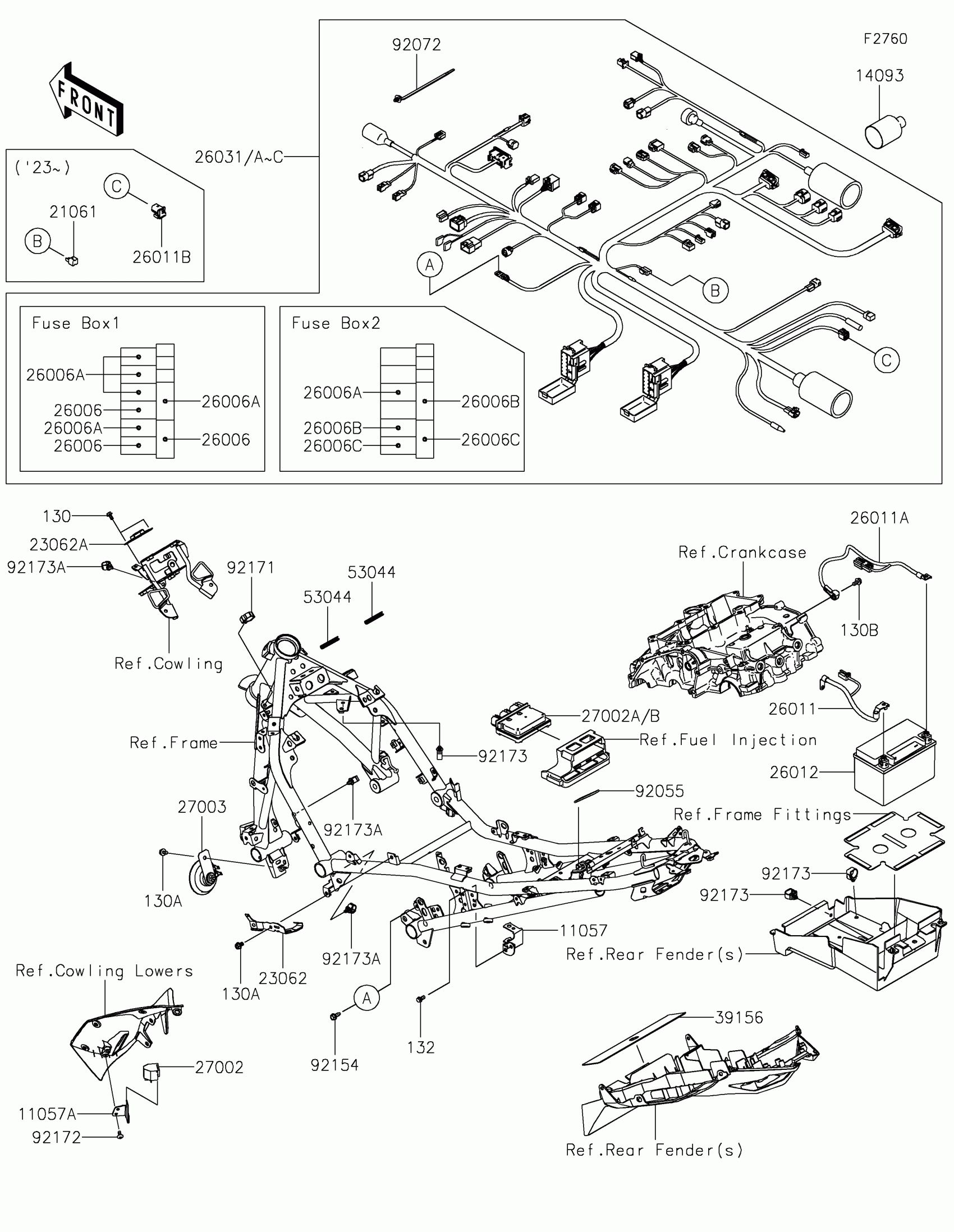

Kawasaki Z400 ABS Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,MAGNETIC SW.

11057-1225

$6.38

11057A

BRACKET,RELAY

11057-1763

$3.57

14093

COVER,HARNESS

14093-0720

$4.55

21061

RECTIFIER

21061-1003

$29.60

23062

BRACKET-COMP,FUSE BOX

23062-1193

$3.74

23062A

BRACKET-COMP,SIGNAL LAMP

23062-1231

$4.85

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0974

$45.50

26011A

WIRE-LEAD,BATTERY(-)

26011-0975

$30.38

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26012

BATTERY,FTX9-BS,12V 8AH

26012-1436

$196.32

26031B

HARNESS,MAIN

26031-3920

$760.40

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

$25.81

27002B

RELAY-ASSY

27002-0061

$167.87

27003

HORN

27003-0065

$68.06

39156

PAD,60X250X1

39156-2219

$10.58

53044

TRIM,45MM

53044-0644

$5.59

92055

RING-O,50MM

92055-0954

$3.92

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92172

SCREW,5X12

92172-0821

$0.85

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173A

CLAMP

92173-1951

$1.42

130

BOLT-FLANGED,5X10

130BA0510

$1.71

130A

BOLT-FLANGED,6X10

130BA0610

$1.20

130B

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20
