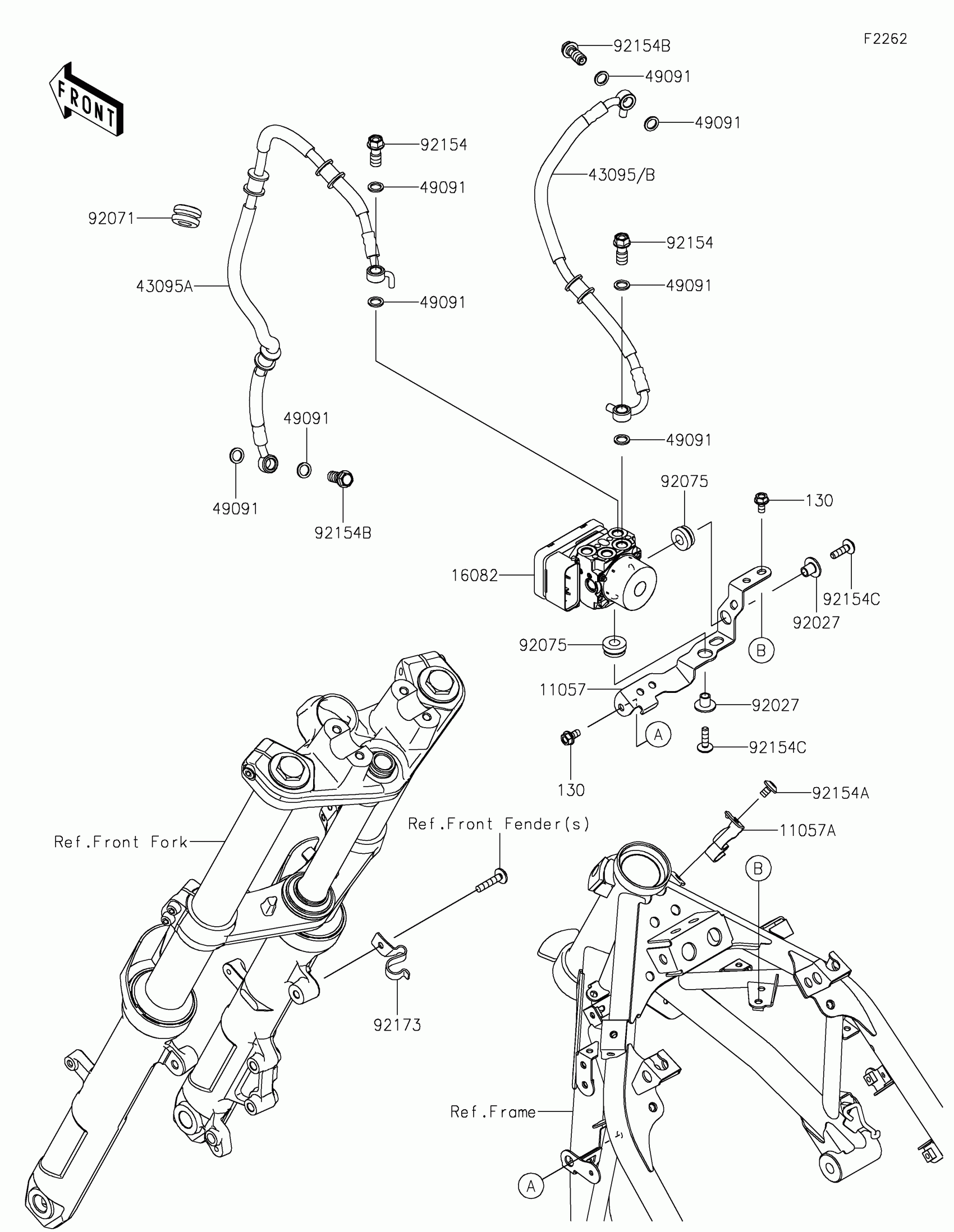

Kawasaki Z400 ABS Brake Piping Diagram

Description

Price

11057

BRACKET,ABS UNIT

11057-1098

$10.00

11057A

BRACKET

11057-1100

$2.70

16082

PUMP-ASSY-OIL

16082-0889

$1,131.12

43095

HOSE-BRAKE,HU-FR M/CYLINDER

43095-1580

$138.49

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-1581

$161.48

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92071

GROMMET,12.2X26X16

92071-0785

$2.15

92075

DAMPER

92075-277

$2.84

92154

BOLT,BANJO,10X22

92154-1138

$7.40

92154A

BOLT,SOCKET,6X10

92154-1693

$1.71

92154B

BOLT,BANJO,10X23

92154-1712

$3.94

92154C

BOLT,SOCKET,6X22

92154-2302

$1.17

92173

CLAMP,FR FENDER,RH

92173-2435

$3.86

130

BOLT-FLANGED,6X12

130BB0612

$2.34
