Description

Price

11010

FILTER-ASSY-AIR

11010-0867

$404.72

11013

ELEMENT-AIR FILTER

11013-0767

$52.43

16126

VALVE,AIR CUT

16126-0744

$88.65

39156

PAD,75X17X3

39156-2466

$2.92

92093

SEAL,CASE

92093-0706

$5.56

92093A

SEAL,ELEMENT

92093-0707

$4.55

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92160

DAMPER

92160-1162

$5.00

92161

DAMPER

92161-1933

$14.56

92170

CLAMP

92170-1017

$4.69

92171

CLAMP,18.8MM

92171-2056

$1.46

92172

SCREW,5X25

92172-0891

$1.94

92173

CLAMP,20MM

92173-0190

$5.33

92173A

CLAMP,14MM

92173-0192

$3.74

92173B

CLAMP

92173-1714

$7.24

92173C

CLAMP

92173-1749

$4.60

92192

TUBE,DRAIN CLEAN

92192-1744

$4.61

92192A

TUBE,BREATHER

92192-1810

$7.36

92192B

TUBE,AIR CUT VALVE-AIR CLEANER

92192-1811

$7.60

92192C

TUBE,AIR CUT VALVE-HEAD CAP

92192-1812

$5.83

92192D

TUBE,ISC-AIR CLEANER

92192-1813

$9.15

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X25

130BB0625

$2.80

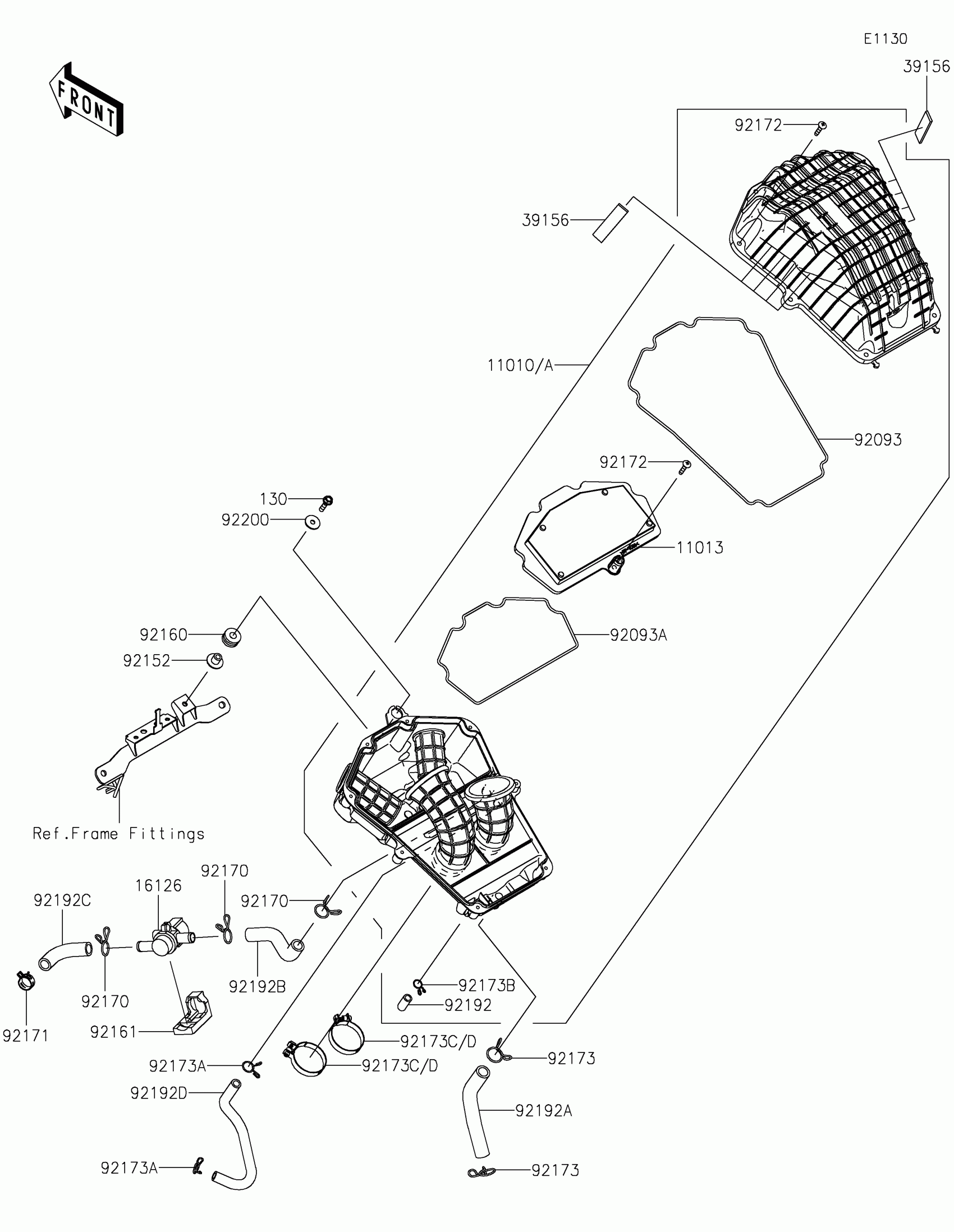

Kawasaki Z400 ABS Air Cleaner Diagram

FILTER-ASSY-AIR

ELEMENT-AIR FILTER

VALVE,AIR CUT

PAD,75X17X3

SEAL,CASE

SEAL,ELEMENT

COLLAR,6.5X10.5X13.1

DAMPER

DAMPER

CLAMP

CLAMP,18.8MM

SCREW,5X25

CLAMP,20MM

CLAMP,14MM

CLAMP

CLAMP

TUBE,DRAIN CLEAN

TUBE,BREATHER

TUBE,AIR CUT VALVE-AIR CLEANER

TUBE,AIR CUT VALVE-HEAD CAP

TUBE,ISC-AIR CLEANER

WASHER,6.5X22X1.6

BOLT-FLANGED,6X25
