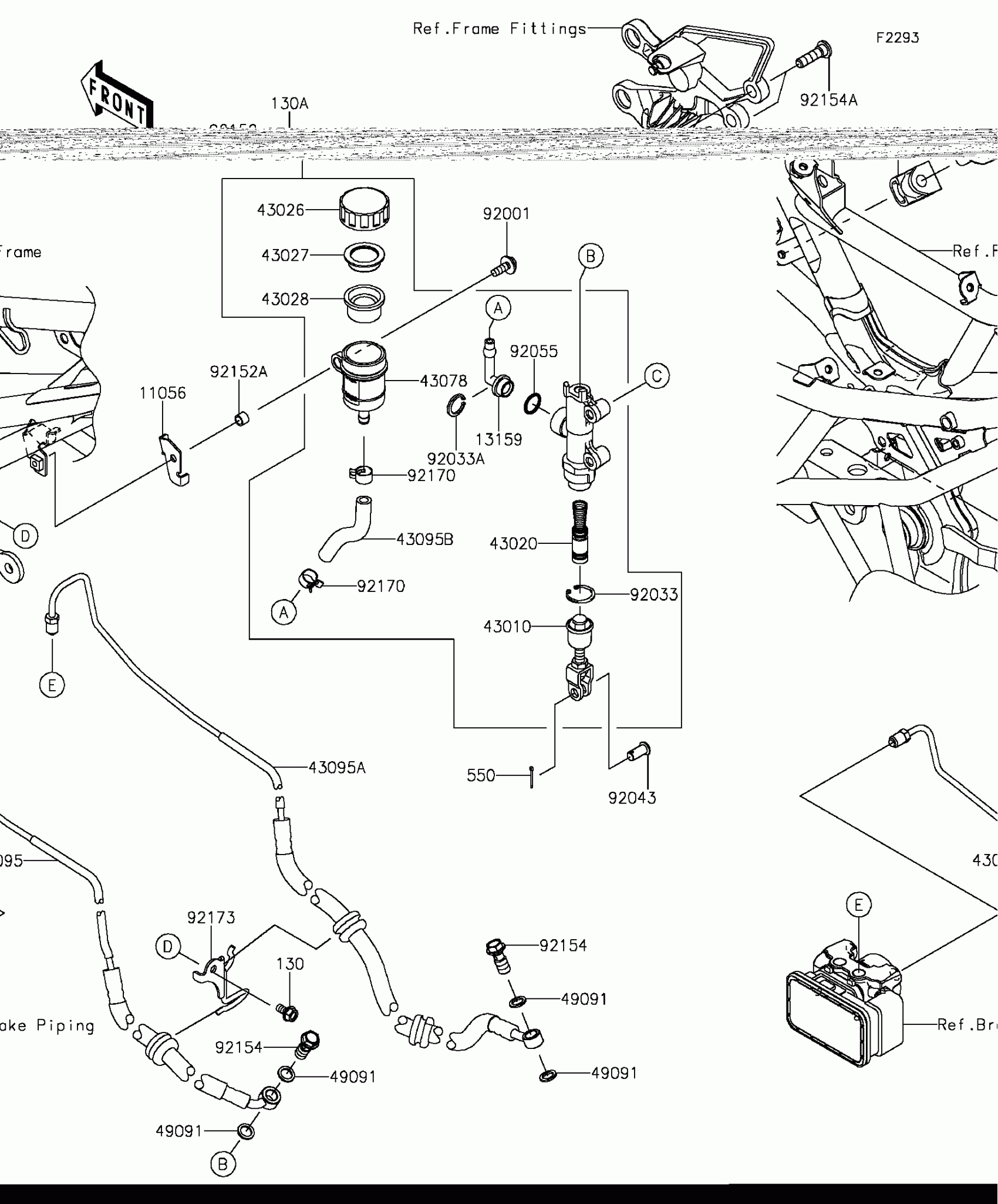

Find the part on the Rear Master Cylinder diagram for your 2014 Kawasaki Z250SL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Z250SL Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-4304

1

$3.31

In stock

13159

CONNECTOR

13159-1056

1

$11.16

In stock

43010

ROD-ASSY-BRAKE

43010-0014

1

$88.12

In stock

43015

1

$270.29

In stock

43020

PISTON-COMP-BRAKE

43020-1094

1

$59.90

In stock

43026

CAP-BRAKE

43026-0009

1

$38.22

In stock

43027

PLATE-DIAPHRAGM

43027-1053

1

$4.97

In stock

43028

DIAPHRAGM

43028-1065

1

$17.85

In stock

43078

RESERVOIR

43078-0060

1

$33.06

In stock

43095

1

$88.23

In stock

43095A

1

$100.71

In stock

43095B

HOSE-BRAKE,RR

43095-0801

1

$40.10

In stock

49091

1

$1.81

In stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92033

1

$6.19

In stock

92033A

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92043

PIN,8X17

92043-0104

1

$3.11

In stock

92055

RING-O,14.8X2.4

92055-0741

1

$2.95

In stock

92152

COLLAR

92152-0409

1

$17.44

In stock

92152A

COLLAR,7.1X9.5X7

92152-0561

1

$2.71

In stock

92154

BOLT,FLANGED,10X23

92154-0732

1

$4.01

In stock

92154A

BOLT,SOCKET,8X30

92154-0843

1

$3.74

In stock

92161

DAMPER,BRAKE PIPE

92161-0347

1

$4.75

In stock

92170

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92173

CLAMP

92173-1121

1

$8.31

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
