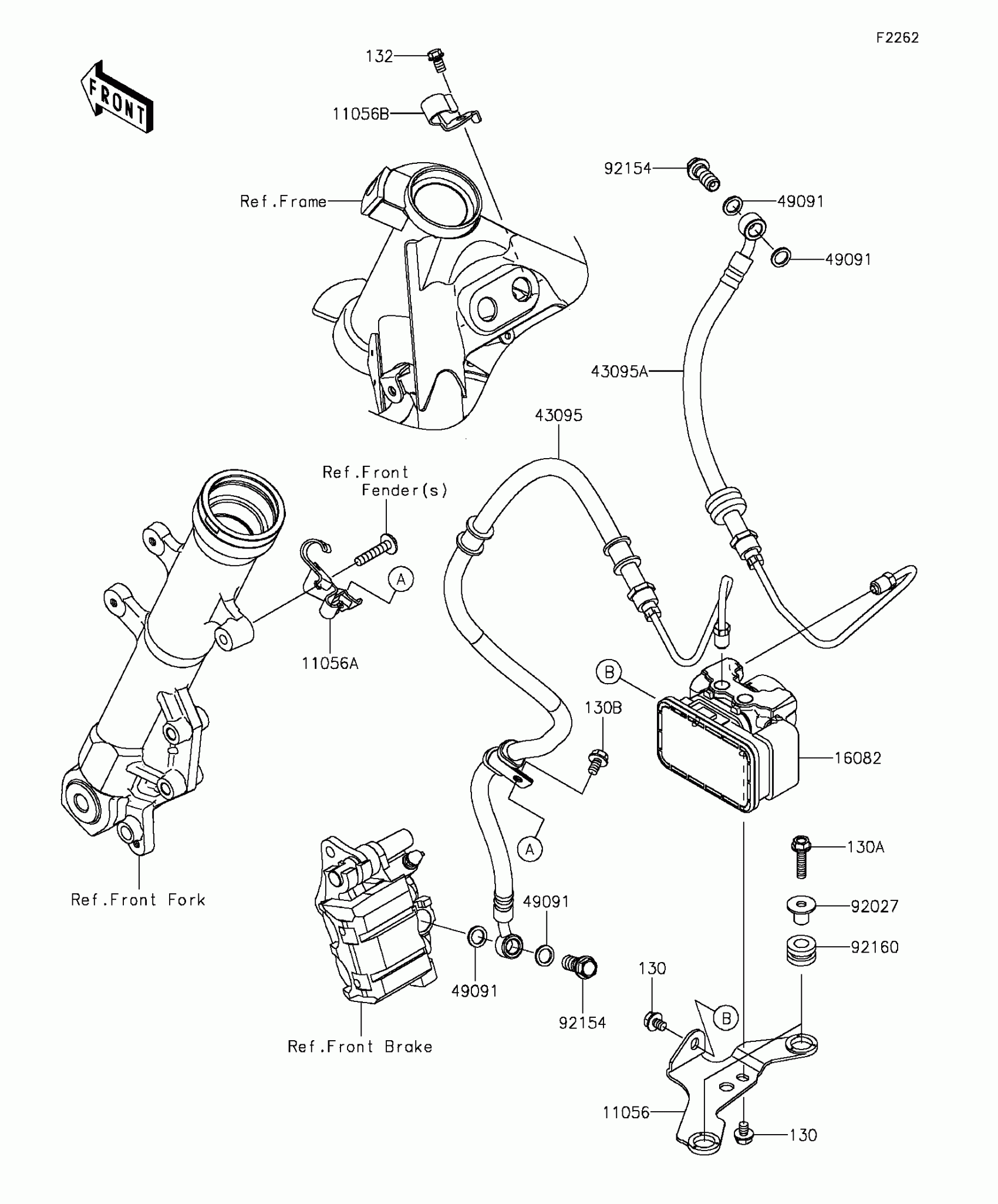

Kawasaki Z250SL Brake Piping Diagram

Description

Price

11056

BRACKET,ABS UNIT

11056-2561

$34.15

11056A

BRACKET,FR FENDER

11056-2623

$7.95

11056B

BRACKET,FRAME COMP

11056-4305

$5.15

16082

PUMP-ASSY-OIL,ABS,WET

16082-0733

$1,671.67

43095

HOSE-BRAKE,FR CYLINDER

43095-0794

$187.51

43095A

HOSE-BRAKE,FR M/CYLINDER

43095-0800

$171.28

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92154

BOLT,FLANGED,10X23

92154-0732

$3.85

92160

DAMPER,10X20X12

92160-1167

$3.57

130

BOLT-FLANGED,6X8

130BA0608

$0.69

130A

BOLT-FLANGED,6X25

130BA0625

$0.97

130B

BOLT-FLANGED,6X10

130BB0610

$1.77

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$1.77
