Description

Price

11060

GASKET,EXHAUST PIPE

11060-1203

$10.80

11061

GASKET,EXHAUST PIPE CONNECTING

11061-0432

$26.35

14041

COVER-COMP

14041-0570

$197.15

18091

BODY-COMP-MUFFLER

18091-0956

$642.17

39156

PAD

39156-1748

$14.32

39178

MANIFOLD-COMP-EXHAUST

39178-0213

$549.69

49106

COVER-MUFFLER,END

49106-0743

$75.51

92015

NUT,FLANGED,10MM

92015-1387

$4.31

92015A

NUT,8MM

92015-1432

$6.57

92071

GROMMET

92071-0727

$10.90

92150

BOLT,6X10

92150-1577

$3.60

92152

COLLAR,6.3X8.3X16

92152-0286

$5.65

92152A

COLLAR

92152-1682

$4.10

92152B

COLLAR

92152-1692

$9.73

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92154

BOLT,FLANGED,10X55

92154-0070

$3.90

92154A

BOLT,FLANGED,8X35

92154-1298

$1.71

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92161

DAMPER

92161-1475

$5.33

92161A

DAMPER

92161-1497

$3.35

92173

CLAMP,42MM

92173-0942

$14.02

92200

WASHER

92200-0904

$16.25

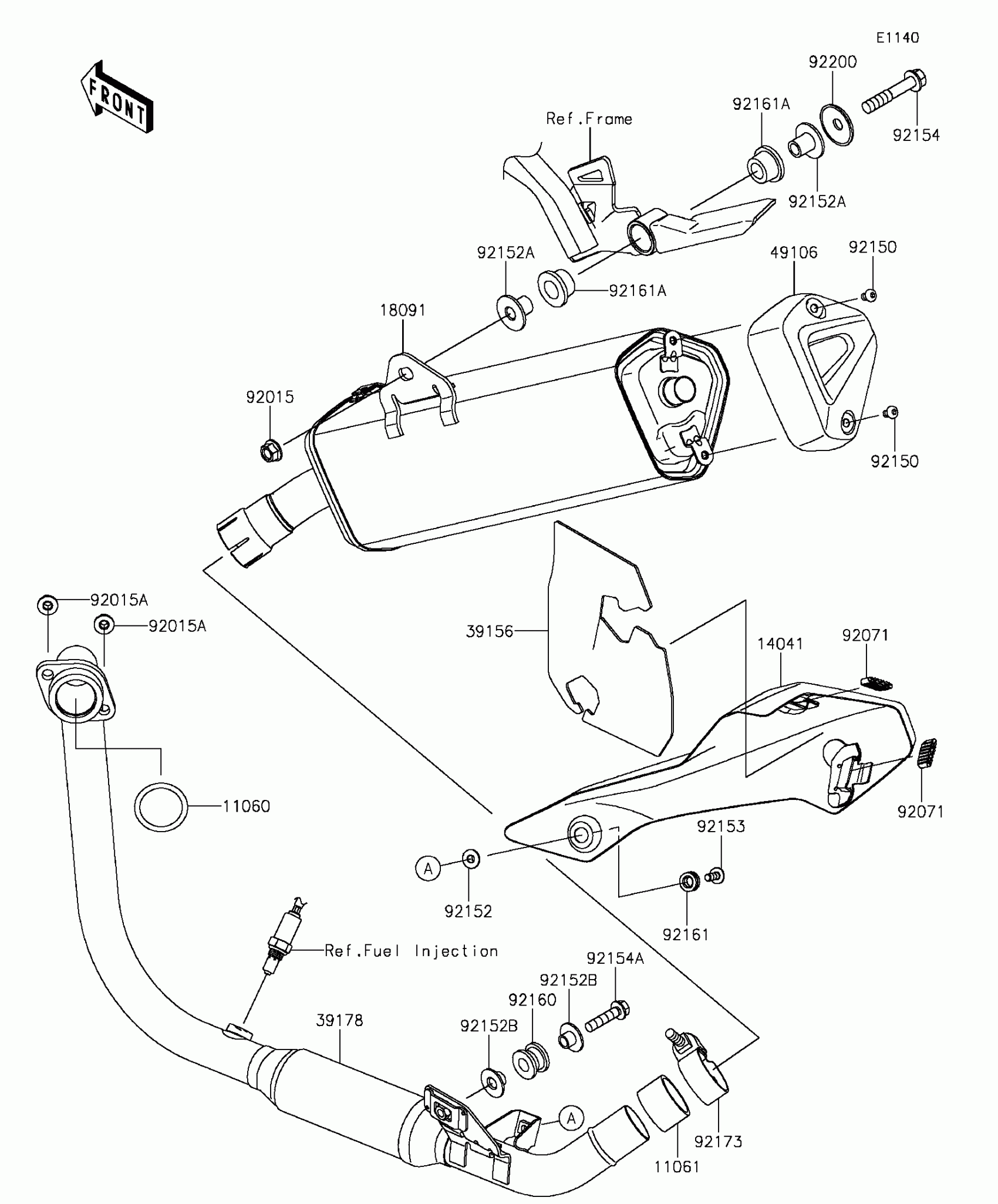

Kawasaki Z250SL Muffler(s) Diagram

GASKET,EXHAUST PIPE

GASKET,EXHAUST PIPE CONNECTING

COVER-COMP

BODY-COMP-MUFFLER

PAD

MANIFOLD-COMP-EXHAUST

COVER-MUFFLER,END

NUT,FLANGED,10MM

NUT,8MM

GROMMET

BOLT,6X10

COLLAR,6.3X8.3X16

COLLAR

COLLAR

BOLT,SOCKET,6X16

BOLT,FLANGED,10X55

BOLT,FLANGED,8X35

DAMPER,MUFFLER MOUNT

DAMPER

DAMPER

CLAMP,42MM

WASHER
