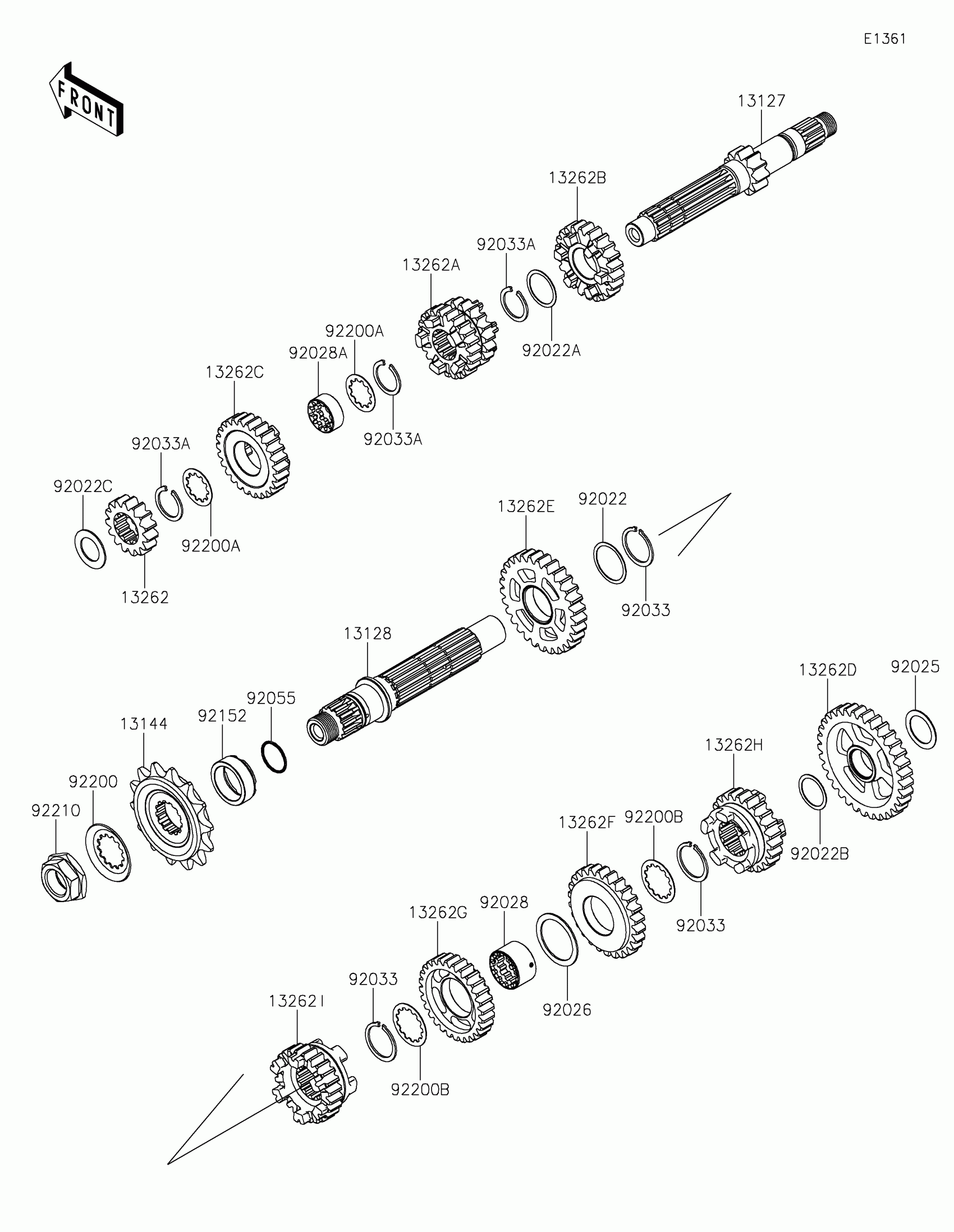

Kawasaki Z250SL (Indonesia Only) Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,11T

13127-0667

$219.24

13128

SHAFT-TRANSMISSION OUTPUT

13128-0692

Unavailable

13144

SPROCKET-OUTPUT,14T

13144-0577

$52.93

13262

GEAR,INPUT 2ND,15T

13262-0996

Unavailable

13262A

GEAR,INPUT 3RD&4TH,18T&23T

13262-0997

$160.56

13262B

GEAR,INPUT 5TH,22T

13262-0998

$122.61

13262C

GEAR,INPUT 6TH,26T

13262-0999

$128.41

13262D

GEAR,OUTPUT 1ST,33T

13262-1000

$74.23

13262E

GEAR,OUTPUT 2ND,29T

13262-1076

$128.41

13262F

GEAR,OUTPUT 3RD,26T

13262-1077

$128.41

13262G

GEAR,OUTPUT 4TH,28T

13262-1078

$68.51

13262H

GEAR,OUTPUT 5TH,23T

13262-1079

$128.41

13262I

GEAR,OUTPUT 6TH,24T

13262-1080

$122.61

92022

WASHER,25.3X30X0.5

92022-159

$8.58

92022A

WASHER,22.3X27X0.5

92022-198

$5.52

92022B

WASHER,20.5X25.5X0.5

92022-252

$6.22

92022C

WASHER,17.3X28X1

92022-255

$8.58

92025

SHIM,T=0.7

92025-1451

$2.80

92026

SPACER,30X38X1.0

92026-079

$8.86

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1822

$30.74

92028A

BUSHING,INPUT TOP GEAR

92028-1823

$24.53

92033

RING-SNAP,25MM

92033-1172

$5.08

92033A

RING-SNAP

92033-1293

$3.56

92055

RING-O,21.5X1.5

92055-0196

$4.45

92152

COLLAR

92152-1350

$26.84

92200

WASHER

92200-0851

$5.98

92200A

WASHER,INPUT

92200-1370

$4.13

92200B

WASHER,OUTPUT

92200-1371

$4.67

92210

NUT,20MM

92210-0850

$14.39
