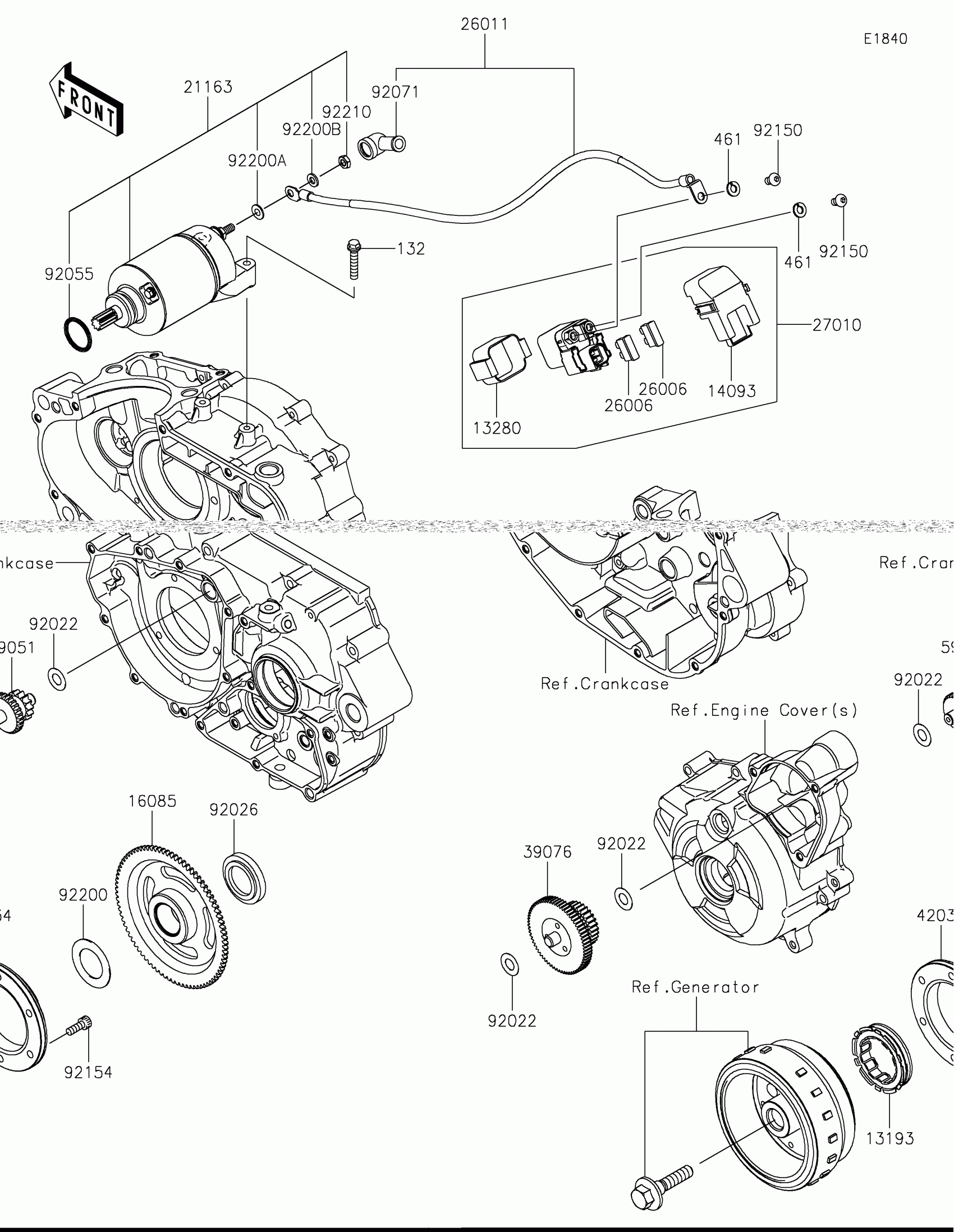

Kawasaki Z250SL (Indonesia Only) Starter Motor Diagram

Description

Price

13193

CLUTCH-ASSY-ONEWAY

13193-0007

$119.24

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$2.15

13280

HOLDER

13280-0710

$14.49

14093

COVER

14093-0199

$18.77

16085

GEAR

16085-0613

$197.27

21163

STARTER-ELECTRIC

21163-0739

$328.84

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD

26011-0890

$30.12

27010

SWITCH

27010-0754

$135.59

39076

LIMITER,STARTER IDLE GEAR

39076-0020

$183.19

42034

COUPLING

42034-0048

$117.33

461

WASHER-SPRING,6MM

461DB0600

$0.65

59051

GEAR-SPUR,IDLER

59051-0743

$96.87

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92026

SPACER

92026-0762

$20.92

92055

RING-O

92055-0822

$12.35

92071

GROMMET

92071-0024

$10.21

92150

BOLT,6X10

92150-1577

$3.60

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92200

WASHER,27.2X44X1

92200-0908

$6.24

92200A

WASHER

92200-1678

$3.56

92200B

WASHER

92200-1679

$1.48

92210

NUT,6MM

92210-0941

$3.94
