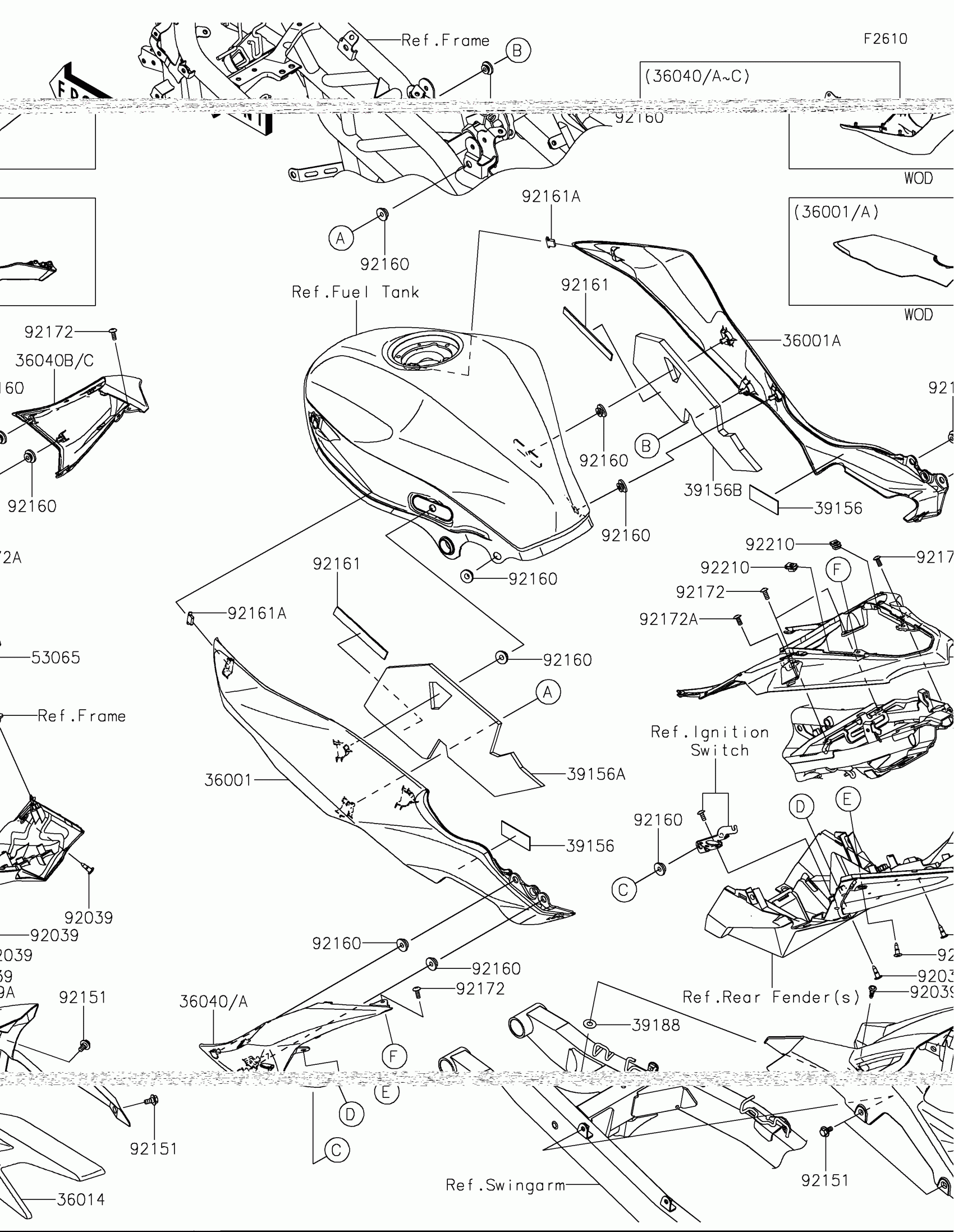

Kawasaki Z250SL (Indonesia Only) Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,EBONY

36001-0601-H8

$75.22

36001A

COVER-SIDE,RH,EBONY

36001-0602-H8

$75.22

36014

CASE-CHAIN

36014-0562

$41.06

36040

COVER-TAIL,LH,C.S.RED

36040-0140-34T

$64.83

36040A

COVER-TAIL,LH,M.G.GRAY

36040-0140-45W

$64.83

36040B

COVER-TAIL,RH,C.S.RED

36040-0141-34T

$64.83

36040C

COVER-TAIL,RH,M.G.GRAY

36040-0141-45W

$64.83

39156

PAD,25X60X1

39156-1861

$1.27

39156A

PAD,SIDE COVER,LH

39156-1950

$39.81

39156B

PAD,SIDE COVER,RH

39156-1951

$39.81

39188

TAPE,8X19

39188-0046

$2.24

53065

COVER SEAT

53065-0024

$27.40

92039

RIVET

92039-0707

$2.00

92039A

RIVET

92039-0709

$2.67

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,15X110X2

92161-1571

$2.26

92161A

DAMPER

92161-1626

$1.71

92172

SCREW

92172-0016

$2.26

92172A

SCREW,5X12

92172-0857

$0.63

92210

NUT,PLATE,5MM

92210-0262

$1.34
