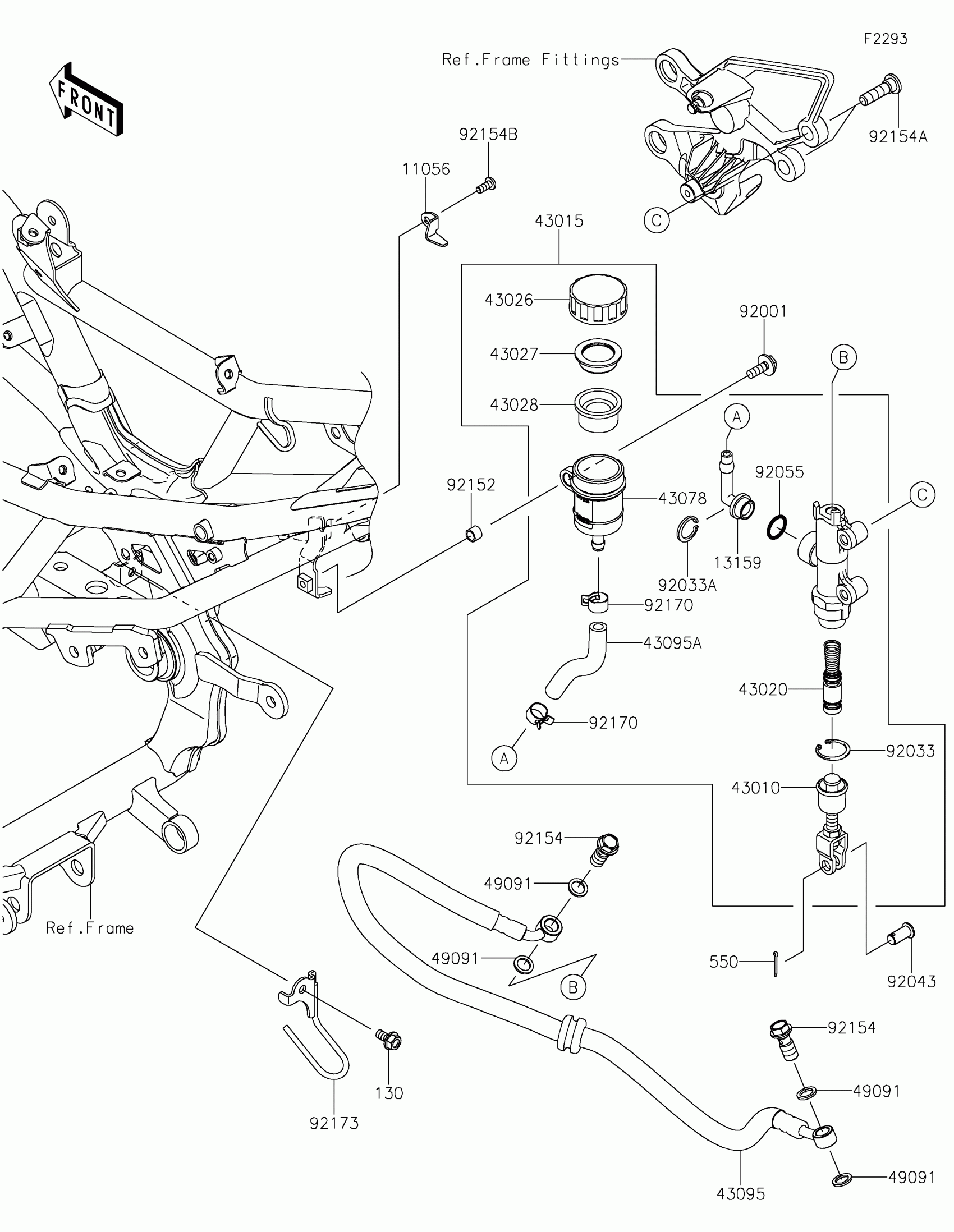

Kawasaki Z250SL (Indonesia Only) Rear Master Cylinder Diagram

Description

Price

11056

BRACKET

11056-7674

$1.47

130

BOLT-FLANGED,6X12

130BA0612

$1.25

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-0014

$88.12

43015

CYLINDER-ASSY-MASTER,RR

43015-0740

$270.29

43020

PISTON-COMP-BRAKE

43020-0027

$67.39

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR,666MM

43095-0792

$96.04

43095A

HOSE-BRAKE,RR

43095-1666

$40.10

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92001

BOLT,6X18

92001-1342

Unavailable

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,14.8X2.4

92055-0741

$2.82

92152

COLLAR,7.1X9.5X7

92152-0561

$2.34

92154

BOLT,FLANGED,10X23

92154-0732

$3.85

92154A

BOLT,SOCKET,8X30

92154-0843

$3.59

92154B

BOLT,SOCKET,5X12

92154-1868

$1.14

92170

CLAMP,HOSE

92170-1091

$3.81

92173

CLAMP

92173-1117

$8.39
