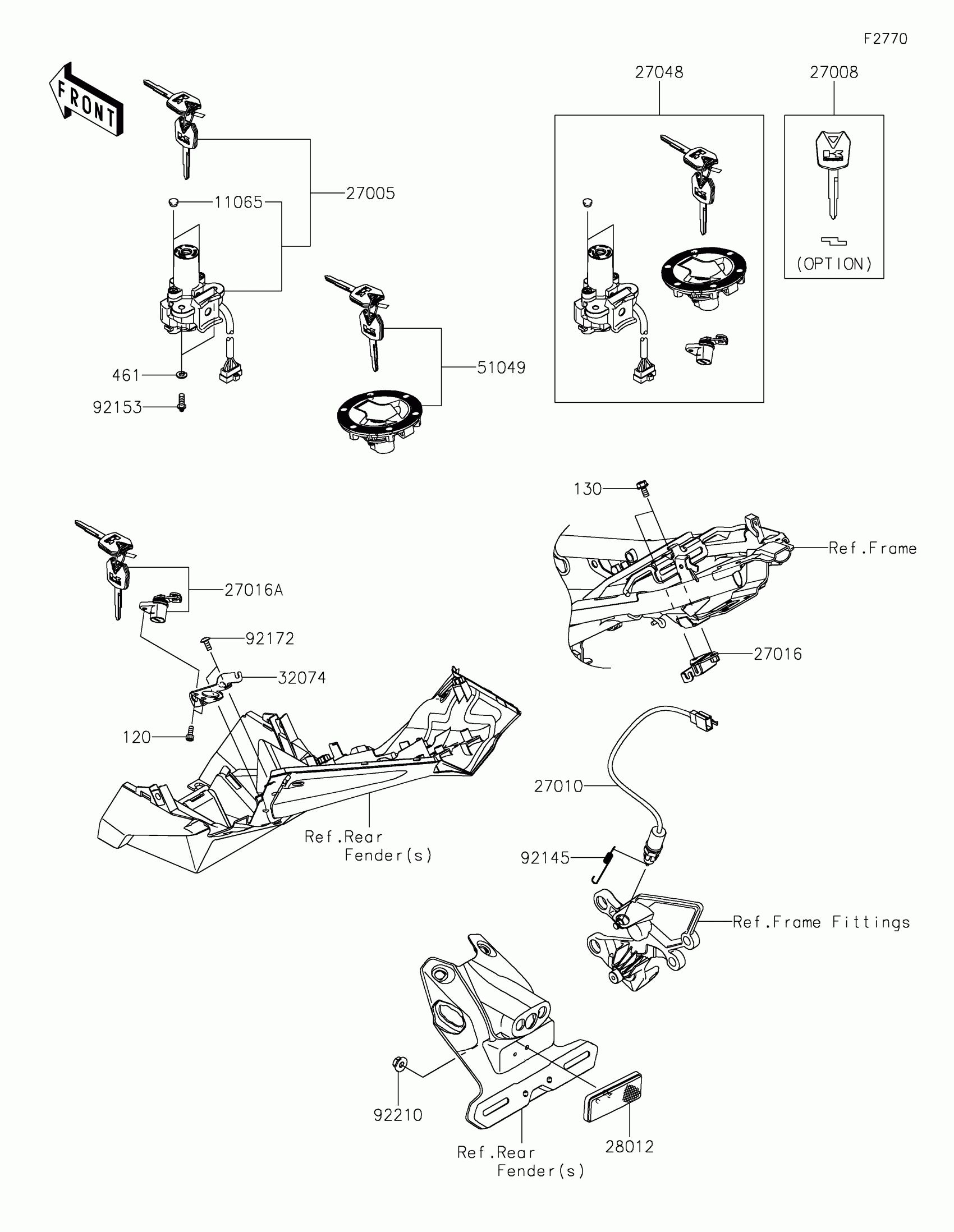

Kawasaki Z250SL (Indonesia Only) Ignition Switch Diagram

Description

Price

11065

CAP,IGNITION SWITCH

11065-0708

$4.37

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X12

130BA0612

$1.72

27005

SWITCH-ASSY-IGNITION

27005-5157

$186.63

27008

KEY-LOCK,BLANK

27008-0053

$21.22

27010

SWITCH,RR BRAKE

27010-0758

$46.80

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.90

27016A

LOCK-ASSY,SEAT

27016-5353

$103.85

27048

SWITCH-ASSY

27048-5069

$443.73

28012

REFLECTOR-REFLEX

28012-1077

$23.25

32074

BRACKET-LOCK

32074-0019

$2.75

461

WASHER-SPRING,6MM

461DA0600

$0.71

51049

CAP-TANK,FUEL

51049-5009

$187.02

92145

SPRING

92145-0989

$2.99

92153

BOLT,TORX,6X16

92153-0967

$2.61

92172

SCREW,5X12

92172-0857

$0.63

92210

NUT,FLANGED,5MM

92210-0007

$2.70
