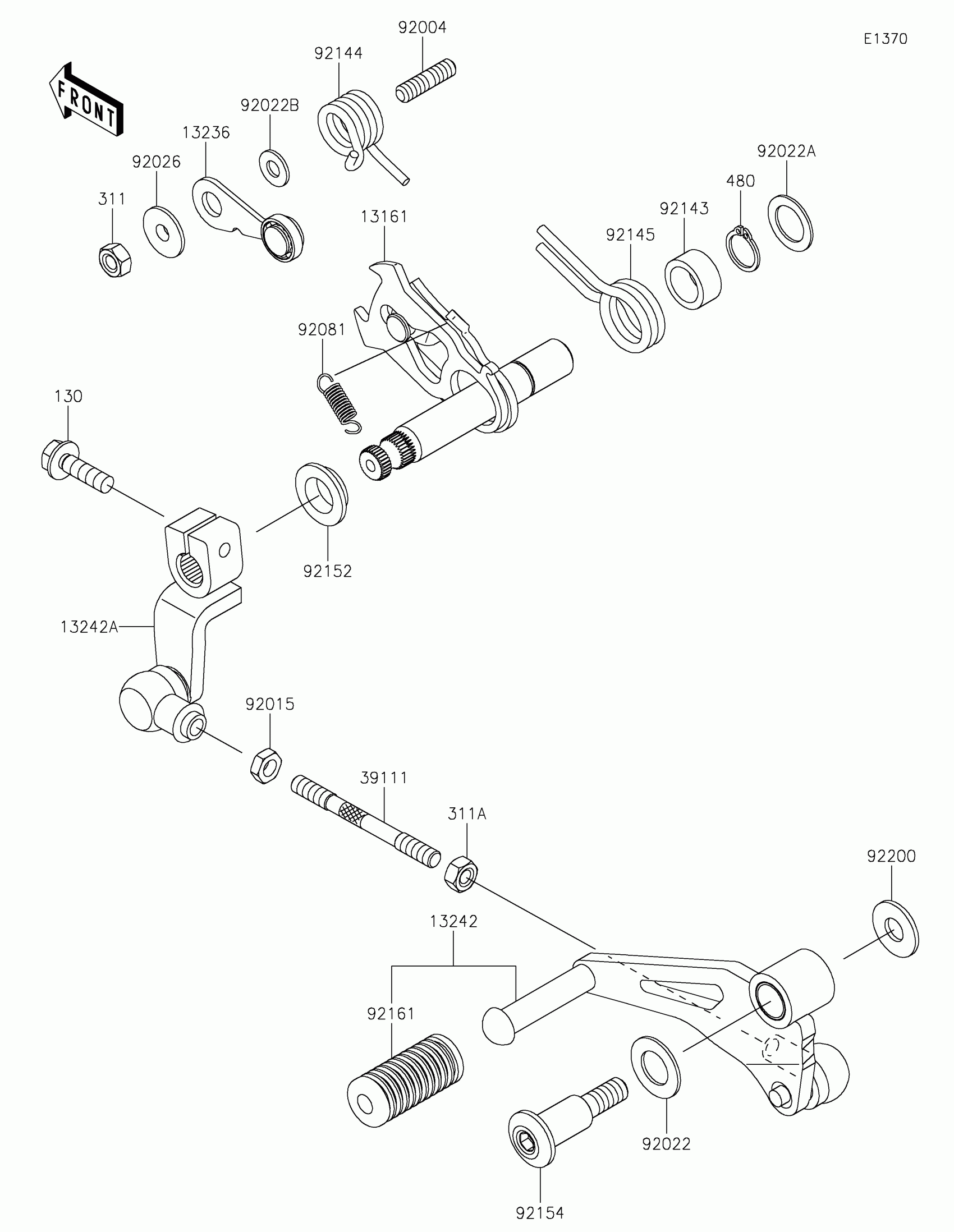

Kawasaki Z250SL (Indonesia Only) Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CC0620

$1.71

13161

LEVER-COMP-CHANGE SHAFT

13161-0573

$69.08

13236

LEVER-COMP,POSITION

13236-0170

$9.31

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0106

Unavailable

13242A

LEVER-ASSY-CHANGE

13242-0161

$36.79

311

NUT-HEX,6MM

311BA0600

$2.23

311A

NUT-HEX,6MM

311BB0600

$1.04

39111

ROD-TIE

39111-0320

$13.60

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

92004

STUD,6X12

92004-0032

$1.79

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,13.3X20X1

92022-1496

$3.92

92022B

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92143

COLLAR

92143-1148

$4.69

92144

SPRING

92144-1695

$7.60

92145

SPRING,RETURN

92145-0973

$8.64

92152

COLLAR

92152-1794

$3.67

92154

BOLT

92154-1305

$9.93

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18

92200

WASHER,8.5X20X1.6

92200-0490

$3.29
