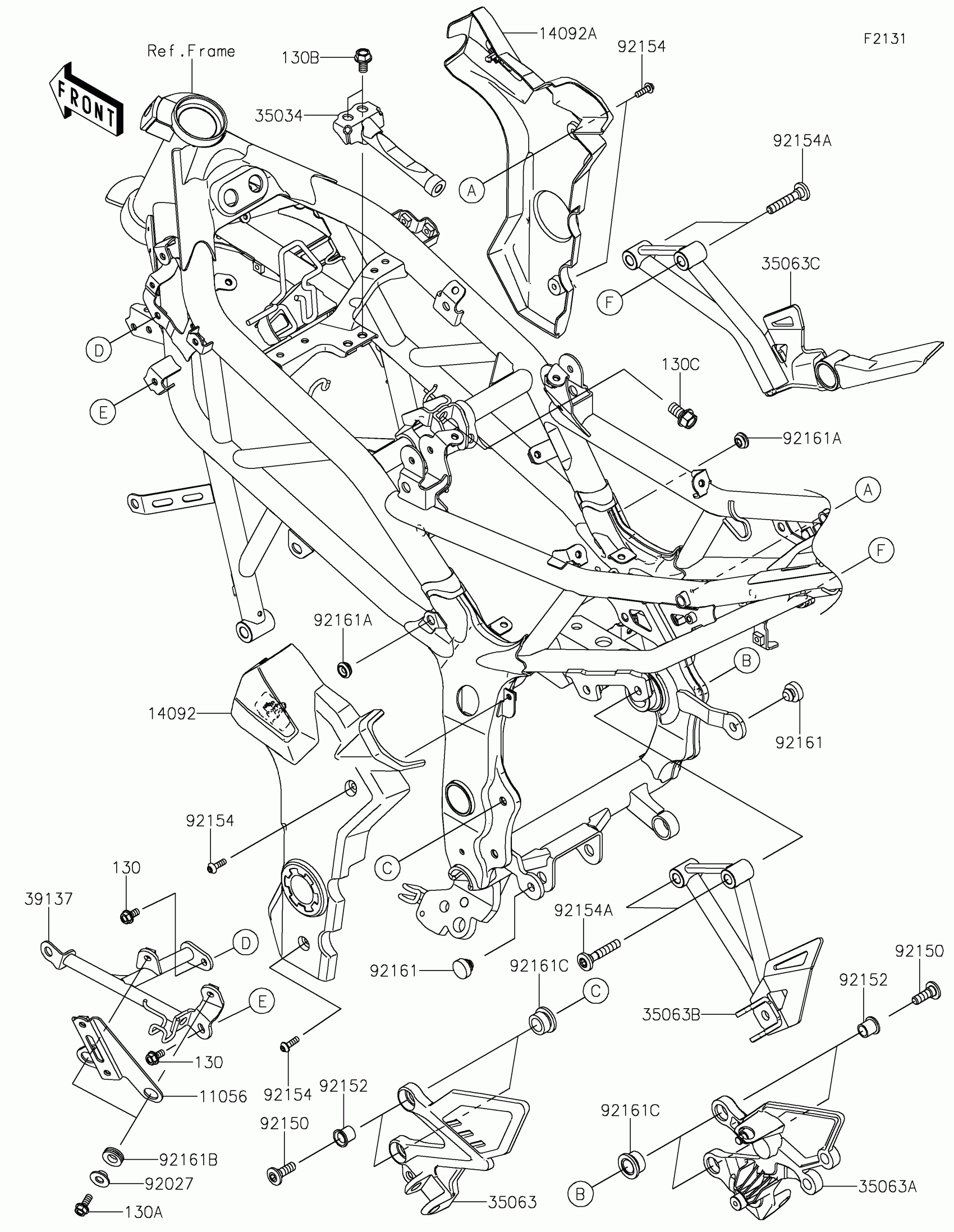

Kawasaki Z250SL (Indonesia Only) Frame Fittings Diagram

Description

Price

11056

BRACKET,REGULATOR

11056-2735

$8.11

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,8X14

130BA0814

$2.16

130C

BOLT-FLANGED,10X18

130BA1018

$2.49

14092

COVER,PIVOT,LH

14092-1113

$16.20

14092A

COVER,PIVOT,RH

14092-1114

Unavailable

35034

REINFORCE

35034-0591

$17.52

35063

STAY,STEP,LH

35063-0923

$110.80

35063A

STAY,STEP,RH

35063-0924

$110.80

35063B

STAY,LH,F.M.GRAY

35063-1319-26M

$78.03

35063C

STAY,RH,F.M.GRAY

35063-1320-26M

$108.76

39137

STAY-COMP

39137-0587

$48.80

92027

COLLAR

92027-153

$6.22

92150

BOLT,8X25

92150-1845

$7.68

92152

COLLAR,10.6X13.8X14.5

92152-1771

$8.08

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,8X44

92154-1829

$7.37

92161

DAMPER

92161-0046

$9.43

92161A

DAMPER

92161-0631

$7.37

92161B

DAMPER,10X20X6

92161-1592

$7.32

92161C

DAMPER,14X26X17.5

92161-1651

$1.19
