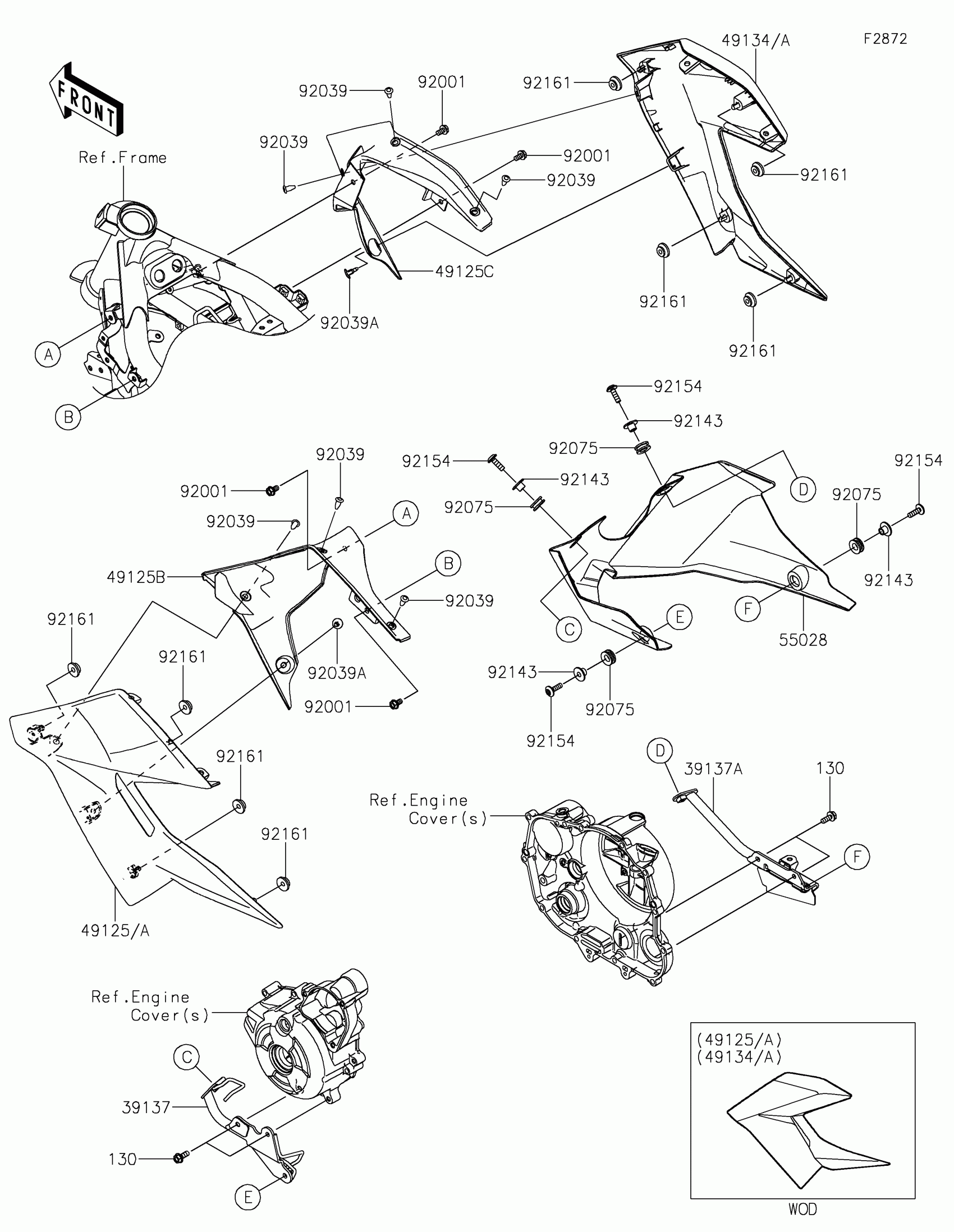

Kawasaki Z250SL (Indonesia Only) Cowling Lowers Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$1.49

39137

STAY-COMP,LWR COWL.,LH

39137-0585

$86.02

39137A

STAY-COMP,LWR COWL.,RH

39137-0586

$86.02

49125

SHROUD,OUTER,LH,C.S.RED

49125-0578-34T

$174.29

49125A

SHROUD,OUTER,LH,M.G.GRAY

49125-0578-45W

$174.29

49125B

SHROUD,INNER,LH

49125-0580

$39.90

49125C

SHROUD,INNER,RH

49125-0581

$39.90

49134

SHROUD,OUTER,RH,C.S.RED

49134-0003-34T

$174.29

49134A

SHROUD,OUTER,RH,M.G.GRAY

49134-0003-45W

$174.29

55028

COWLING,LWR,EBONY

55028-0500-H8

$166.21

92001

BOLT,W/WASHER,6X12

92001-1516

$4.42

92039

RIVET

92039-0060

$2.34

92039A

RIVET

92039-0062

$2.71

92075

DAMPER

92075-1634

$3.57

92143

COLLAR,L=9.6

92143-1016

$4.67

92154

BOLT,SOCKET,6X20

92154-0918

$4.71

92161

DAMPER

92161-1531

$2.11
