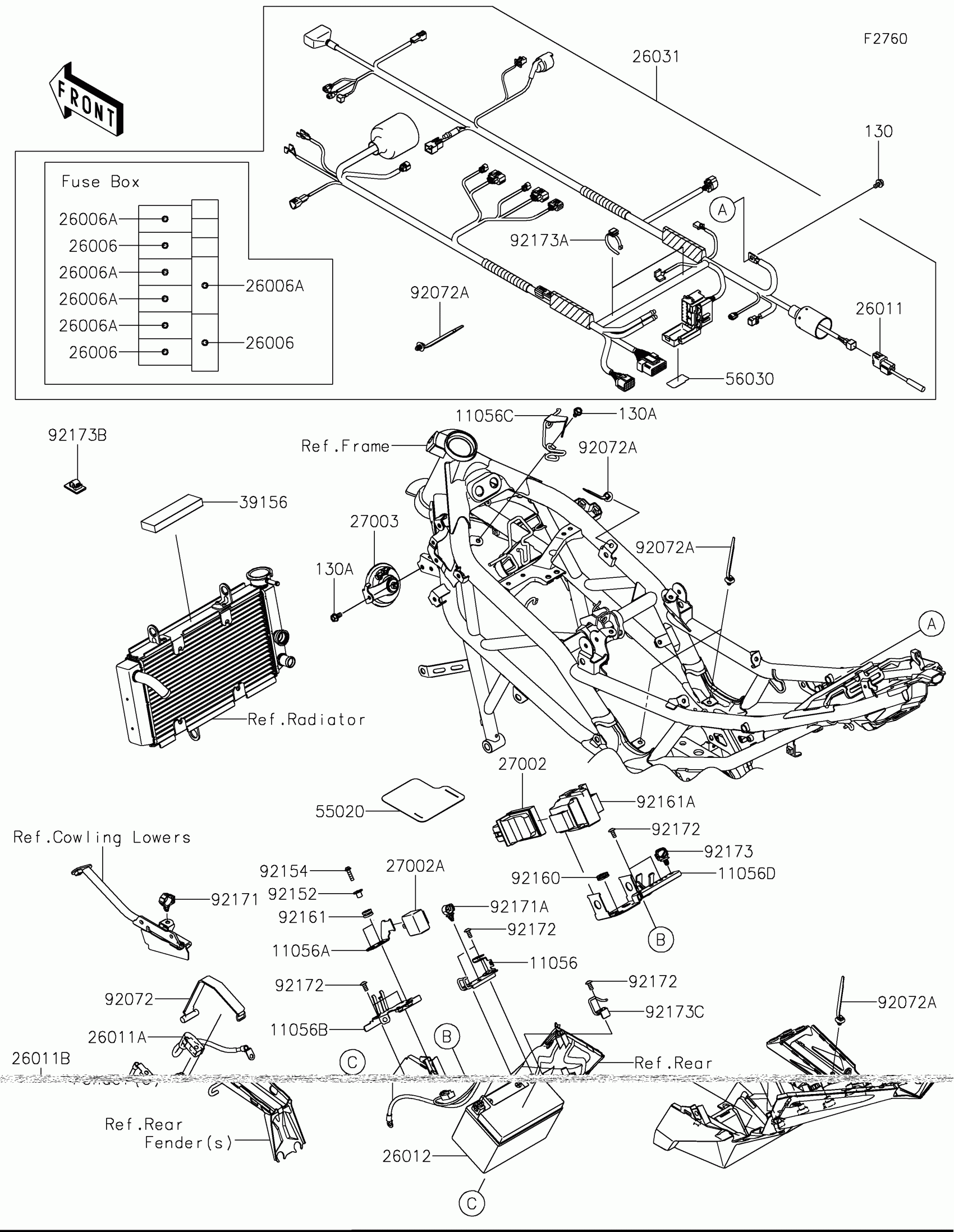

Kawasaki Z250SL (Indonesia Only) Chassis Electrical Equipment Diagram

Description

Price

11056

BRACKET,DIAG

11056-2695

$10.84

11056A

BRACKET,RELAY

11056-2810

$2.85

11056B

BRACKET,FUSE BOX

11056-4342

$5.68

11056C

BRACKET,ACG

11056-4437

$5.68

11056D

BRACKET,ECU

11056-7058

$18.57

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,DIAG

26011-0858

$31.99

26011A

WIRE-LEAD,BATTERY(+)

26011-0891

$45.43

26011B

WIRE-LEAD,BATTERY(-)

26011-0915

$39.44

26012

BATTERY,YTX9-BS,12V 8AH

26012-0873

$196.32

26031

HARNESS,MAIN

26031-2260

$925.24

27002

RELAY-ASSY

27002-0019

Unavailable

27002A

RELAY-ASSY,TURN SIGNAL

27002-0020

$34.63

27003

HORN

27003-0099

$85.04

39156

PAD,RADIATOR TOP

39156-1834

$7.43

55020

GUARD

55020-1857

$6.68

56030

LABEL,FUSE BOX1

56030-0837

$3.89

92072

BAND

92072-0749

$18.95

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92152

COLLAR

92152-1592

$3.02

92154

BOLT,SOCKET,5X20

92154-0829

$2.67

92160

DAMPER

92160-1278

$4.39

92161

DAMPER

92161-0056

$3.44

92161A

DAMPER

92161-1564

$11.10

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,13MM DIA.

92171-1415

$2.03

92172

SCREW,5X12

92172-0857

$0.63

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0791

$11.16

92173B

CLAMP

92173-1061

$5.05

92173C

CLAMP,TAIL LAMP

92173-1182

$5.28
