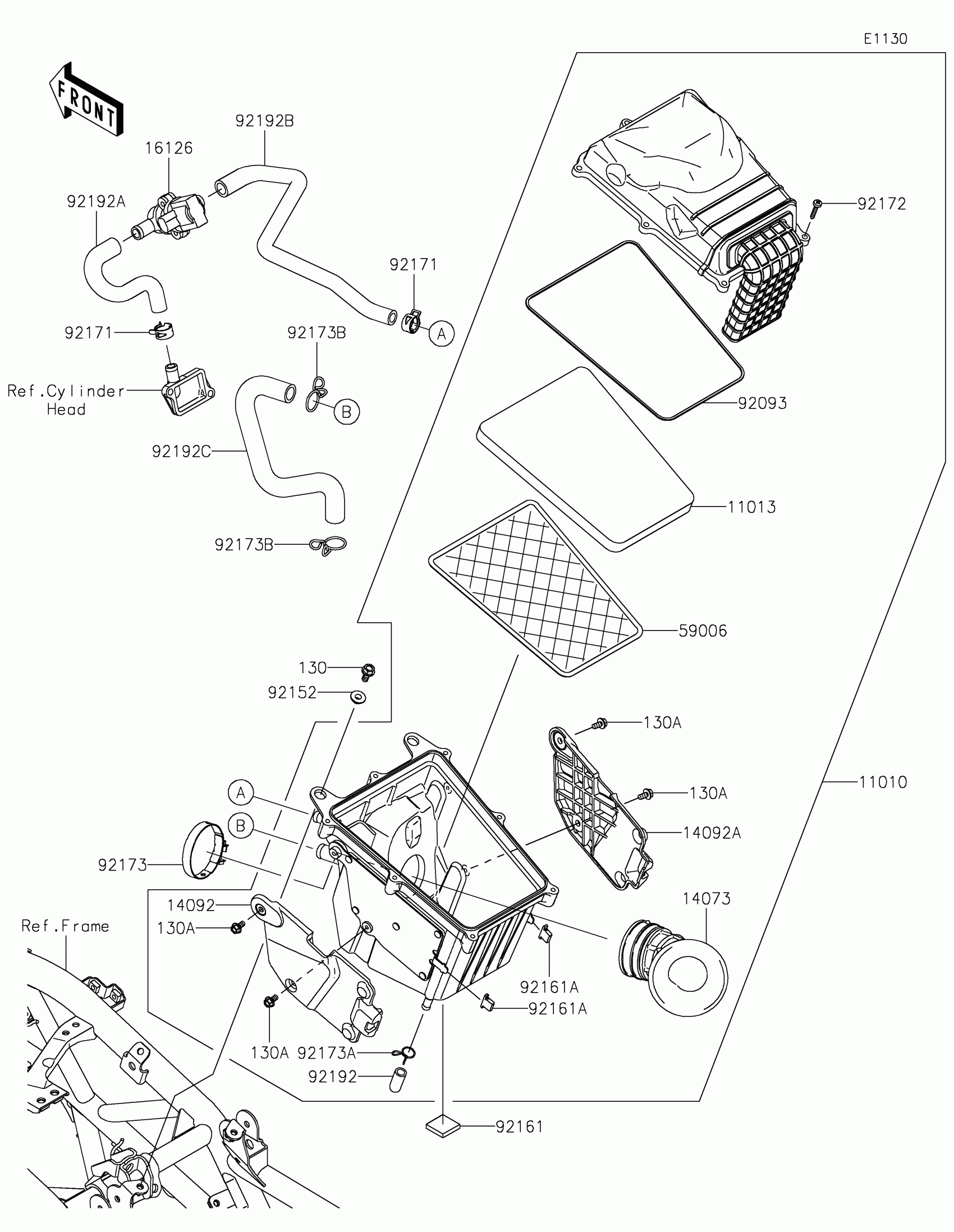

Kawasaki Z250SL (Indonesia Only) Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0773

$194.64

11013

ELEMENT-AIR FILTER

11013-0739

Unavailable

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,5X10

130BB0510

$4.72

14073

DUCT,THROTTLE BODY

14073-0776

$50.29

14092

COVER,LH

14092-1146

$16.05

14092A

COVER,RH

14092-1147

$19.65

16126

VALVE,AIR SWITCHING

16126-0718

$112.99

59006

ARRESTER-FLAME

59006-0016

$46.80

92093

SEAL

92093-0603

$26.91

92152

COLLAR

92152-1864

$5.69

92161

DAMPER,25X25X5

92161-1596

$2.78

92161A

DAMPER

92161-1626

$1.71

92171

CLAMP

92171-1888

$3.19

92172

SCREW,TAPPING,5X25

92172-0851

$7.60

92173

CLAMP,58MM

92173-0927

$14.34

92173A

CLAMP,11.6MM

92173-1107

$5.69

92173B

CLAMP,20MM

92173-1188

$4.18

92192

TUBE,DRAIN

92192-1292

$6.46

92192A

TUBE,CAP-ASWV

92192-1293

$22.95

92192B

TUBE,ASWV-AIR CLEANER

92192-1294

$28.56

92192C

TUBE,BREATHER

92192-1295

$8.15
