2014 Kawasaki Z250SL Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2014 Kawasaki Z250SL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

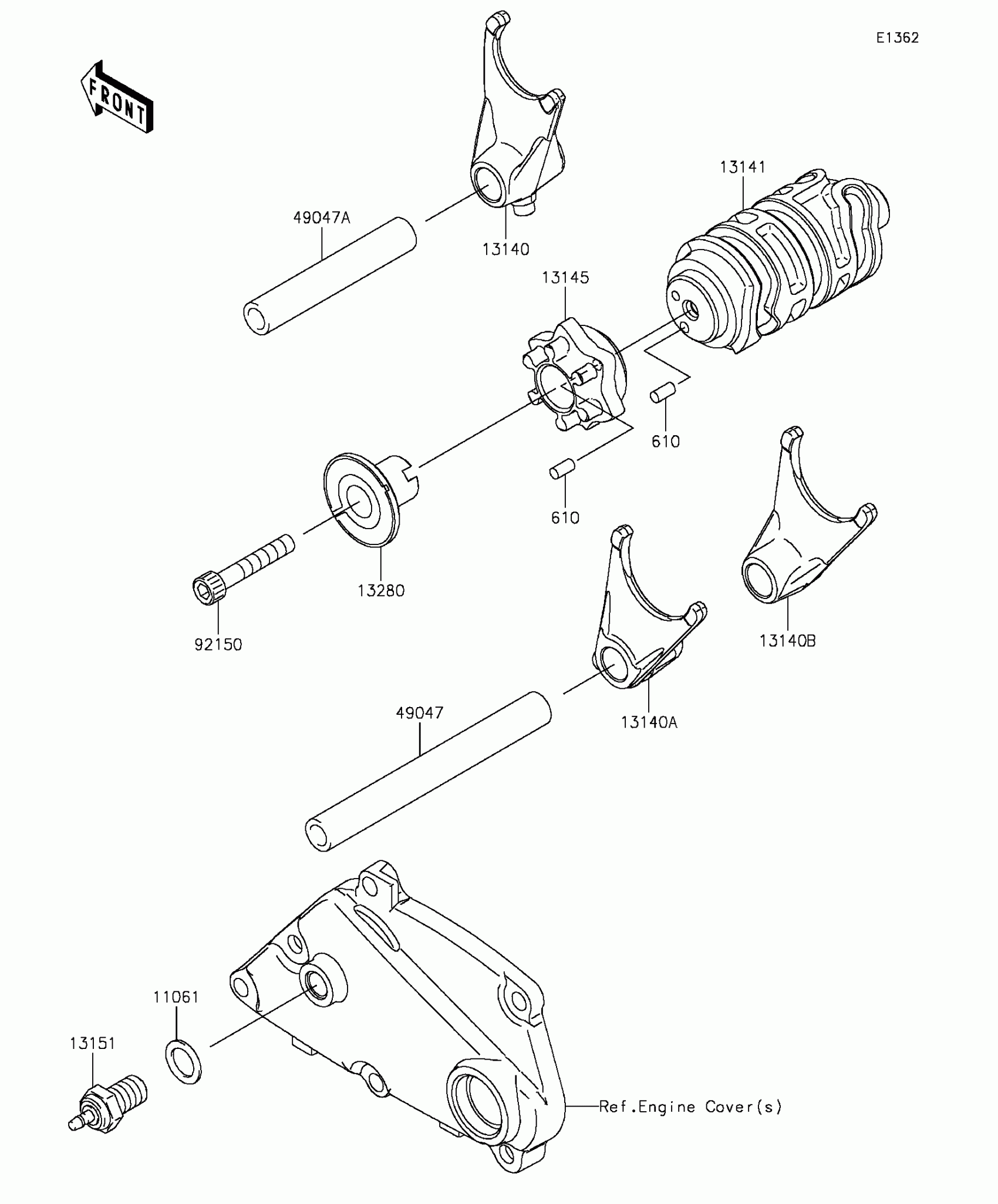

2014 Kawasaki Z250SL Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10.5X16X1

11061-0373

1
Out of stock

13140

FORK-SHIFT,5TH&6TH

13140-0632

1
Out of stock

13140A

FORK-SHIFT,2ND&4TH

13140-0633

1
Out of stock

13140B

FORK-SHIFT,1ST&3RD

13140-0634

1
Out of stock

13141

DRUM-CHANGE

13141-0578

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0559

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1102

1
Out of stock

13280

HOLDER,CHANGE DRUM

13280-0769

1

$31.47

In stock

49047

ROD-SHIFT,L=106.7

49047-1056

1
Out of stock

49047A

ROD-SHIFT,L=71.7

49047-1057

1
Out of stock

92150

BOLT,SOCKET,6X35

92150-1484

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
