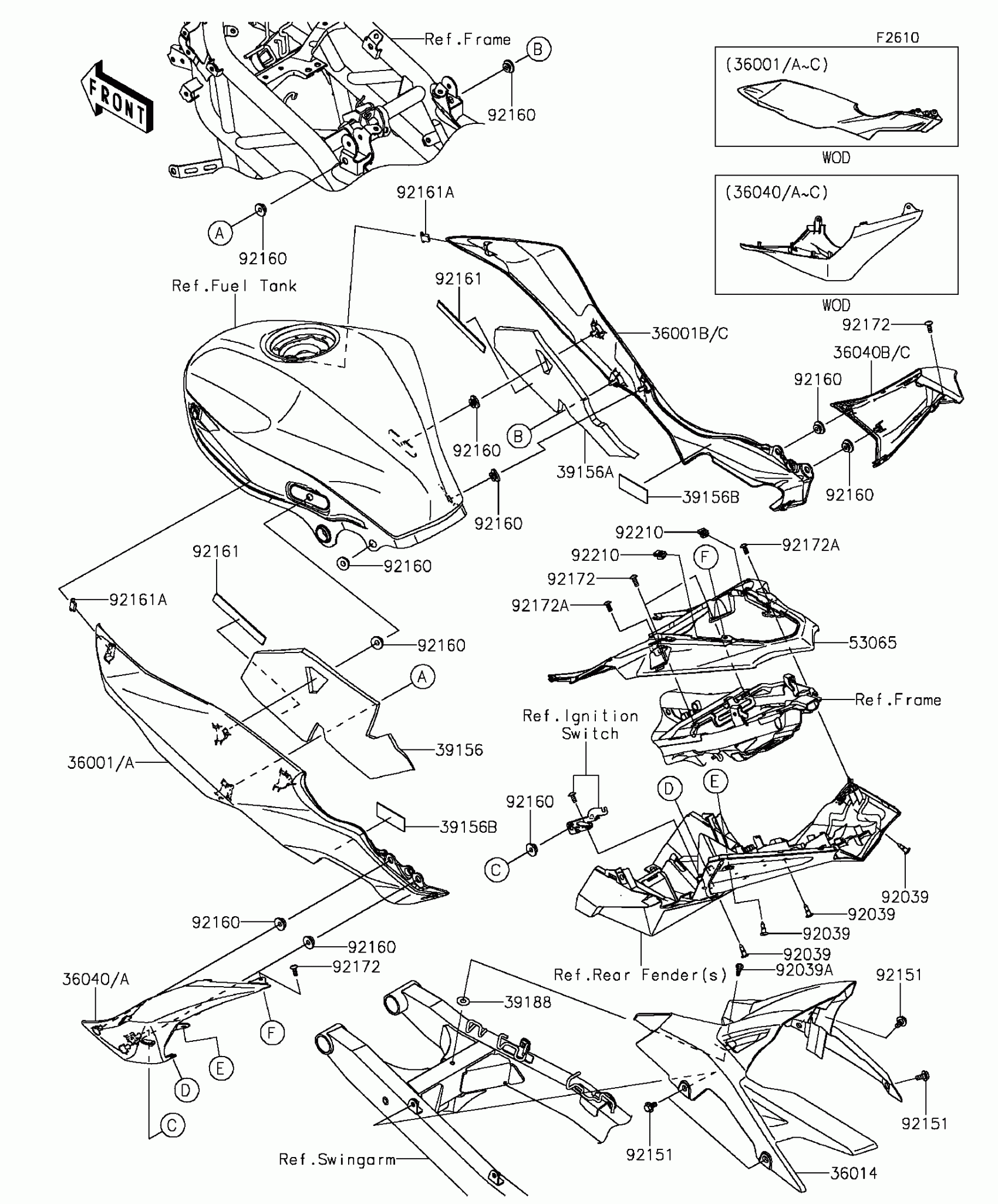

Kawasaki Z250SL Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,EBONY

36001-0601-20A

$77.36

36001A

COVER-SIDE,LH,F.EBONY

36001-0601-45L

$77.36

36001B

COVER-SIDE,RH,EBONY

36001-0602-20A

$77.36

36001C

COVER-SIDE,RH,F.EBONY

36001-0602-45L

$77.36

36014

CASE-CHAIN

36014-0562

$41.85

36040

COVER-TAIL,LH,EBONY

36040-0140-20A

$66.06

36040A

COVER-TAIL,LH,C.L.GREEN

36040-0140-21Q

$66.06

36040B

COVER-TAIL,RH,EBONY

36040-0141-20A

$66.06

36040C

COVER-TAIL,RH,C.L.GREEN

36040-0141-21Q

$66.06

39156

PAD,SIDE COVER,LH

39156-1743

$40.57

39156A

PAD,SIDE COVER,RH

39156-1744

$40.57

39156B

PAD,25X60X1

39156-1861

$1.17

39188

TAPE,8X19

39188-0046

$1.86

53065

COVER SEAT

53065-0024

$25.73

92039

RIVET

92039-0707

$1.46

92039A

RIVET

92039-0709

$1.89

92151

BOLT,FLANGED,6X13

92151-1703

$3.01

92160

DAMPER

92160-1613

$2.84

92161

DAMPER,15X110X2

92161-1571

$1.88

92161A

DAMPER

92161-1626

$1.47

92172

SCREW

92172-0016

$1.88

92172A

SCREW,5X12

92172-0857

$0.69

92210

NUT,PLATE,5MM

92210-0262

$1.04
